NHP 5500 2nd Generation
Max. Spindle Speed
10000 r/min
X-Axis Travel Distance
800 mm
Y-Axis Travel Distance
750 mm

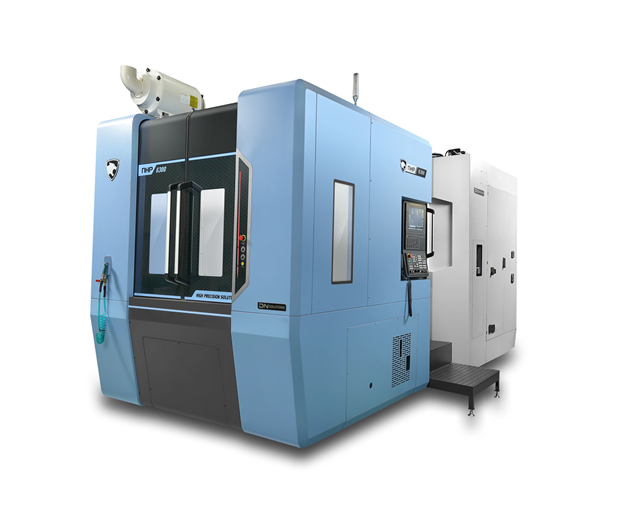

NHP series

High Productivity Horizontal Machining Center

NHP series machines are productive, efficient and cost-effective. With their compact size and featuring high performance linear guideways and powerful spindles NHP machines deliver high material removal rates - day in …day out.

Reliability
Excellent Machining Capability
High Precision
Stability

Highlights

￿ Highly-rigid, step-guide bed structure￿

The main body has a double-wall structure that prevents coolant leakage and is easy to maintain.

The step-guide bed structure supporting the column has a rigid configuration…leading to improved accuracies and more efficient and effective machining.

￿ High Productivity and Reliability￿

All axes are equipped with roller-type LM Guideways

Servo-driven Automatic Tool Changer (ATC) and Automatic Pallet Changer (APC)

￿ Pallet Extension System￿

Linear Pallet System (LPS)

Multi-Pallet System (MPS)

￿

Product Specifications

  • These specifications are based on the global standard and may differ by region.
TRAVELS
X-Axis Travel Distance Y-Axis Travel Distance Z-Axis Travel Distance
FEED RATES
X-Axis Rapid Traverse Y-Axis Rapid Traverse Z-Axis Rapid Traverse
MAIN SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque Tool Taper
TABLE
Pallet Size Maximum Workpiece weight
TOOL STORAGE CAPACITY
No. of tool station
DIMENSIONS
Length Height Width Weight
NHP 4000
560 mm 640 mm 660 mm
60 m/min 60 m/min 60 m/min
15000 r/min 30/18.5 {37/22} kW 230 {303} N·m ISO #40
400 mm 400 kg
40 ea
4950 mm 2690 mm 2300 mm 9700 kg
NHP 5000
730 mm 730 mm 880 mm
60 m/min 60 m/min 60 m/min
15000 {20000} r/min 30/18.5 {37/22} kW 230 {303} N·m ISO #40
500x500 mm 500 kg
40 ea
5450 mm 2880 mm 2680 mm 11500 kg
NHP 5000S
730 mm 730 mm 880 mm
60 m/min 60 m/min 60 m/min
15000 {20000} r/min 30/18.5 {37/22} kW 229.9 {303} N·m ISO #40
500x600 mm 500 kg
40 ea
4580 mm 2930 mm 2680 mm 11500 kg
NHP 5500 2nd Generation
800 mm 750 mm 900 mm
60 m/min 60 m/min 60 m/min
10000 {15000} r/min 37/26 kW 516 {644} N·m ISO #50
500x500 mm 800 kg
40 ea
6389 mm 3199 mm 3375 mm 14000 kg
NHP 6300
1050 mm 900 mm 1000 mm
60 m/min 60 m/min 60 m/min
10000 {15000} r/min 30 kW 600 {809} N·m ISO #50
630x630 mm 1500 kg
40 ea
6520 mm 3495 mm 3930 mm 18000 kg
NHP 8000
1400 mm 1200 mm 1370 mm
50 m/min 50 m/min 50 m/min
10000 {15000} r/min 45/25 {55/30} kW 600 {809} N·m ISO #50
800 mm 2000 kg
40 ea
7878 mm 3803 mm 4375 mm 27000 kg
