SMX5100LSB
Chuck size
21 inch
Max. Turning Diameter
830 mm
Max. Turning Length
3050 mm

SMX series

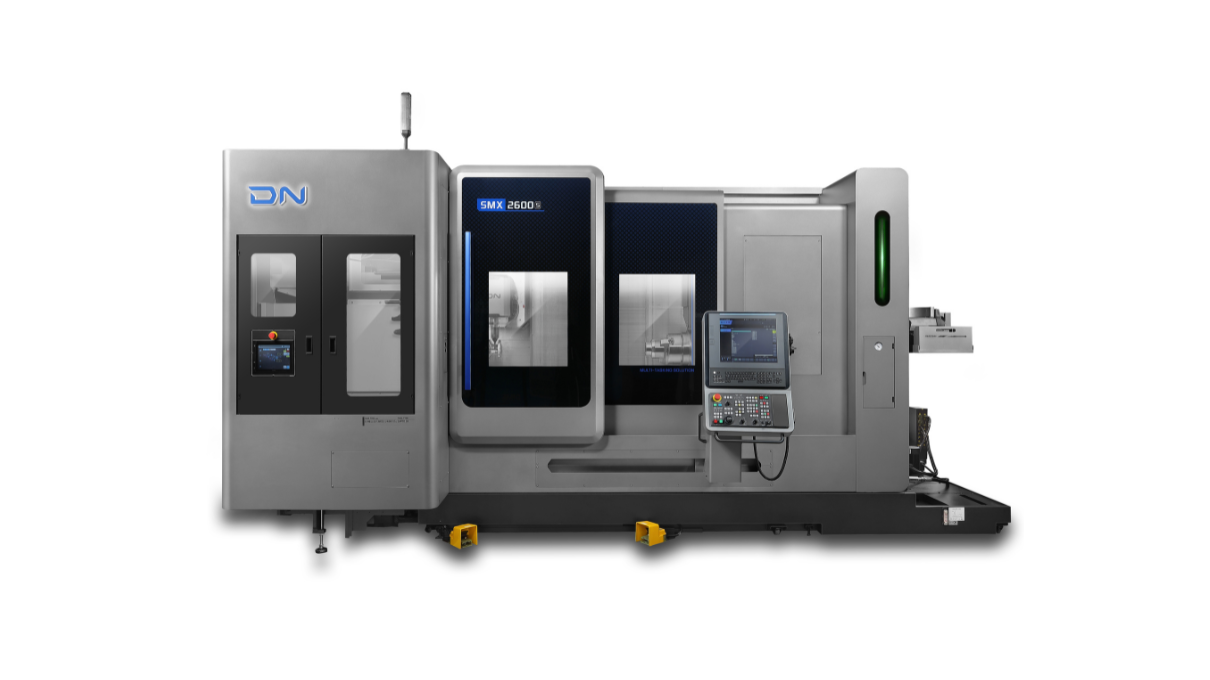

High Performance Multi-axis Mill Turn Machine

With a total of nine axes on the SMX Series,
there is essentially no limit to what you can create. SMX machines are equipped with larger chuck sizes than PUMA MX machines but deliver the same high performance and impressive flexibility. These machines make all the difference.

High Precision
Multitasking Capability
Faster Machining
Shorter Setting Time

Highlights

￿ Powerful multi-tasking capacity for higher productivity￿

Even higher multi-tasking capability is available from SMX machines through the combination of the left and right spindles, the B-axis milling function and a lower turret ideal- making the machines ideal for complex, high-precision machining.

Orthogonal structure maximizes machining space.

12 station high-rigidity servo turret ensures accurate and powerful cutting performance, and outstanding process reliability.

￿ Outstanding control delivers higher precision￿

0.0001-degree precision control function of B-axis
￿ and C-axis enables high-precision machining.

Minimized thermal displacement of the spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs and extended use.

￿ Easy and convenient functions￿

Front located tool magazine and convenient ATC operation panel make it easy to change and replace tools, and monitor and check tool change operations.

Side-to-side movable swivelling operation panel with adjustable height settings. User friendly work guidance function.

User friendly work guidance function.

￿

Product Specifications

  • These specifications are based on the global standard and may differ by region.
CAPACITY
Chuck size Max. Turning Diameter Max. Turning Length
LEFT SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque
RIGHT SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque
DIMENSIONS
Length Height Width Weight
SMX2100
8 inch 600 mm 1040 mm
5000 r/min 22 kW 467 N·m
4845 mm 2777 mm 2770 mm 14900 kg
SMX2100S
8 inch 600 mm 1040 mm
5000 r/min 22 kW 467 N·m
5000 r/min 22 kW 467 N·m
4845 mm 2777 mm 2770 mm 15200 kg
SMX 2100ST
8 inch 600 mm 1040 mm
5000 r/min 22 kW 467 N·m
5000 r/min 22 kW 467 N·m
4845 mm 2777 mm 2770 mm 15800 kg
SMX2100B
10 inch 600 mm 1040 mm
4000 r/min 22 kW 512 N·m
4845 mm 2777 mm 2770 mm 15000 kg
SMX2100SB
10 inch 600 mm 1040 mm
4000 r/min 22 kW 512 N·m
5000 r/min 22 kW 467 N·m
4845 mm 2777 mm 2770 mm 15300 kg
SMX2100STB
10 inch 600 mm 1040 mm
4000 r/min 22 kW 512 N·m
5000 r/min 22 kW 467 N·m
4845 mm 2777 mm 2770 mm 15900 kg
SMX 2100L
8 inch 600 mm 1540 mm
5000 r/min 22 kW 467 N.m
5630 mm 2777 mm 2770 mm 16200 kg
SMX 2100LS
8 inch 600 mm 1540 mm
5000 r/min 22 kW 467 N.m
5000 r/min 22 kW 467 N.m
5630 mm 2777 mm 2770 mm 16500 kg
SMX 2100LST
8 inch 600 mm 1540 mm
5000 r/min 22 kW 467 N.m
5000 r/min 22 kW 467 N.m
5630 mm 2777 mm 2770 mm 17100 kg
SMX2600
10 inch 660 mm 1540 mm
4000 r/min 30 kW 724 N·m
5700 mm 2761 mm 3011 mm 15800 kg
SMX2600S
10 inch 660 mm 1540 mm
4000 r/min 30 kW 724 N·m
4000 r/min 30 kW 724 N·m
5700 mm 2761 mm 3011 mm 16200 kg
SMX2600ST
10 inch 660 mm 1540 mm
4000 r/min 30 kW 690 N·m
4000 r/min 30 kW 724 N·m
5790 mm 2820 mm 3021 mm 18000 kg
SMX3100
12 inch 660 mm 1540 mm
3000 r/min 30 kW 1203 N·m
5700 mm 2761 mm 3011 mm 16300 kg
SMX3100L
12 inch 660 mm 2540 mm
3000 r/min 30 kW 1203 N·m
7200 mm 2850 mm 3011 mm 20100 kg
SMX3100S
12 inch 660 mm 1540 mm
3000 r/min 30 kW 1203 N·m
4000 r/min 30 kW 724 N·m
5700 mm 2761 mm 3011 mm 16700 kg
SMX3100ST
12 inch 660 mm 1540 mm
3000 r/min 30 kW 1300 N·m
4000 r/min 30 kW 724 N·m
5790 mm 2820 mm 3021 mm 18500 kg
SMX3100LS
12 inch 660 mm 2540 mm
3000 r/min 30 kW 1203 N·m
4000 r/min 30 kW 724 N·m
7200 mm 2850 mm 3011 mm 20500 kg
SMX5100L
15 inch 830 mm 3050 mm
2400 r/min 37 kW 1643 N·m
9222 mm 3346 mm 3597 mm 31000 kg
SMX 5100LB
21 inch 830 mm 3050 mm
1500 r/min 37 kW 4200 N·m
9222 mm 3346 mm 3597 mm 33000 kg
SMX5100LS
15 inch 830 mm 3050 mm
2400 r/min 37 kW 1643 N·m
2400 r/min 37 kW 1643 N·m
9522 mm 3346 mm 3597 mm 32200 kg
SMX5100LSB
21 inch 830 mm 3050 mm
1500 r/min 37 kW 4200 N·m
1500 r/min 37 kW 4200 N·m
9522 mm 3346 mm 3597 mm 35900 kg
SMX5100XL
15 inch 830 mm 4070 mm
2400 r/min 37 kW 1643 N·m
10749 mm 3398 mm 3597 mm 37000 kg
SMX5100XLB
21 inch 830 mm 4070 mm
1500 r/min 37 kW 4200 N·m
10749 mm 3398 mm 3597 mm 39000 kg
