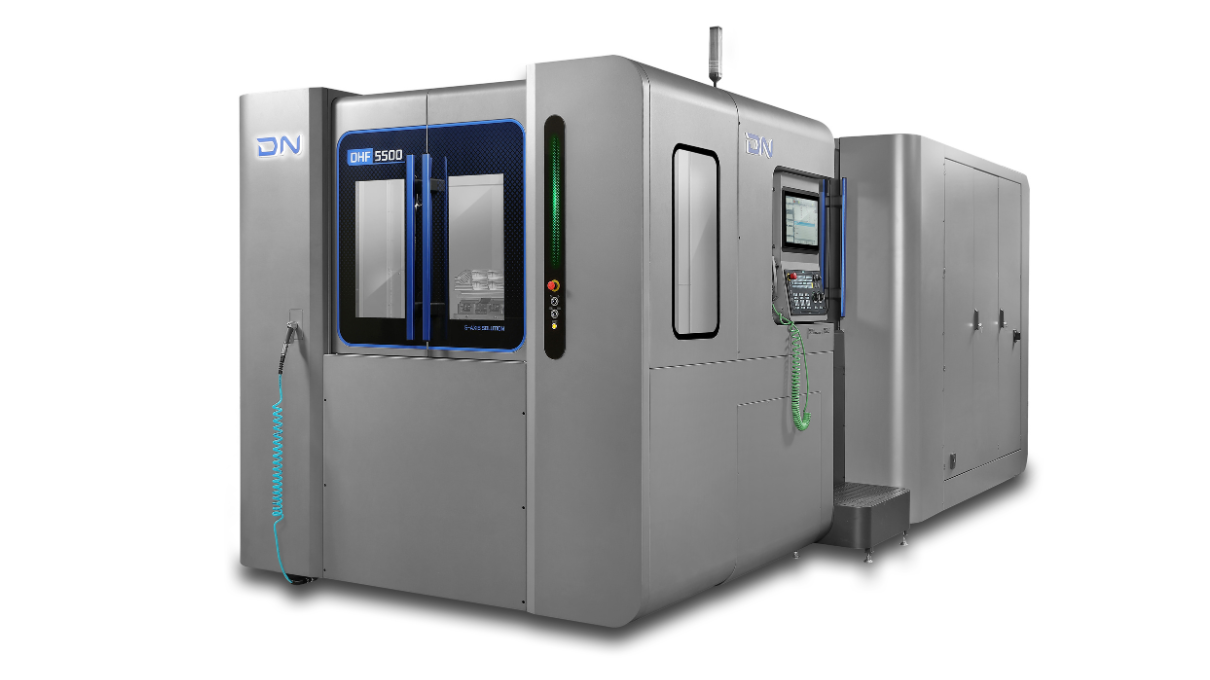

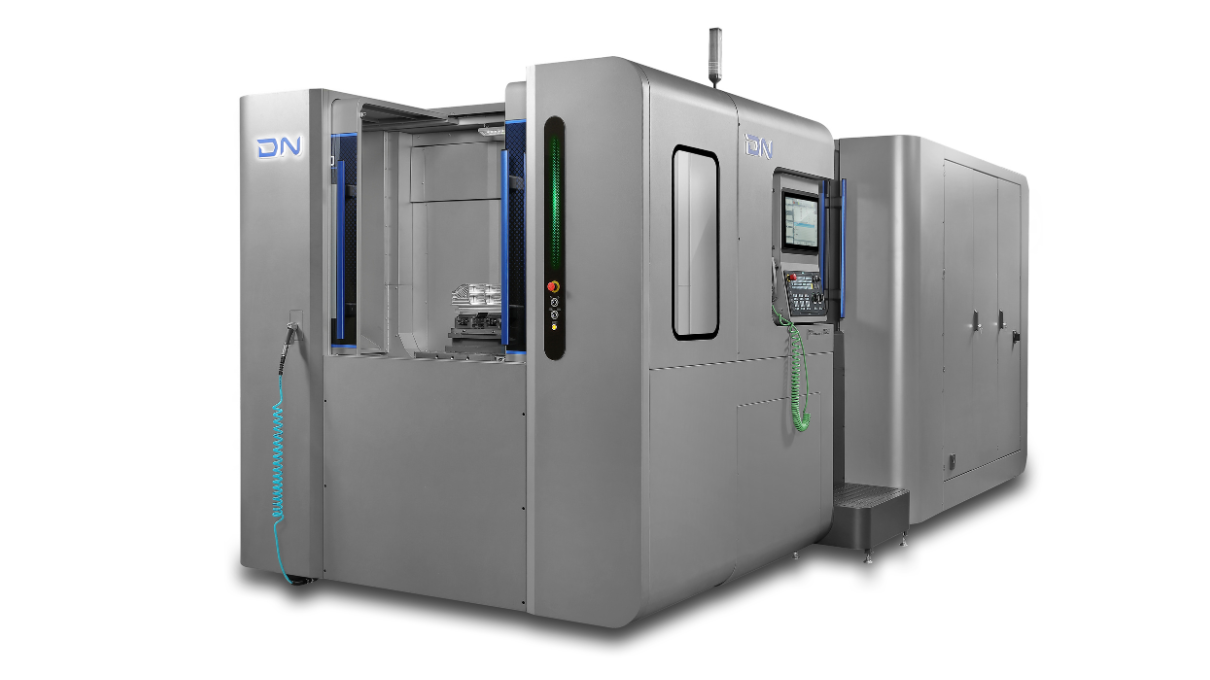

DHF 5500
Max. Spindle Speed
15000 r/min
X-Axis Travel Distance
900 mm
Y-Axis Travel Distance
950 mm

DHF 5500 series

Highly reliable 5-Axis Horizontal Machining Center that delivers stable machining performance

This horizontal machining center features a high-rigidity structure based on a horizontal spindle combined with a tilting rotary table, delivering stable machining performance and great reliability even in heavy-duty cutting environments. In addition, its high-precision positioning control and thermal deformation suppression technologies ensure consistent quality in the machining of complex geometries.

Reliability
Excellent Machining Capability
Stability
Heavy Duty Cutting of Large Workpieces

Highlights

￿ Simultaneous 5-axis machining with exceptional precision

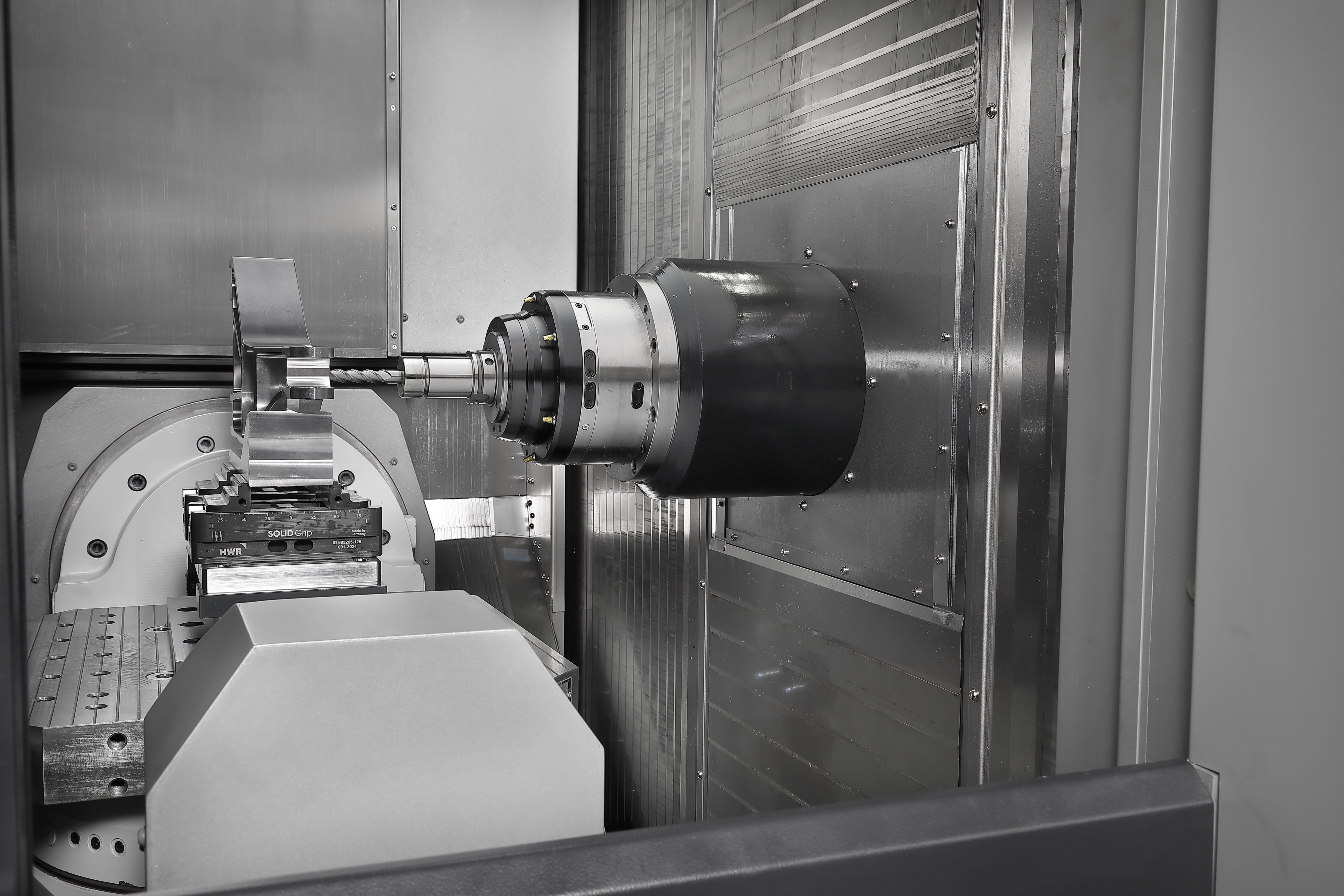

High-speed built-in spindle: 15,000 / 20,000 / 30,000 r/min

Simultaneous 5-axis machining: Siemens SINUMERIK ONE

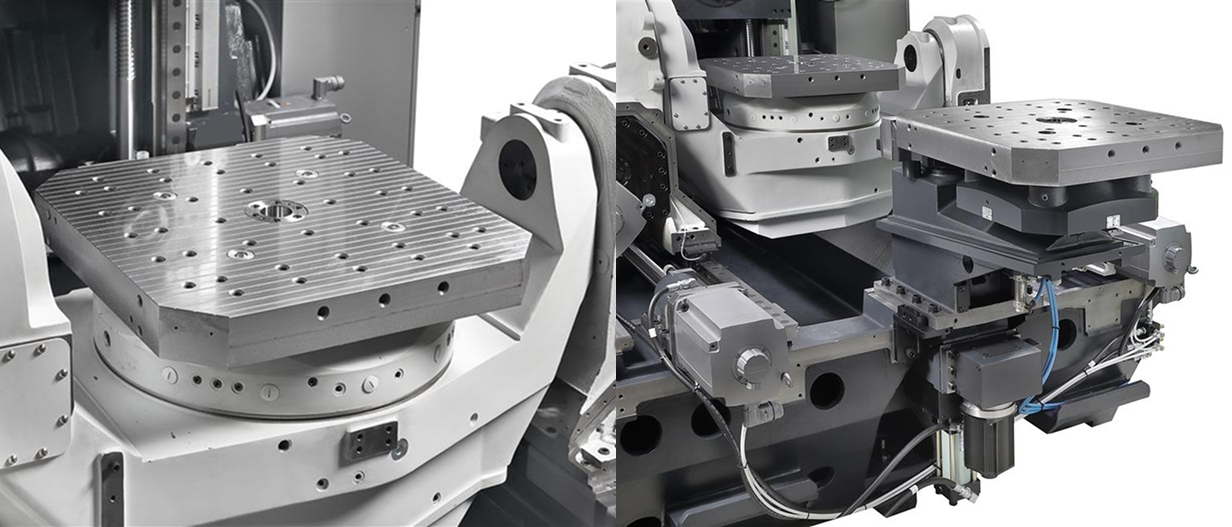

Tilting table structure for multi-angle machining in a single setup: -180° to +45°

￿ ￿ ￿ ￿

￿ Continuous machining of medium to large parts

Maximum size of workpiece: Φ900 × H760 mm

Pallet size: 630 × 630 mm

Servo-driven automatic pallet changer (APC)

￿ ￿ ￿

Stable performance for prolonged machining

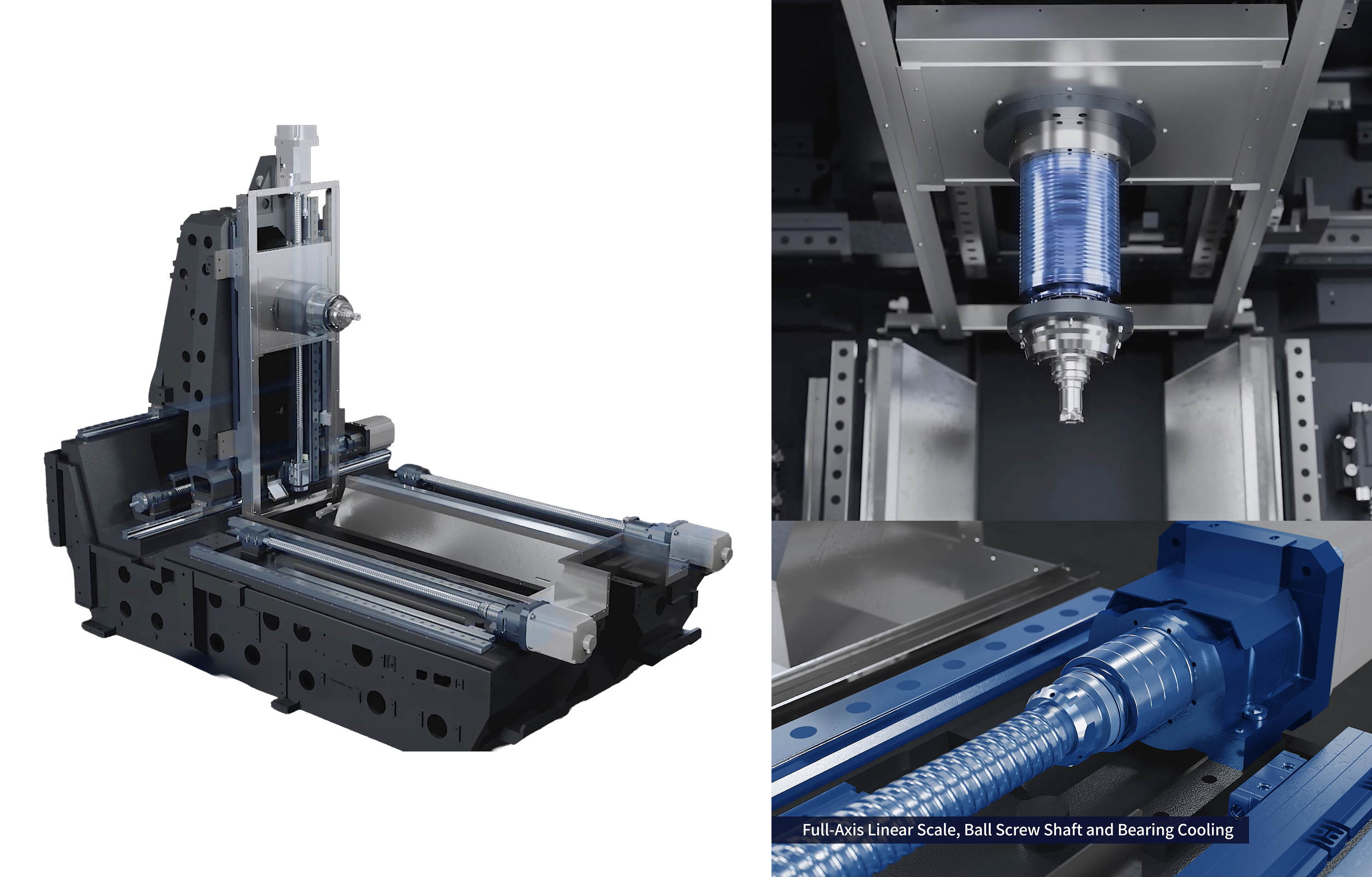

All axes are equipped with linear scales.

The Z-axis is fitted with dual ball screws.

Features a ball-screw shaft and nut cooling system.

￿ ￿ ￿ ￿ ￿ ￿ ￿


Product Specifications

  • These specifications are based on the global standard and may differ by region.
TRAVELS
X-Axis Travel Distance Y-Axis Travel Distance Z-Axis Travel Distance
FEED RATES
X-Axis Rapid Traverse Y-Axis Rapid Traverse Z-Axis Rapid Traverse A-Axis Rapid Traverse B-Axis Rapid Traverse
MAIN SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque
TABLE
Pallet Size Maximum Workpiece weight
DIMENSIONS
Length Height Width Weight
DHF 5500
900 mm 950 mm 900 mm
60 m/min 60 m/min 60 m/min 25 r/min 60 r/min
15000 r/min 25/45 S6(15%) kW 204 Nm
630 x 630 700 kg
7630 mm 3215 mm 4050 mm 20000 kg
