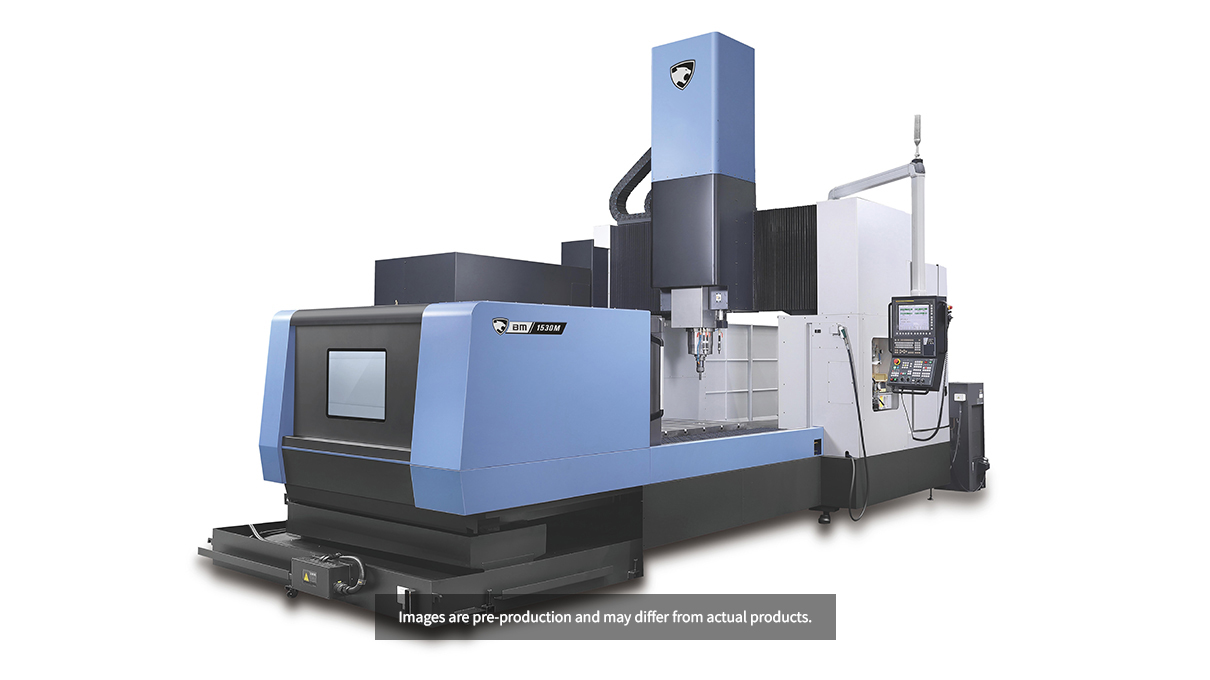

BM 1530
X-Axis Travel Distance
3000 mm
Y-Axis Travel Distance
1550 mm
Z-Axis Travel Distance
800 mm

BM series

BRIDGE MILLS

Shops that work with oversized die mold applications, whether automotive, injection molding or press molds, would do well to take a serious look at the BM Series. It’s a must-add to your floor.

Easy to Operate
High Productivity
High Precision
Stability

Highlights

￿STRONG & STABLE￿

Incredible spindle power and machine rigidity.

The long nose design on the 12,000 RPM dual contact BIG-PLUS taper spindle lets you mill the deep pockets commonly found in mold applications, and multiple rails of linear roller guideways add to the BM’s rigidity./span>￿

￿ ￿ ￿

STAY TRUE￿

Linear scales are standard on all XYZ axes.

The BM Series supplies accuracy you can take to the bank. Thanks to its ball screw nut cooling and thermal displacement compensation—both standard features—you can be sure the machine is where it says it is.

STAY SMOOTH￿

Vital software is packed into the BM “M” Series.

In die mold applications, smooth surface finishes are a must. With that in mind, DN Solutions' die mold package software comes standard on every BM “M” Series. The competition makes you pay for bonus features like these. At DN Solutions, they’re standard.

￿

Product Specifications

  • These specifications are based on the global standard and may differ by region.
CAPACITY
Table to spindle nose
TRAVELS
X-Axis Travel Distance Y-Axis Travel Distance Z-Axis Travel Distance
FEED RATES
X-Axis Rapid Traverse Y-Axis Rapid Traverse Z-Axis Rapid Traverse
MAIN SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque Tool Taper
TABLE
Table Length Table Width Maximum Workpiece weight
DIMENSIONS
Length Height Width Weight
BM 1530
1700 mm
3000 mm 1550 mm 800 mm
16 m/min 16 m/min 16 m/min
8000 r/min 30 kW 600 N·m
3000 mm 1350 mm 8000 kg
5542 mm 4770 mm w/o riser 10945 mm 29000 kg
BM 1530M
1000 mm
3000 mm 1550 mm 800 mm
16 m/min 16 m/min 16 m/min
30/25 r/min 7/24 TAPER kW 12000 N·m ISO #50
3000 mm 1350 mm 8000 kg
4450 mm 4770 mm 8690 mm 29000 kg
BM 2035
2200 mm
3500 mm 2050 mm 800 mm
16 m/min 16 m/min 16 m/min
8000 r/min 30 kW 600 N·m
3500 mm 1850 mm 10000 kg
5944 mm 4770 mm w/o riser 11963 mm 35516 kg
BM 2035M
1000 mm
3500 mm 2050 mm 800 mm
16 m/min 16 m/min 16 m/min
30/25 r/min 7/24 TAPER kW 12000 N·m ISO #50
3500 mm 1850 mm 10000 kg
4960 mm 4770 mm 9540 mm 35516 kg
BM 2740
950 mm
4000 mm 2700 mm 800 mm
16 m/min 24 m/min 24 m/min
30/25 r/min 7/24 TAPER kW 10000 N·m ISO #50
4000 mm 2500 mm 10000 kg
5535 mm 4436 mm 10825 mm 45000 kg
BM 2740M
950 mm
4000 mm 2700 mm 800 mm
12 m/min 16 m/min 16 m/min
12000 r/min 30/25 kW 420 N·m ISO #50
4000 mm 2500 mm 15000 kg
5535 mm 4675 mm 10825 mm 48000 kg
