DN Solutions

SMX3100ST

METRICIMPERIAL

Chuck size: 12 inch; 12 inch

Max. Turning Diameter: 660 mm; 26 inch

Max. Turning Length: 1540 mm; 61 inch

SMX series

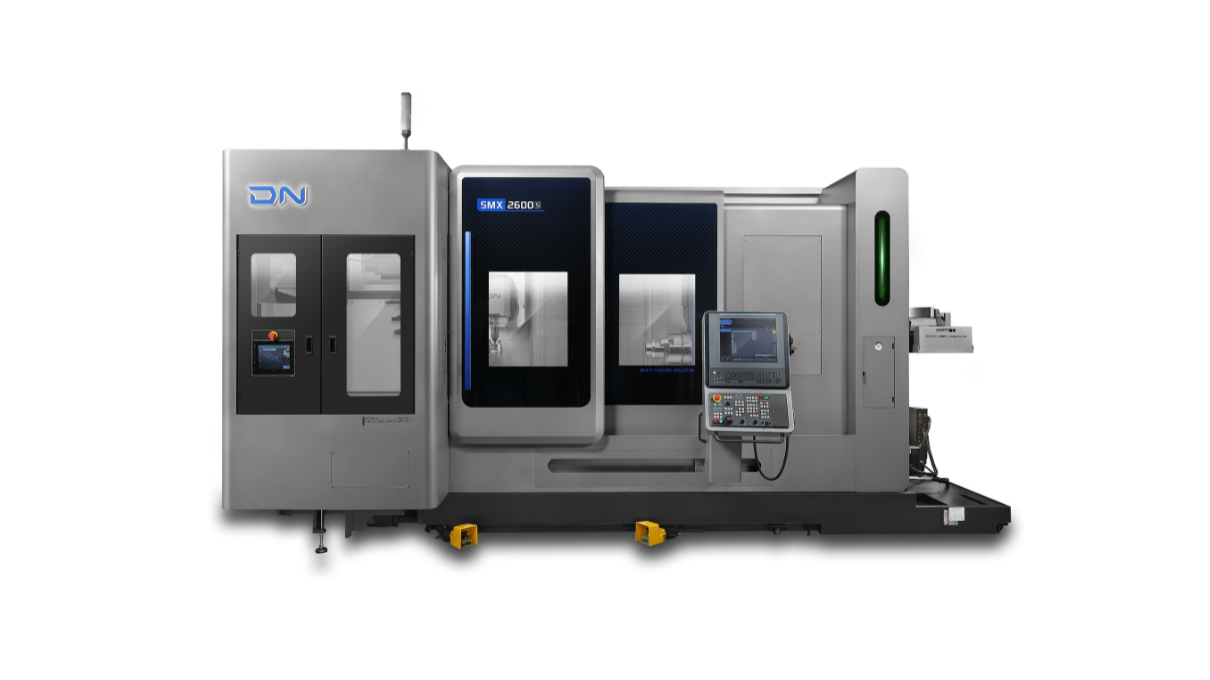

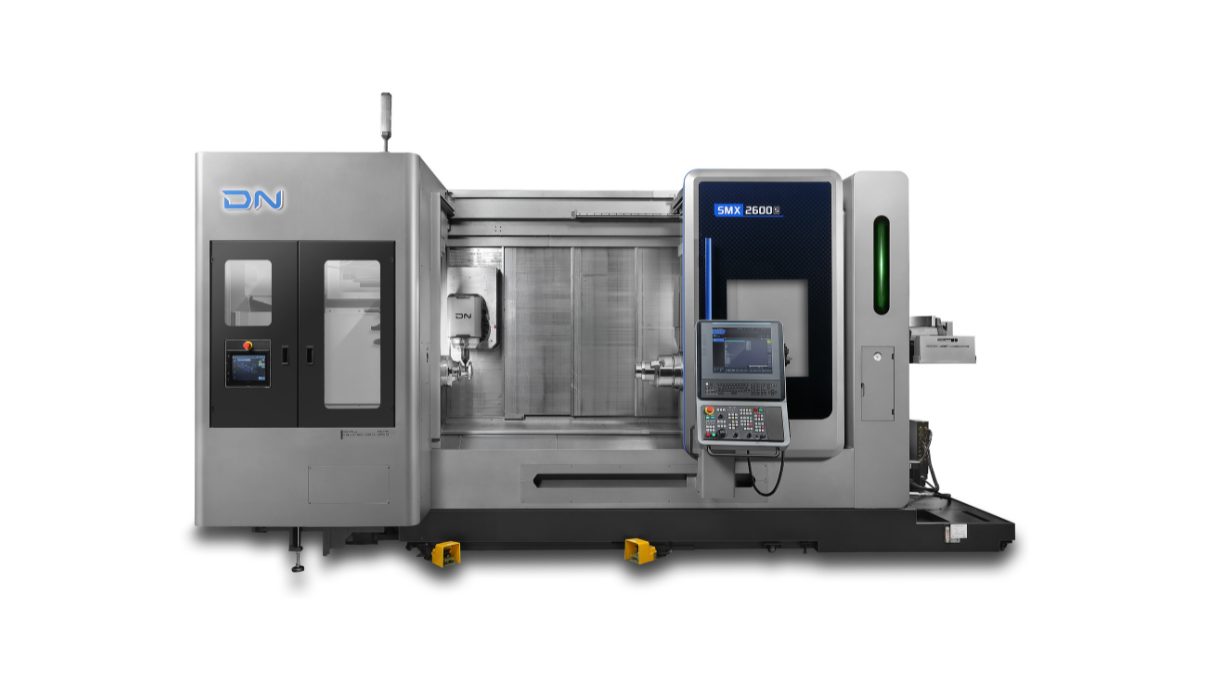

Multifunctional Turn/Mill Centers

With a total of nine axes, the SMX Series sets new standards in versatility and precision. Thanks to advanced multitasking capabilities, you can perform both turning and milling operations in a single setup. This leads to significantly shorter setup times, faster machining processes, and maximum productivity. The SMX Series also features a robust machine frame for optimal rigidity and superb repeatability, ensuring high-quality results every time.

High Precision

Multitasking Capability

Faster Machining

Shorter Setting Time

Highlights

Inside the SMX: Key Features

This multifunctional machine features roller linear guideways, opposing left and right spindles, Y-axis travel 30% larger than standard, and 0.0001-degree indexing on the B-axis and main C-axis spindle.

The milling head’s tool magazine holds 80 tools as standard (optionally up to 120), with rapid traverse rates of 1,890 IPM for maximum productivity.

Next-Level Motion Freedom

The B-axis milling spindle features backlash-free movement with a roller gear cam and a wide travel range of +/- 120°, providing unmatched flexibility for complex milling tasks.

Experience enhanced machining speed, reduced cycle times, and improved processing capabilities thanks to advanced kinematics and robust construction on the MX Series.

Advanced Equipment for Demanding Applications

The multifunctional machining center of the SMX Series features advanced roller linear guides and opposing spindles on both sides, ensuring stable and precise operations.

The spacious tool magazine at the milling head holds 80 tools as standard and can optionally be expanded to up to 120 tools—perfect for complex manufacturing tasks.

Product Specifications

These specifications are based on the global standard and may differ by region.

CAPACITY

Chuck size Max. Turning Diameter Max. Turning Length

LEFT SPINDLE

Max. Spindle Speed Max. Spindle Power Max. Spindle Torque

RIGHT SPINDLE

Max. Spindle Speed Max. Spindle Power Max. Spindle Torque

DIMENSIONS

Length Height Width Weight

8 inch 600 mm 1040 mm

5000 r/min 22 kW 467 N·m

4845 mm 2777 mm 2770 mm 14900 kg

8 inch 600 mm 1040 mm

5000 r/min 22 kW 467 N·m

4845 mm 2777 mm 2770 mm 15200 kg

8 inch 600 mm 1040 mm

5000 r/min 22 kW 467 N·m

4845 mm 2777 mm 2770 mm 15800 kg

10 inch 600 mm 1040 mm

4000 r/min 22 kW 512 N·m

4845 mm 2777 mm 2770 mm 15000 kg

10 inch 600 mm 1040 mm

4000 r/min 22 kW 512 N·m

5000 r/min 22 kW 467 N·m

4845 mm 2777 mm 2770 mm 15300 kg

10 inch 600 mm 1040 mm

4000 r/min 22 kW 512 N·m

5000 r/min 22 kW 467 N·m

4845 mm 2777 mm 2770 mm 15900 kg

8 inch 600 mm 1540 mm

5000 r/min 22 kW 467 N.m

5630 mm 2777 mm 2770 mm 16200 kg

8 inch 600 mm 1540 mm

5000 r/min 22 kW 467 N.m

5630 mm 2777 mm 2770 mm 16500 kg

8 inch 600 mm 1540 mm

5000 r/min 22 kW 467 N.m

5630 mm 2777 mm 2770 mm 17100 kg

10 inch 660 mm 1540 mm

4000 r/min 30 kW 724 N·m

5700 mm 2761 mm 3011 mm 15800 kg

10 inch 660 mm 1540 mm

4000 r/min 30 kW 724 N·m

5700 mm 2761 mm 3011 mm 16200 kg

10 inch 660 mm 1540 mm

4000 r/min 30 kW 690 N·m

4000 r/min 30 kW 724 N·m

5790 mm 2820 mm 3021 mm 18000 kg

12 inch 660 mm 1540 mm

3000 r/min 30 kW 1203 N·m

5700 mm 2761 mm 3011 mm 16300 kg

12 inch 660 mm 2540 mm

3000 r/min 30 kW 1203 N·m

7200 mm 2850 mm 3011 mm 20100 kg

12 inch 660 mm 1540 mm

3000 r/min 30 kW 1203 N·m

4000 r/min 30 kW 724 N·m

5700 mm 2761 mm 3011 mm 16700 kg

12 inch 660 mm 1540 mm

3000 r/min 30 kW 1203 N·m

4000 r/min 30 kW 724 N·m

5790 mm 2820 mm 3021 mm 18500 kg

12 inch 660 mm 2540 mm

3000 r/min 30 kW 1203 N·m

4000 r/min 30 kW 724 N·m

7200 mm 2850 mm 3011 mm 20500 kg

15 inch 830 mm 3050 mm

2400 r/min 37 kW 1643 N·m

9222 mm 3346 mm 3597 mm 31000 kg

21 inch 830 mm 3050 mm

1500 r/min 37 kW 4200 N·m

9222 mm 3346 mm 3597 mm 33000 kg

15 inch 830 mm 3050 mm

2400 r/min 37 kW 1643 N·m

9522 mm 3346 mm 3597 mm 32200 kg

21 inch 830 mm 3050 mm

1500 r/min 37 kW 4200 N·m

9522 mm 3346 mm 3597 mm 35900 kg

15 inch 830 mm 4070 mm

2400 r/min 37 kW 1643 N·m

10749 mm 3398 mm 3597 mm 37000 kg

21 inch 830 mm 4070 mm

1500 r/min 37 kW 4200 N·m

10749 mm 3398 mm 3597 mm 39000 kg
