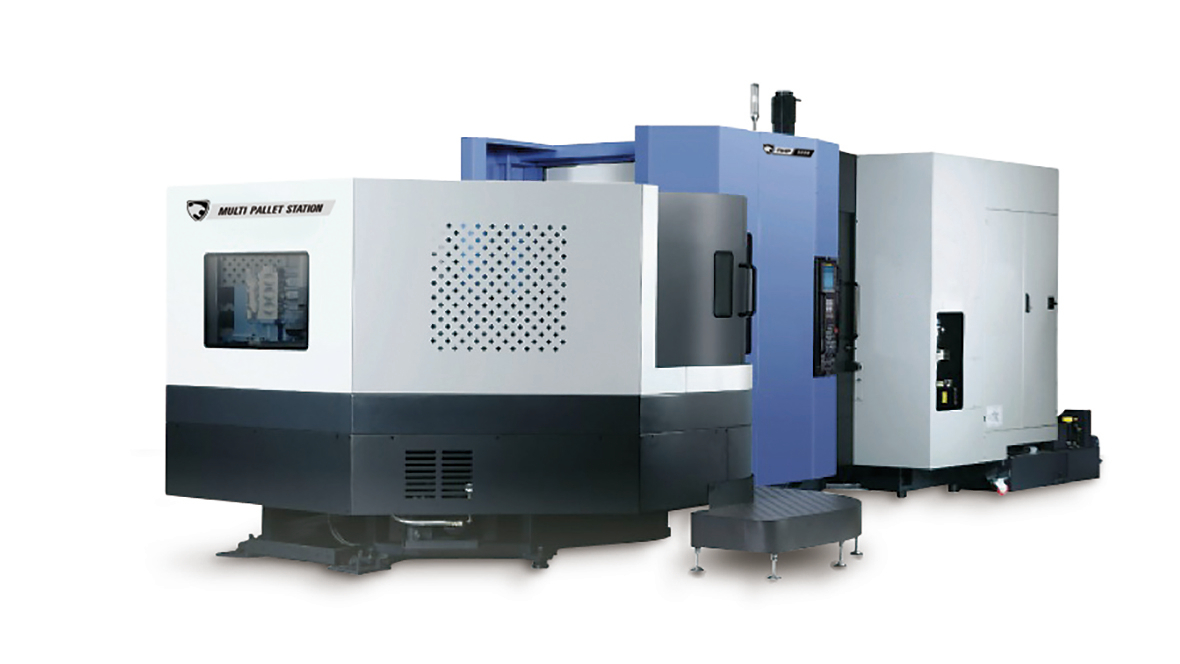

RPS

0105
- Saves space and minimizes investment cost
- Uses the work scheduling function to enable mass-production of parts
- Facilitates mounting/stacking of workpieces/machined parts

Highlight

Specification of Machine Tools


  RPS 4000 / 5000-6
Available Model
NHP 4000 HC 400Ⅱ HP 4000Ⅱ
NHP 5000 HC 500Ⅱ HP 5100Ⅱ
Pallet Dimension 400 mm x 400 mm 500 mm x 500 mm
Max. Workpiece Height 800 mm 1100 mm
Max. Workpiece Diameter 600 mm 850 mm
Max. Workpiece Weight 400 kg 800 kg
Number of Pallets 6ea
Magazine Type Buffer Station type with Carrier
Operation easy scheduling operation (2-Path control)
DrIving Mechanism
Rotating Axis(X) Servo Motor & Reduction Gear
Forking Axis(Z) Hydraulic Cylinder & Rack/Pinion
Dimension(Basic) 2983 mm x 1935 mm

Specification of Machine Tools


  RPS 5500 RPS 6300 RPS 8000
Available Model
NHM 5000 NHP 5500
NHM 6300 NHP 6300
NHM 8000 NHP 8000
Pallet Dimension 500 mm x 500 mm 630 mm x 630 mm 800 mm x 800 mm
Workpiece Diameter 800 mm 1050 mm 1450 mm
Workpiece Height 1100 mm 1350 mm 1550 mm
Workpiece Weight 800 kg 1200 kg 1600 kg
Number of pallets 7 & 9 ea
Magazine type Buffer Station type with Carrier
Operation easy scheduling operation (2-Path control)
Pallet Drive Device Servo Motor & Reduction Gear
Hydraulic Power Unit 2.2 (3.0) kW

Specification of Machine Tools


  RPS 1000 RPS 1250
Available Model
HM 1000
HM 1250
Pallet Dimension 1000 mm x 1000 mm / 1250 mm x 1000 mm
Workpiece Diameter 2000 mm 2000 mm
Workpiece Height 1475 mm 1725 mm
Workpiece Weight 3000 kg 3000 kg
Magazine type Round type
Operation Pallet scheduling operation (1-Path, PMC control)
Pallet Drive Device HYDRAULIC MOTOR & CHAIN
Hydraulic Power Unit 7.5 kW
  • * For detailed information, please contact DN Solutions’ dealerships.
