Multi-Turret Horizontal

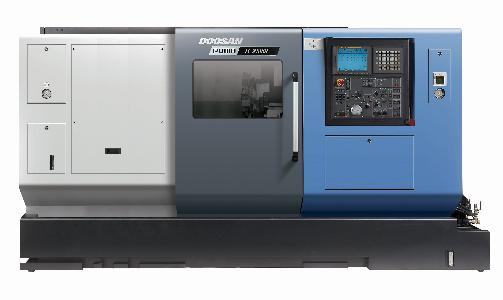

PUMA TL series
High-productivity Turning Center with Upper/lower Turrets
the PUMA TL Series is perfect for shaft work such as camshafts
and crankshafts where simultaneous 4-axis work is required.
Highlight

High Productivity

Excellent Machining Capability

Multitasking Capability

Faster Machining

20 Stations
= 12+8 Turret stations
The PUMA TL multi-turret turning center allows parallel
processing of components. This reduces cycle times and
delivers increased productivity.
Optimized for turning shafts
(crankshafts, etc.)
via simultaneous turning
and use of upper/lower turrets
The robust triangular frame on the PUMA TL houses a powerful
and versatile spindle motor. From precise finishing to high
metal removal rates using both turrets at the same time,
PUMA TL machines are designed to thrive in your production environment.
Programmable tailstock application ensures stable machining of longer components.


Machining Flexibility
Accuracy and time savings are achieved by enabling single set ups
Unmanned operation achieved through by automation
Less floor space and increased productivity
Model Specifications
The suggested is a global standard specification and it may vary by country.
Chuck size
Max. Turning Diameter
Max. Turning Length
Distance between Columns
X Axis Rapid Traverse
Z Axis Rapid Traverse
X Axis Travel distance
Y Axis Travel distance
Z Axis Travel distance
Rapid Traverse
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Tool Taper
No. of tool station
Rotary Tool r/min
Length
Height
Width
Weight
PUMA TL2000

8 inch
370 / 240 mm
600 mm
20 m/min
24 m/min
5000 r/min
476.3 N·m
12 ea
3250 mm
1930 mm
2118 mm
7200 kg
PUMA TL2000L

8 inch
370 / 240 mm
1000 mm
20 m/min
24 m/min
5000 r/min
476.3 N·m
12 ea
3900 mm
1930 mm
2144 mm
8400 kg
PUMA TL2000LM

8 inch
350 / 240 mm
1000 mm
20 m/min
24 m/min
5000 r/min
476.3 N·m
12 ea
5000 r/min
3900 mm
1930 mm
2144 mm
8400 kg
PUMA TL2000M

8 inch
350 / 240 mm
600 mm
20 m/min
24 m/min
5000 r/min
476.3 N·m
12 ea
5000 r/min
3250 mm
1930 mm
2118 mm
7200 kg
PUMA TL2500

10 inch
370 / 240 mm
600 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
3250 mm
1930 mm
2118 mm
7300 kg
PUMA TL2500L

10 inch
370 / 240 mm
1000 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
3900 mm
1930 mm
2144 mm
8500 kg
PUMA TL2500XL

10 inch
370 / 240 mm
1250 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
4510 mm
2115 mm
2630 mm
9600 kg
PUMA TL2500M

10 inch
350 / 240 mm
600 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
5000 r/min
3250 mm
1930 mm
2118 mm
7300 kg
PUMA TL2500LM

10 inch
350 / 240 mm
1000 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
5000 r/min
3900 mm
1930 mm
2144 mm
8500 kg
PUMA TL2500XLM

10 inch
350 / 240 mm
1250 mm
20 m/min
24 m/min
4000 r/min
433.2 N·m
12 ea
5000 r/min
4510 mm
2115 mm
2630 mm
9600 kg
