Multi-Turret Horizontal
PUMA TW series

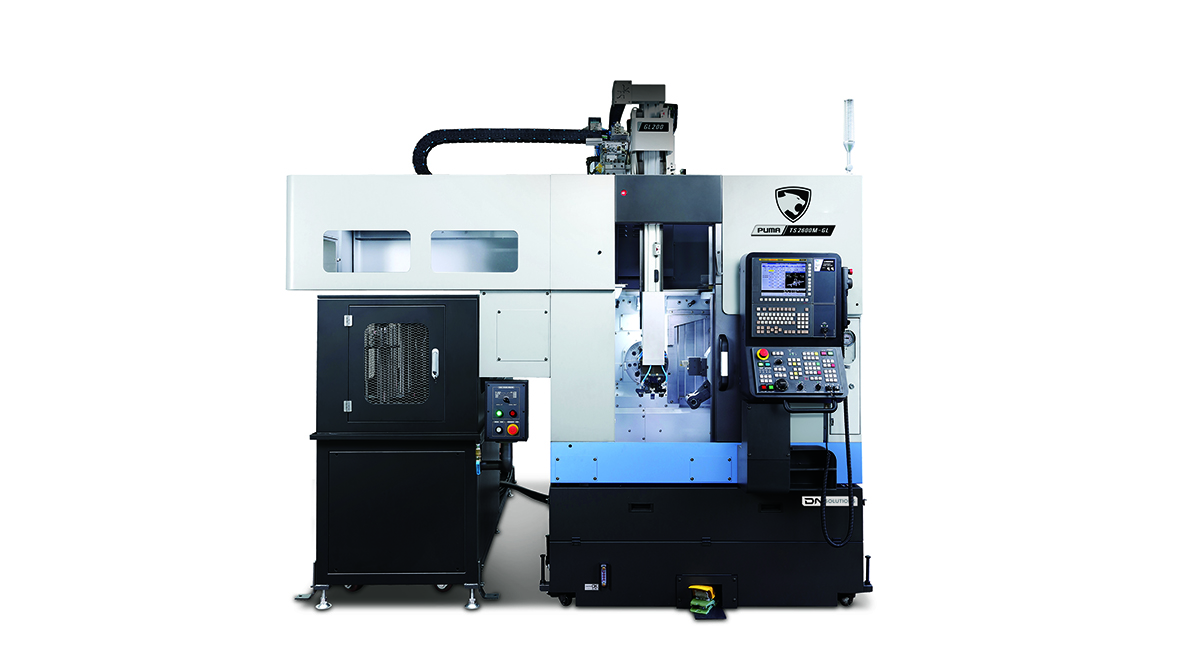

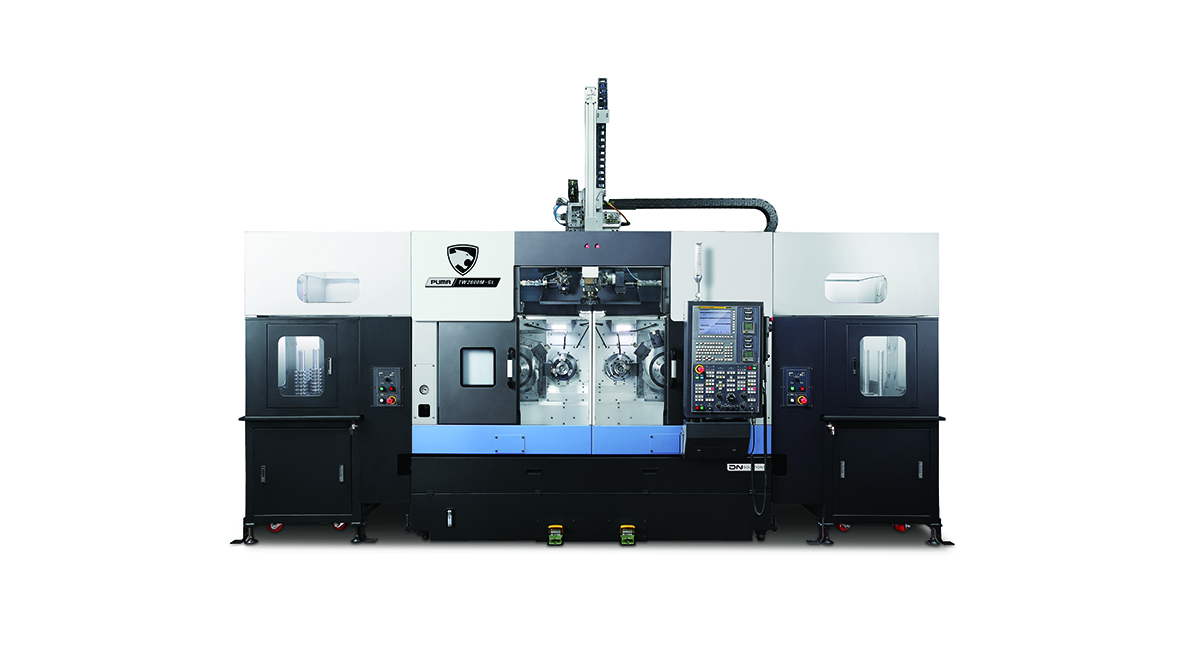

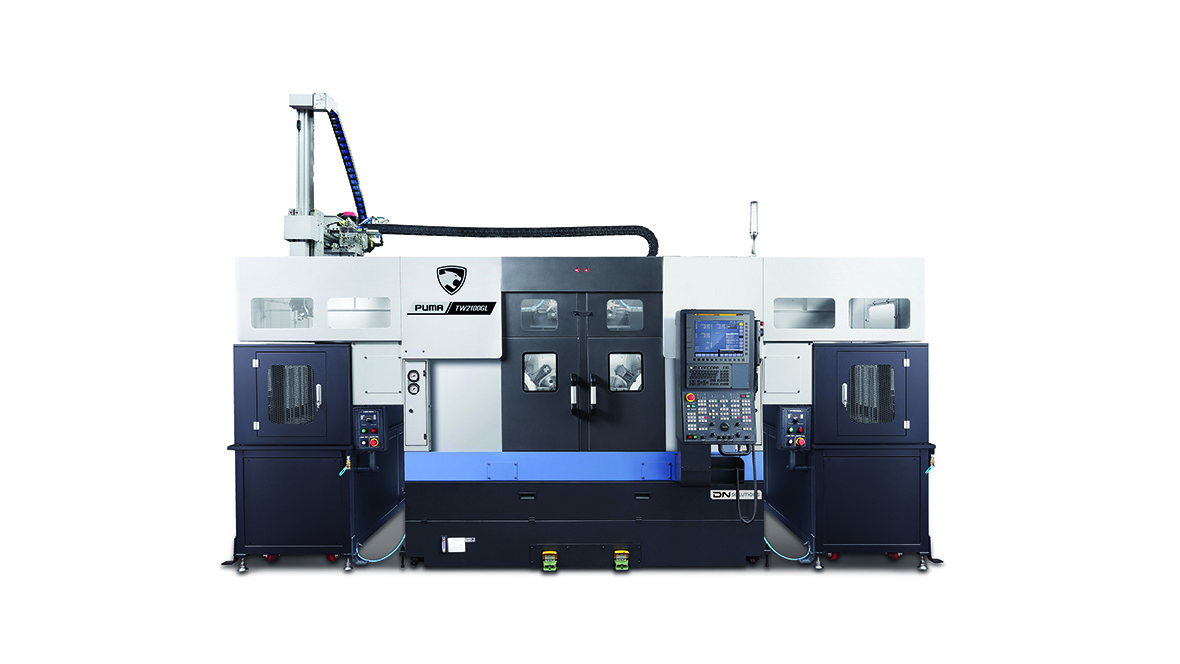

Twin-Turret, Twin-Spindle HTC with Forward-Facing Chucks
which makes it ideal for machining automotive ring gear or clutch boss components.
Highlight
High Productivity
Easier Automation
Excellent Machining Capability
Faster Machining
Superior Productivity
Unrivalled productivity due to minimal idle spindle time with minimized gantry loader handling time and increased indexing speed with servo-driven turrets.
Superior Machining Performance
3-Axis Turret Size Enlargement Option
PUMA TW2600M: BMT 65P option :
Motor power 10kW, Torque 63.7N.m, Max. Tap size Ø20mm
High Speed Gantry Loader
Gantry loader handling time (Enter->Change Work->Exit)
PUMA TW/TS2100-GL: 5.7s
PUMA TW/TS2600-GL: 7.9s
Improved User Convenience
Built-in Doosan Loader Guidance software for easy and convenient Gantry Loader operation and machine maintenance.
Model Specifications
The suggested is a global standard specification and it may vary by country.
Chuck size
Max. Turning Diameter
Max. Turning Length
Distance between Columns
X Axis Rapid Traverse
Z Axis Rapid Traverse
X Axis Travel distance
Y Axis Travel distance
Z Axis Travel distance
Rapid Traverse
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Tool Taper
No. of tool station
Rotary Tool r/min
Length
Height
Width
Weight
PUMA TS2100
8 inch
240 mm
128 mm
24 m/min
24 m/min
4500 r/min
15/11 kW
127 N.m
8 ea
PUMA TS2100M
8 inch
240 mm
128 mm
24 m/min
24 m/min
4500 r/min
15/11 kW
127 N.m
8 ea
6000 r/min
PUMA TS2600
10 inch
360 mm
170 mm
24 m/min
24 m/min
3500 r/min
18.5/15 kW
202 N·m
10 ea
1555 mm
2150 mm
2061 mm
5000 kg
PUMA TS2600M
10 inch
360 mm
170 mm
24 m/min
24 m/min
3500 r/min
18.5/15 kW
202 N·m
10 ea
5000 r/min
1555 mm
2150 mm
2061 mm
5000 kg
PUMA TW2100
8 inch
240 mm
128 mm
24 m/min
24 m/min
4500 r/min
15/11 kW
127 N·m
8 ea
2030 mm
2278 mm
2098 mm
4650 kg
PUMA TW2100M
8 inch
240 mm
128 mm
24 m/min
24 m/min
4500 r/min
15/11 kW
127 N·m
10 ea
6000 r/min
2030 mm
2278 mm
2098 mm
4650 kg
PUMA TW2600
10 inch
360 mm
170 mm
24 m/min
24 m/min
3500 r/min
18.5/15 kW
202 N·m
10 ea
2520 mm
2150 mm
2061 mm
7200 kg
PUMA TW2600M
10 inch
360 mm
170 mm
24 m/min
24 m/min
3500 r/min
18.5/15 kW
202 N·m
10 ea
5000 r/min
2520 mm
2150 mm
2061 mm
7200 kg
