Single Turret Vertical

PUMA VT series

Large-Size High-Performance and Heavy-Duty VTC

14

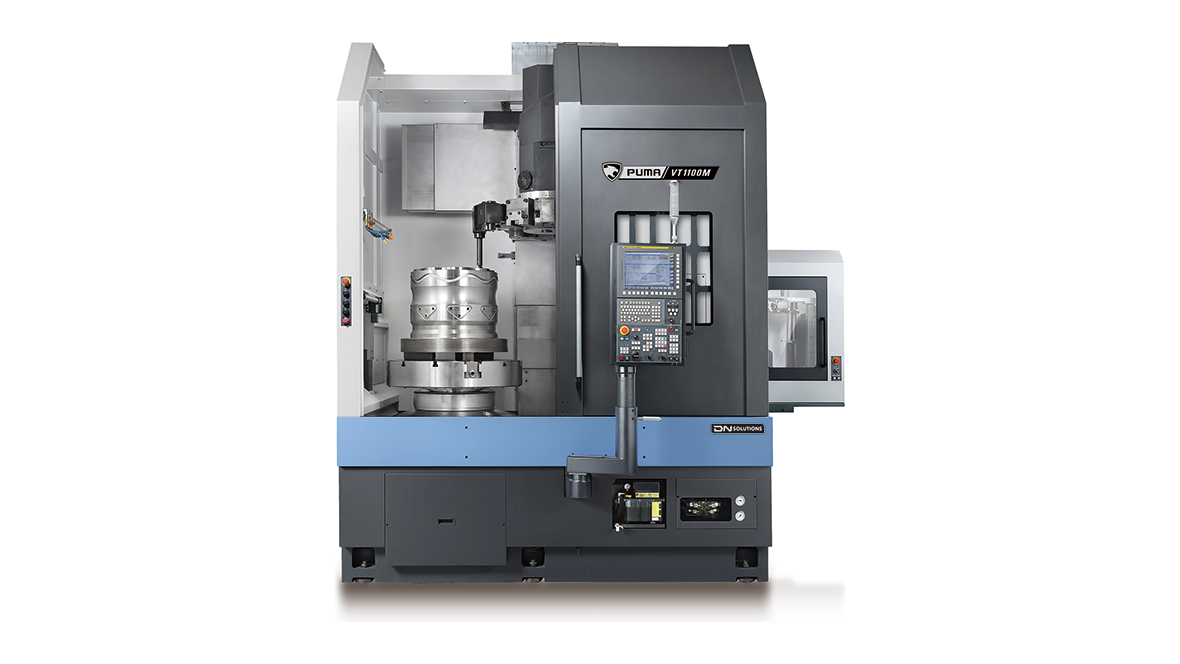

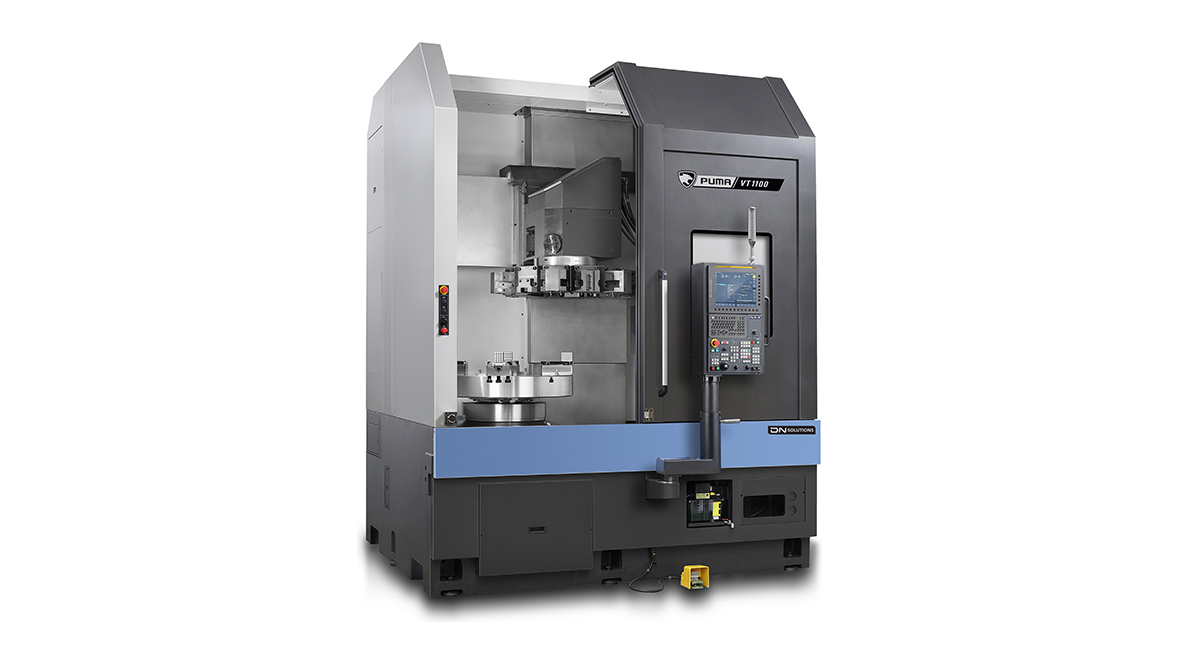

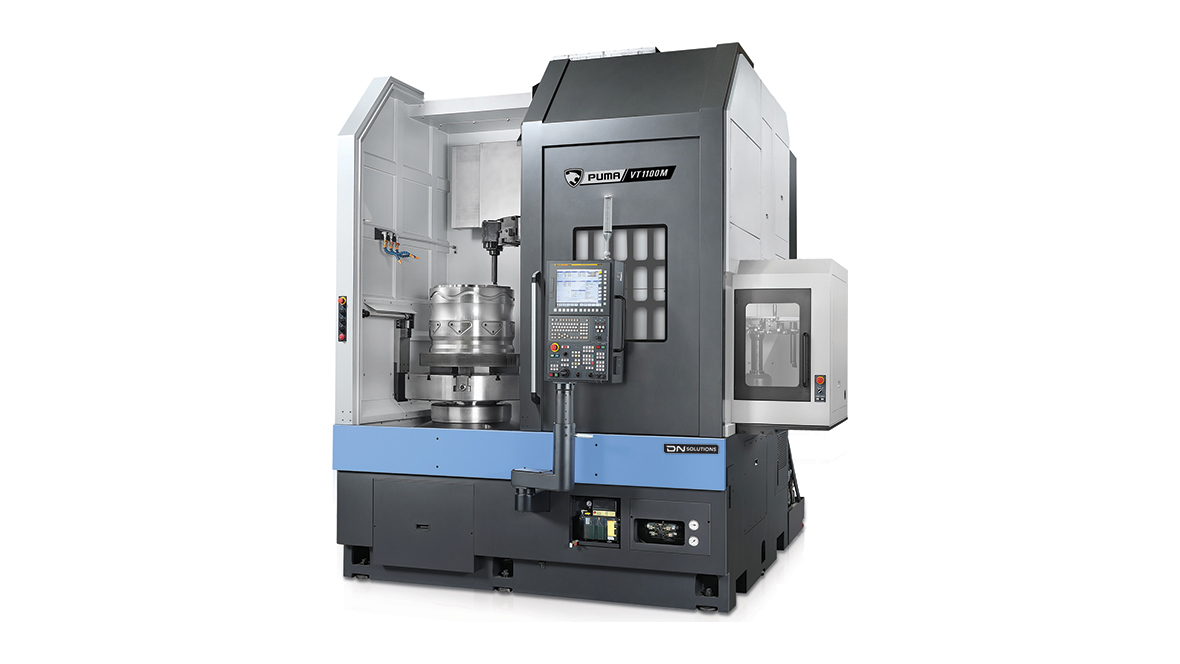

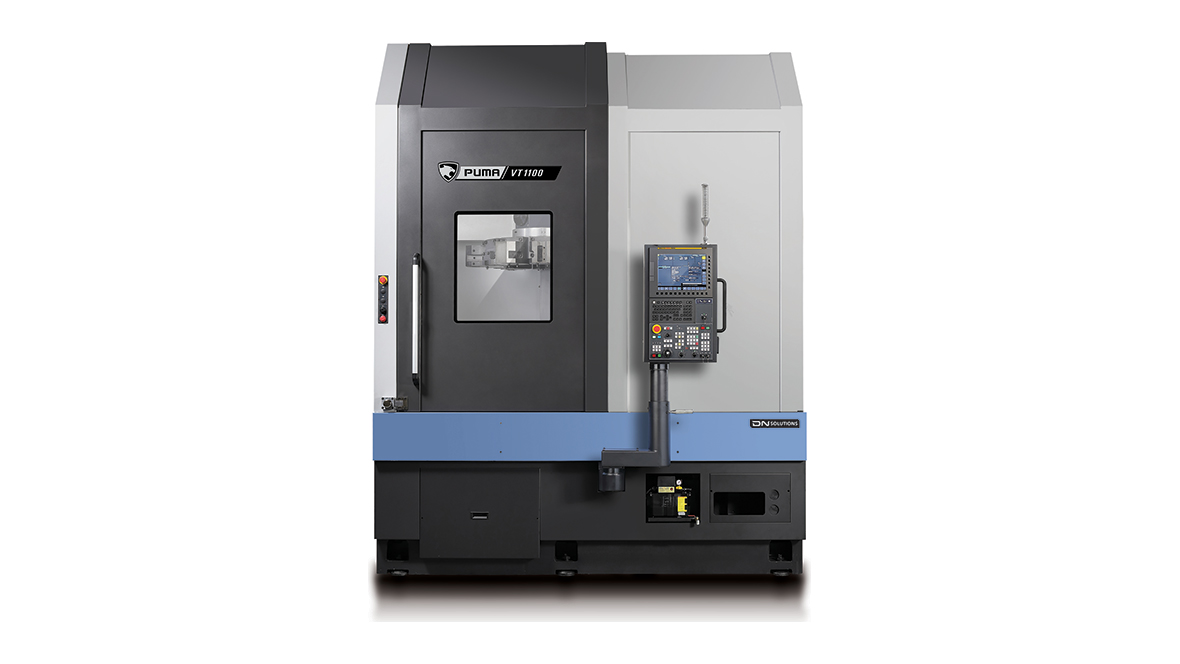

The PUMA VT1100 Series is a large vertical turning center that
has the rigidity and spindle power to tackle the heaviest of heavy-duty work.

Highlight

Reliability

High Productivity

Excellent Machining Capability

Convenient Tool Change

Optimized for the heavy duty cutting of large workpieces

Chuck Size : 32 inch

60kW high-power spindle motor and high-end gear box

Max. Turning diameter x length : Ф1100 x 1000 mm

Outstanding vibration absorption and a stable highly-rigid structure that enables long hours of heavy duty cutting

ATC for higher productivity (option)

Tool shank : Capto C8

Tools storage capacity : 12 each

Max. Tool diameter x Length : 110 x 450 mm

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

TURRET

No. of tool station

Rotary Tool r/min

DIMENSIONS

Length

Height

Width

Weight

PUMA VT900

24 inch

900 mm

850 mm

20 m/min

20 m/min

1800 r/min

45 kW

4443 N·m

12 ea

2130 mm

3621 mm

3050 mm

12500 kg

PUMA VT900M

24 inch

900 mm

850 mm

20 m/min

20 m/min

1800 r/min

45 kW

4443 N·m

12 ea

2130 mm

3621 mm

3050 mm

12500 kg

PUMA VT1100

32 inch

1100 mm

1000 mm

20 m/min

20 m/min

850 r/min

60 kW

6385 N·m

12 ea

2830 mm

4012 mm

3305 mm

22000 kg

PUMA VT1100M

32 inch

1100 mm

1000 mm

20 m/min

20 m/min

850 r/min

60 kW

6385 N·m

12 ea

2830 mm

4012 mm

3305 mm

22050 kg
