Vertical Machining Center

BVM series

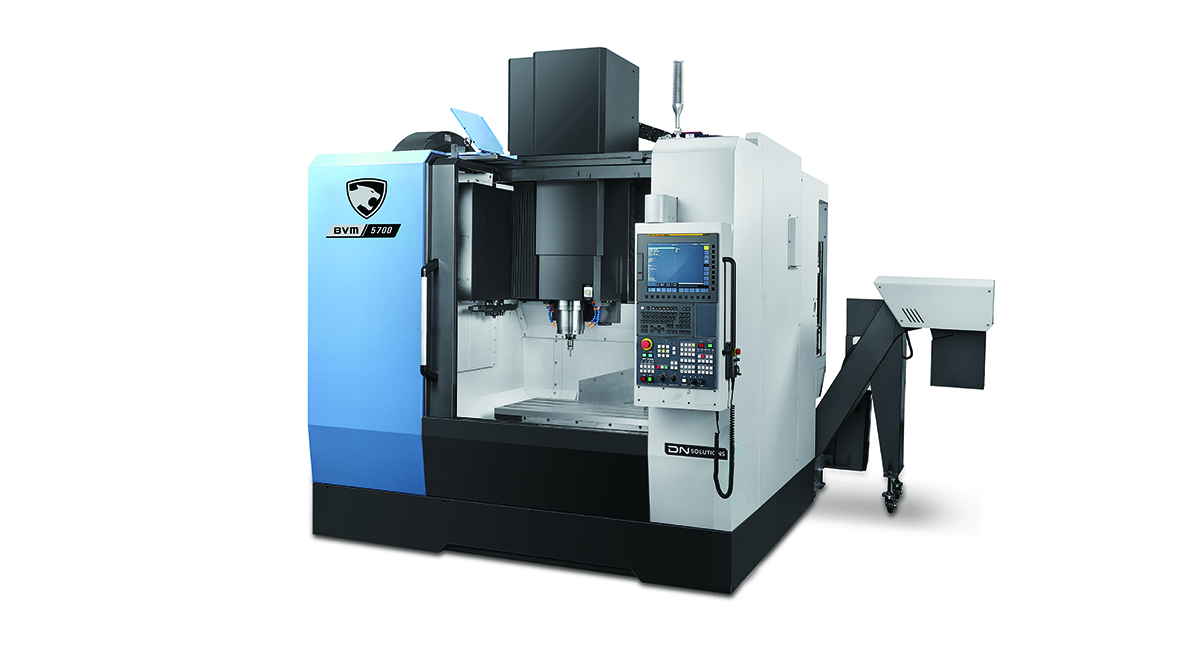

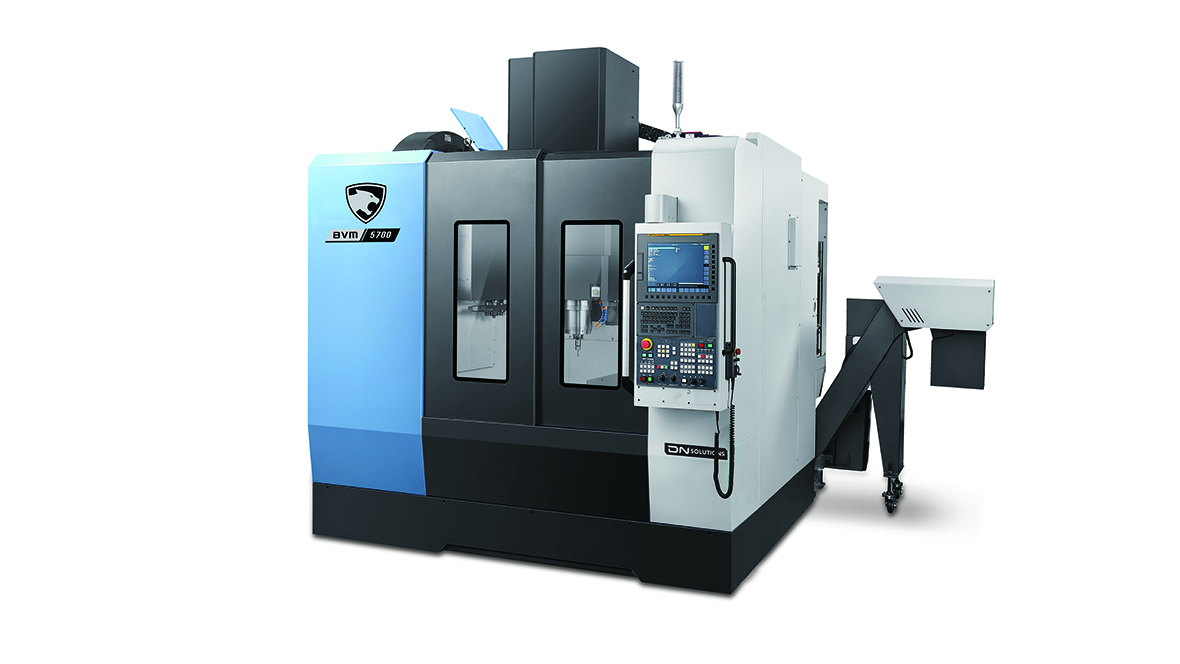

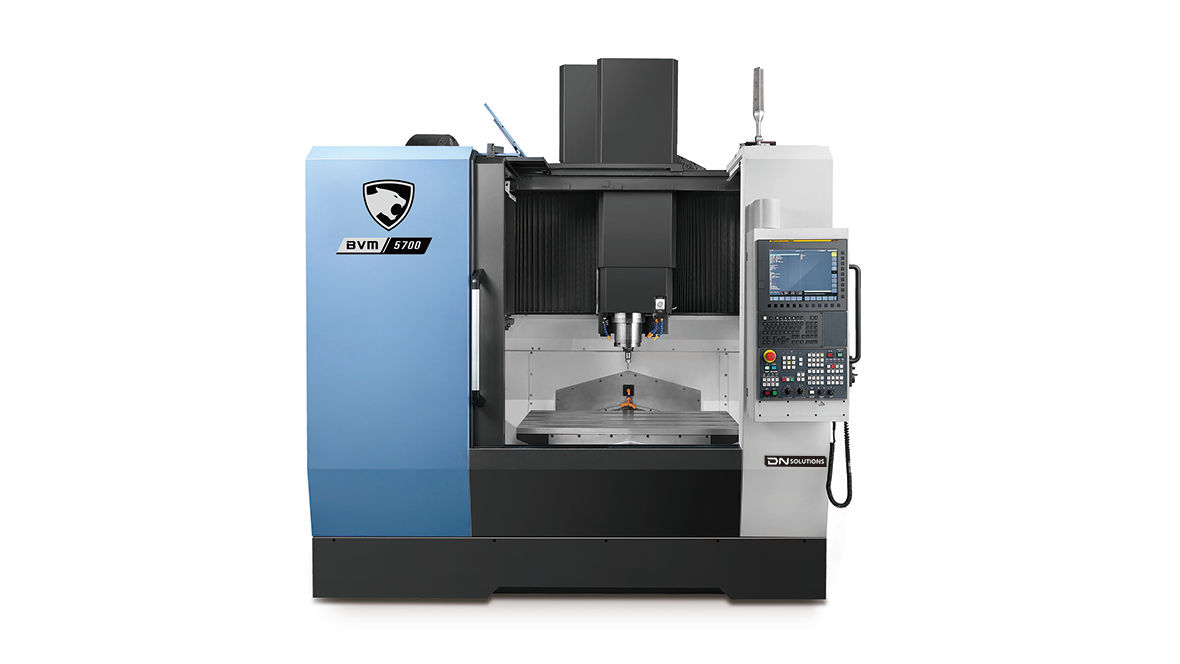

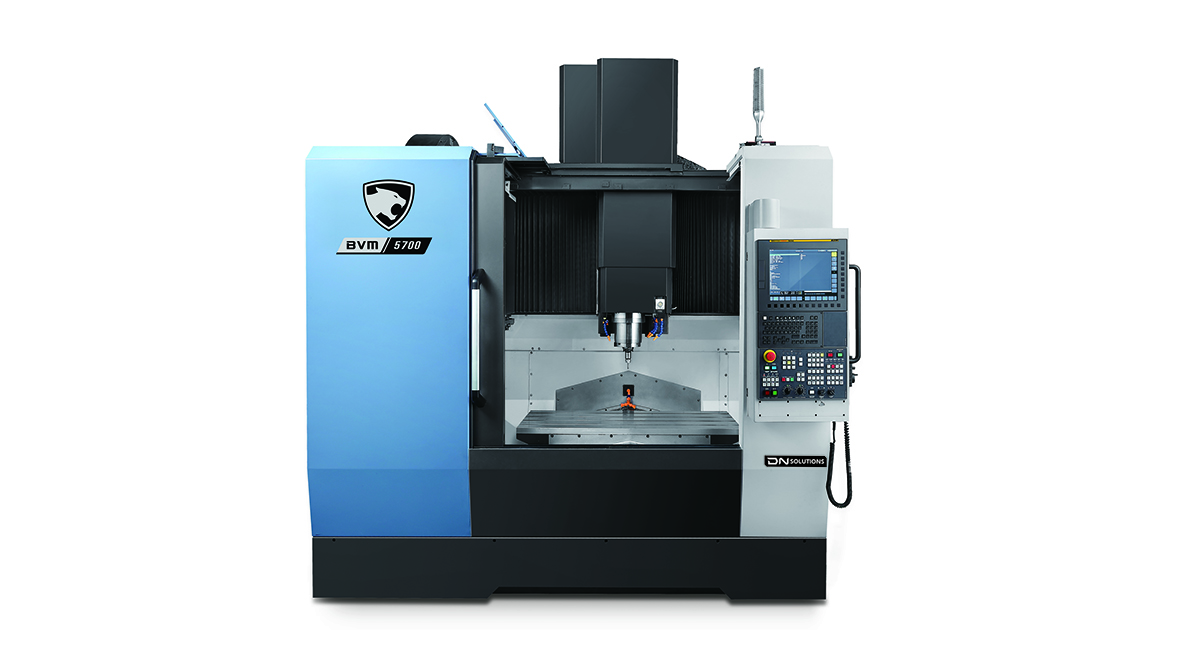

High-Precision Bridge Type Vertical Machining Center

13
Optimized for highly demanding die/mold operations, the BVM SERIES is a high-speed vertical machining center equipped with a Stable Bridge Type structure and a spindle of 15000r/min guaranteeing outstanding reliability in both precision and strength.

Highlight

Reliability

Shortened Machining Time

High Productivity

Stability

Optimized for die/mold operations

Stable Bridge Type structure

a high-speed built-in spindle of 15000r/min

High speed/high precision control

Improved feed stability and surface quality in machining process

Improved processing precision through the application of a thermal displacement correcting function

An eco-friendly machine tool characterized by high-quality processing and easy operability

Standard application of nut cooling to improve precision

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

DIMENSIONS

Length

Height

Width

Weight

BVM 5700

1050 mm

570 mm

460 mm

42 m/min

42 m/min

36 m/min

15000 r/min

15 kW

214 N·m

ISO #40

1300 mm

570 mm

1000 kg

3080 mm

2890 mm

2560 mm

7500 kg
