Die&Mold

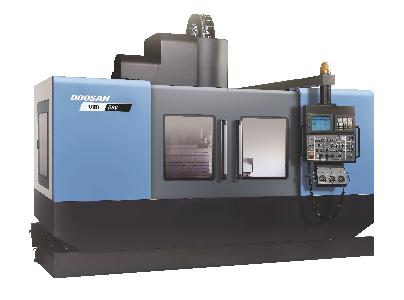

VM series
High Performance Vertical Machining Centers for Die / Mold Machining
Designed for both roughing and finishing, the VM Series comprises a number of machines with different sizes, capacities and capabilities.
TThe new machine design improves operator convenience and helps improve productivity an operational efficiencies.
Highlight
Reliability
High Precision
Stability
Broad product line-up designed for customers’ different requirements
Complete line-up comprises
VM 750(L) / VM 960 (L) / VM 1260 models
Highest reliability realized through excellent build quality and a wide range of spindle speeds
Dual contact spindle (standard)
Gear Type: 6000 r/min, 8000 r/min
Built-in Type: 12000 r/min
Control solution for processing high-quality molds
High-speed, high-precision contour control
Tool monitoring
Optimal feed control
Model Specifications
The suggested is a global standard specification and it may vary by country.
X Axis Rapid Traverse
Z Axis Rapid Traverse
X Axis Travel distance
Y Axis Travel distance
Z Axis Travel distance
Rapid Traverse
X Axis Rapid Traverse
Y Axis Rapid Traverse
Z Axis Rapid Traverse
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Tool Taper
Table Length
Table Width
Pallet Size
Rotary Table Diameter
Maximum Workpiece weight
No. of tool station
Length
Height
Width
Weight

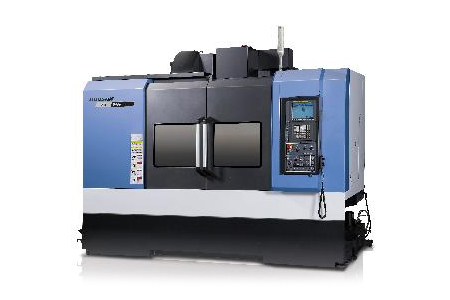

VM 560
1050 mm
560 mm
560 mm
30 m/min
30 m/min
24 m/min
12000 r/min
18.5 / 22 kW
204 N·m
ISO #50
1600 mm
560 mm
1500 kg
30 ea
3990 mm
3240 mm
3800 mm
9000 kg

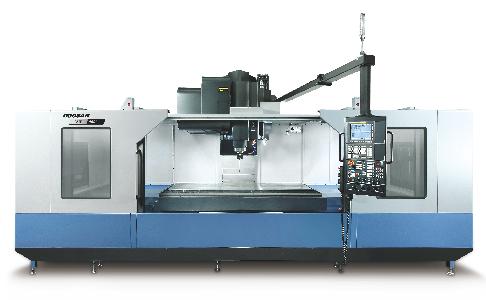

VM 750
1500 mm
750 mm
800 mm
20 m/min
20 m/min
20 m/min
6000 (8000, 12000) r/min
18.5 (22/26/30) kW
587.9 (699.1 / 826.2 / 420.2) N·m
ISO #50
1600 mm
800 mm
3000 kg
30ea (40ea)
4971 (5180) mm
3545 mm
4900 (4766) mm
14000 kg
VM 750L
1800 mm
750 mm
800 mm
20 m/min
20 m/min
20 m/min
6000 (8000, 12000) r/min
18.5 (22/26/30) kW
587.9 (699.1 / 826.2 / 420.2) N·m
ISO #50
1900 mm
800 mm
3500 kg
30ea (40ea)
4971 (5180) mm
3545 mm
5500 (5126) mm
14800 kg

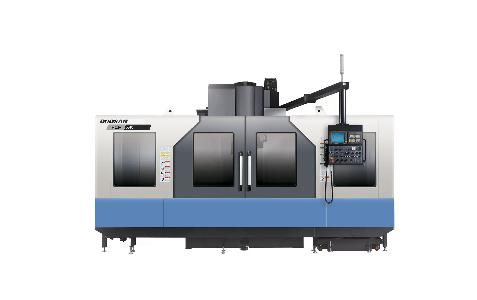

VM 960
2000 mm
960 mm
800 mm
16 m/min
16 m/min
16 m/min
6000 (8000, 12000) r/min
18.5 (22/26/30) kW
587.9 (699.1 / 826.2 / 420.2) N·m
ISO #50
2400 mm
950 mm
4000 kg
30ea (40ea)
5138 (5392) mm
3545 mm
6400 (6016) mm
20000 kg

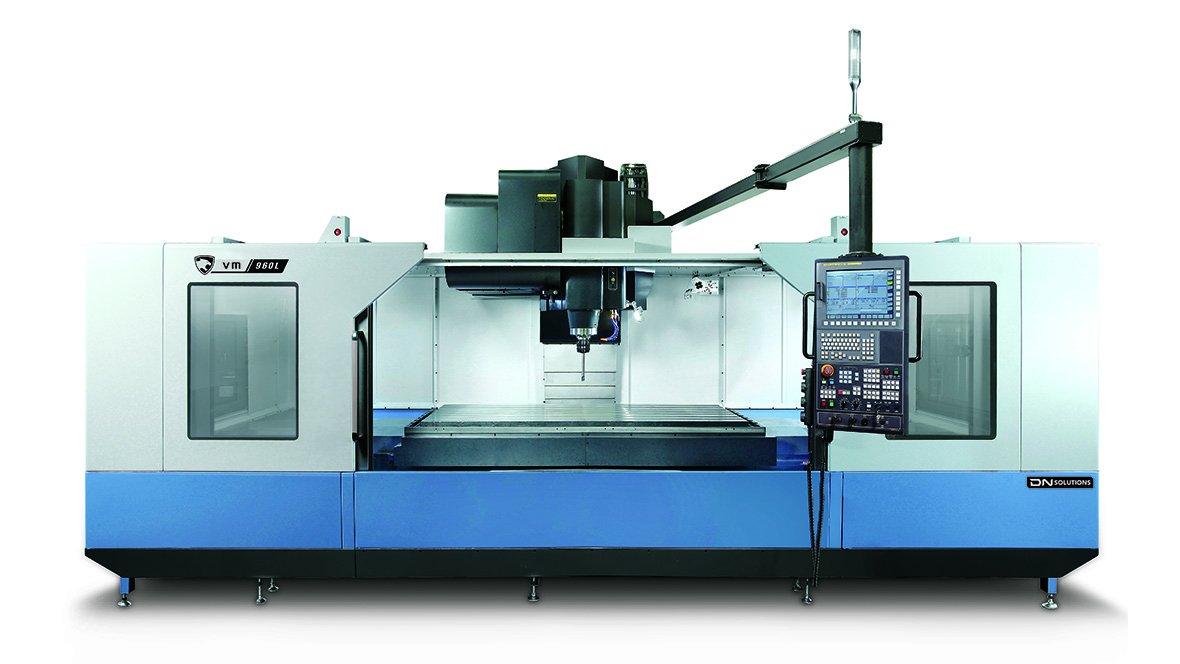

VM 960L
2400 mm
960 mm
800 mm
16 m/min
16 m/min
16 m/min
6000 (8000, 12000) r/min
18.5 (22/26/30) kW
587.9 (699.1 / 826.2 / 420.2) N·m
ISO #50
2600 mm
950 mm
4500 kg
30ea (40ea)
5138 (5392) mm
3545 mm
6800 (6416) mm
21000 kg

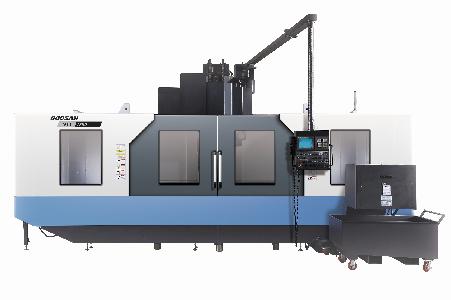

VM 1260
2500 mm
1260 mm
900 mm
12 m/min
12 m/min
12 m/min
8000 (12000) r/min
22 (26/30) kW
699.1 (826.2 / 420.2) N·m
ISO #50
2800 mm
1260 mm
8000 kg
40 ea
5645 mm
3930 mm
6938 mm
31000 kg

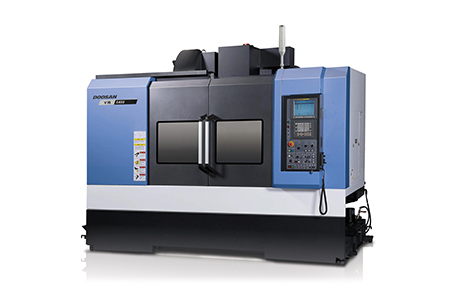

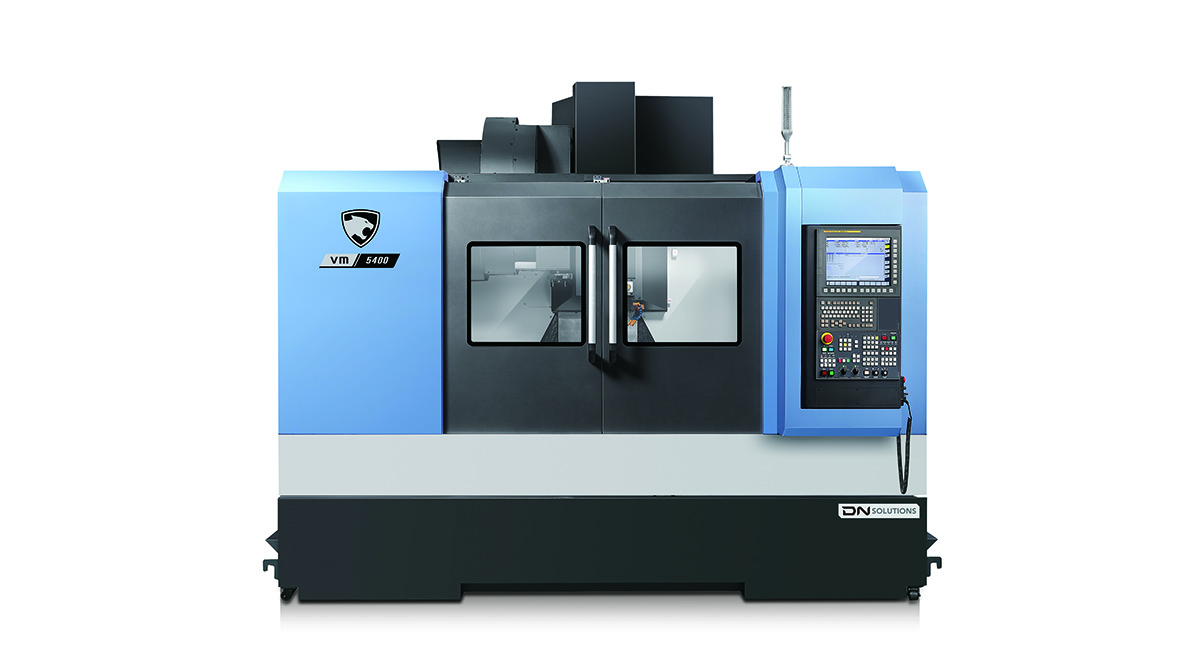

VM 5400
1020 mm
540 mm
530 mm
30 m/min
30 m/min
24 m/min
12000
15.6 kW
165.5 N·m
ISO #40
1200 mm
540 mm
800 kg
30ea (40ea)
2444 mm
2855 mm
3350 mm
7000 kg

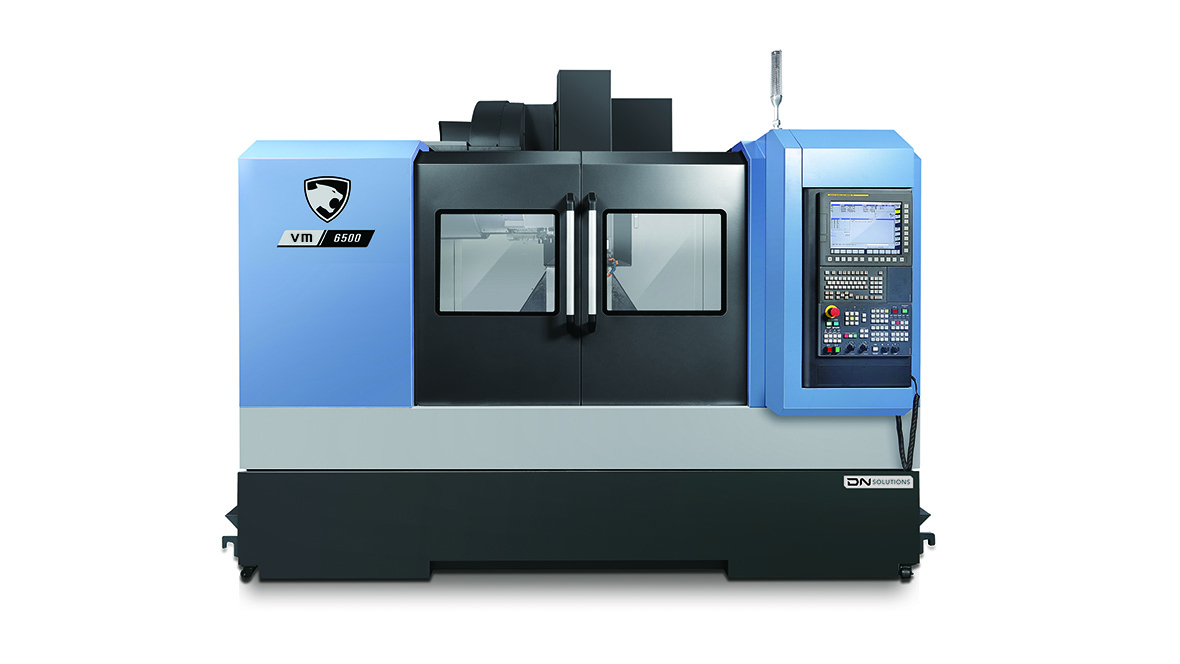

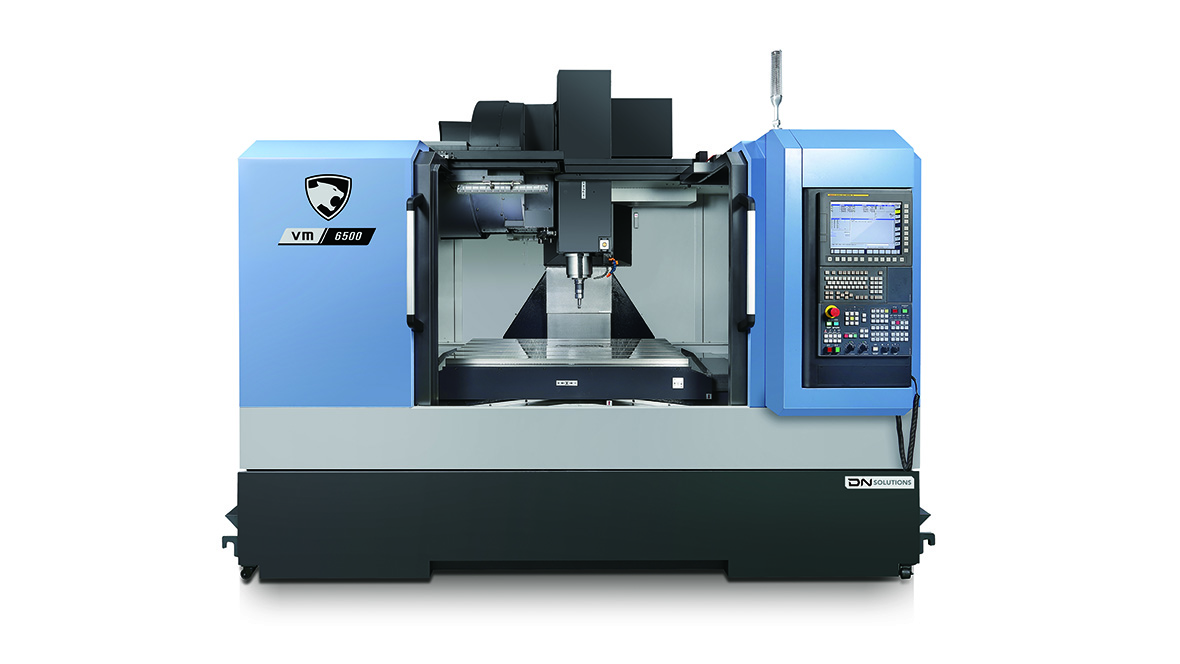

VM 6500
1270 mm
670 mm
625 mm
30 m/min
30 m/min
24 m/min
12000 r/min
15.6 kW
165.5 N·m
ISO #40
1400 mm
670 mm
1000 kg
30ea (40ea)
2674 mm
2950 mm
3350 mm
9000 kg
VM 84
2000 mm
840 mm
800 mm
16 m/min
16 m/min
16 m/min
6000 r/min
18.5 kW
587.6 N·m
2200 mm
810 mm
2500 kg
30 ea
4897 mm
3450 mm
6350 mm
15000 kg
