Die&Mold

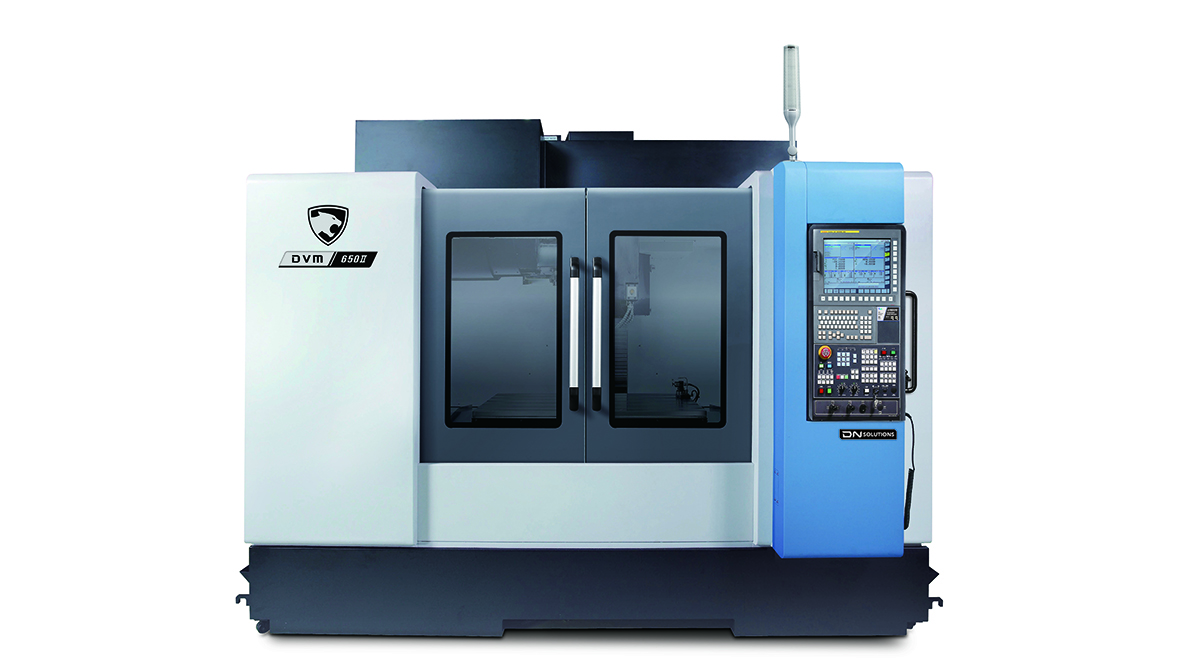

DVM series

High precision Die / Mold Vertical Machining Centers

12
These high-rigidity machining centers are designed for the high-productivity machining of precision mold tools and dies, and their powerful spindles facilitate high removal rates and the heavy-duty machining of tough materials.

Highlight

Reliability

High Precision

Stability

High-rigidity C-frame

Improved and longer-lasting performance is assured via a static pressure spindle

Door width has been expanded and now features two-door access

High-speed high-precision built-in spindle

High-speed precision contour control and optimised feed rate control contribute to high levels of workpiece accuracy and quality.

High-efficiency chip management and control

Different swarf management systems and their chip removal capabilities help improve productivity, performance and process reliability.

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

TOOL STORAGE CAPACITY

No. of tool station

DIMENSIONS

Length

Height

Width

Weight

DVM 500 II

1020 mm

540 mm

510 mm

30 m/min

30 m/min

30 m/min

20000 r/min

11 / 22 kW

60 N·m

ISO #40, 7/24 TAPER

1200 mm

540 mm

800 kg

30 ea

2462 mm

2789 mm

3350 mm

6500 kg

DVM 650 II

1270 mm

670 mm

625 mm

30 m/min

30 m/min

30 m/min

20000 r/min

11 / 22 kW

60 N·m

ISO #40, 7/24 TAPER

1300 mm

670 mm

1000 kg

30 ea

2692 mm

2905 mm

3350 mm

8500 kg
