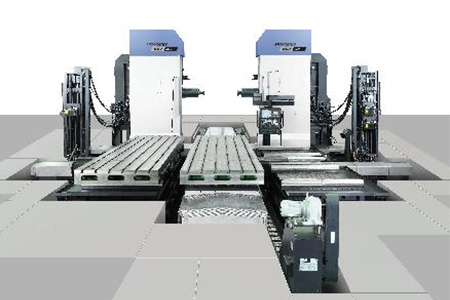

Duplex NC Broing Machine

DBD series

Double-ended boring machine for symmetrical workpieces

12
Twin opposed spindles optimized for concentric boring.
High-precision and high-productivity are assured via the simultaneous
and bi-directional machining of long and symmetrical workpieces

Highlight

Easy to Operate

High Productivity

High Precision

Stability

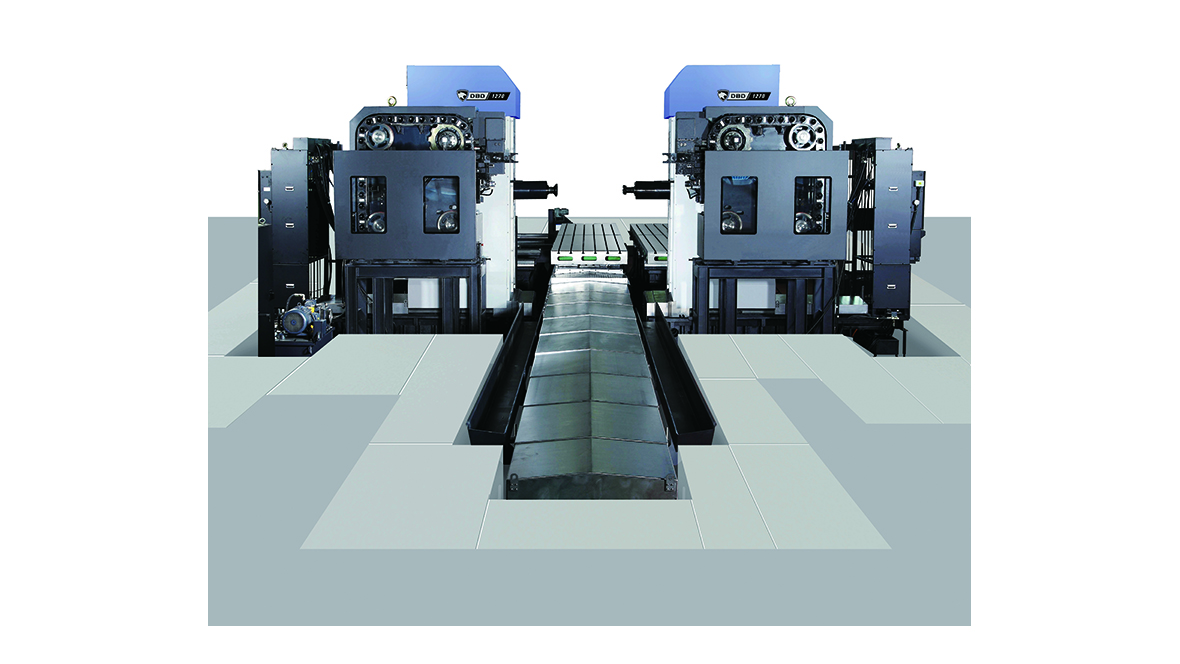

Concentric machining through the duplex spindle

Max Spindle 2500 r/min

Motor 26/22 kW

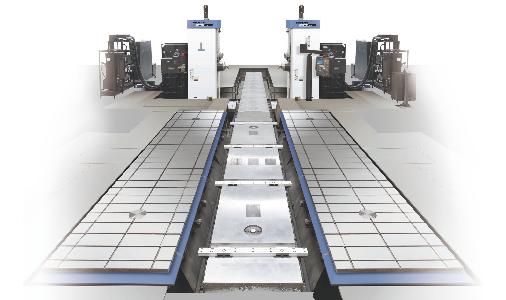

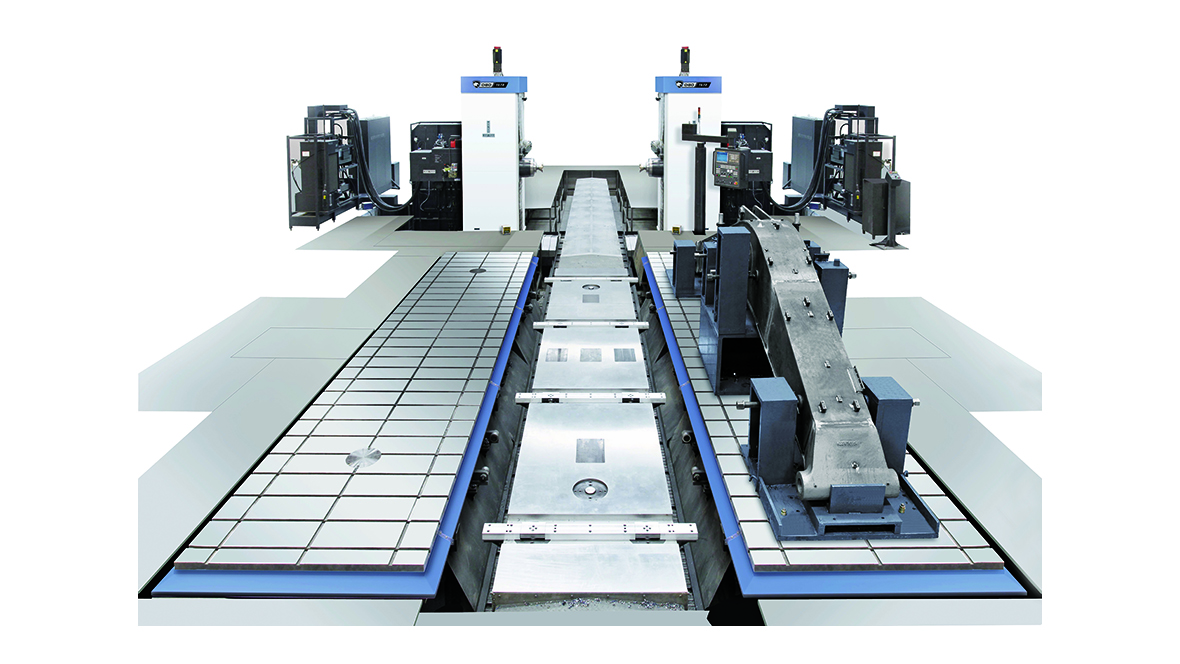

Big table for long and symmetrical machining Wide work area through axis extension

DBD 1270: 1250 × 7000 mm

DBD 1580: 1500 × 8000 mm

Servo-driven tool magazine delivers greater reliability, high-speed and smooth operation and reduced noise

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

DIMENSIONS

Length

Height

Width

Weight

DBD 1270

7000 mm

1500 mm

1000 mm

2000 r/min

26/22 kW

7000 mm

1250 mm

10000 kg

19100 mm

4500 mm

10400 mm

58000 kg

DBD 1580

8000 mm

2000 mm

450 mm

2500 r/min

26/22 kW

8000 mm

1500 mm

10000 kg

20900 mm

6000 mm

10000 mm

86000 kg
