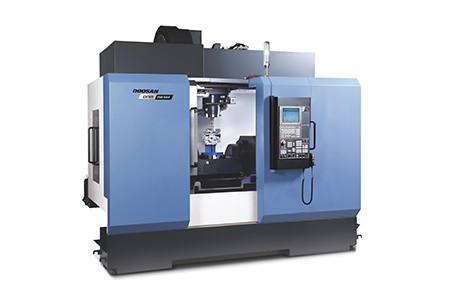

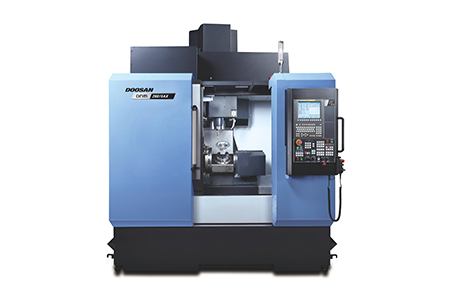

Vertical 5-Axis Machining Centers

DNM 5AX series

High Productivity Full 5-Axis or 5-Face Machining

13
A high-performance, efficient, flexible and high-accuracy 5-axis machining center - ideal for customers new to the technology. Compact, productive and designed and built on DN Solutions’ classic DNM architecture.

Highlight

Easy to Operate

Cost Effective

High Precision

Multitasking Capability

Optimized column and bed design

High feed rate and precision achieved via the optimized column and bed design.

Direct-coupled spindle

Minimized noise and vibration

High-speed and heavy-duty cutting

High-precision travel system

Roller-type LM guideways

High-rigidity coupling

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

TOOL STORAGE CAPACITY

No. of tool station

DIMENSIONS

Length

Height

Width

Weight

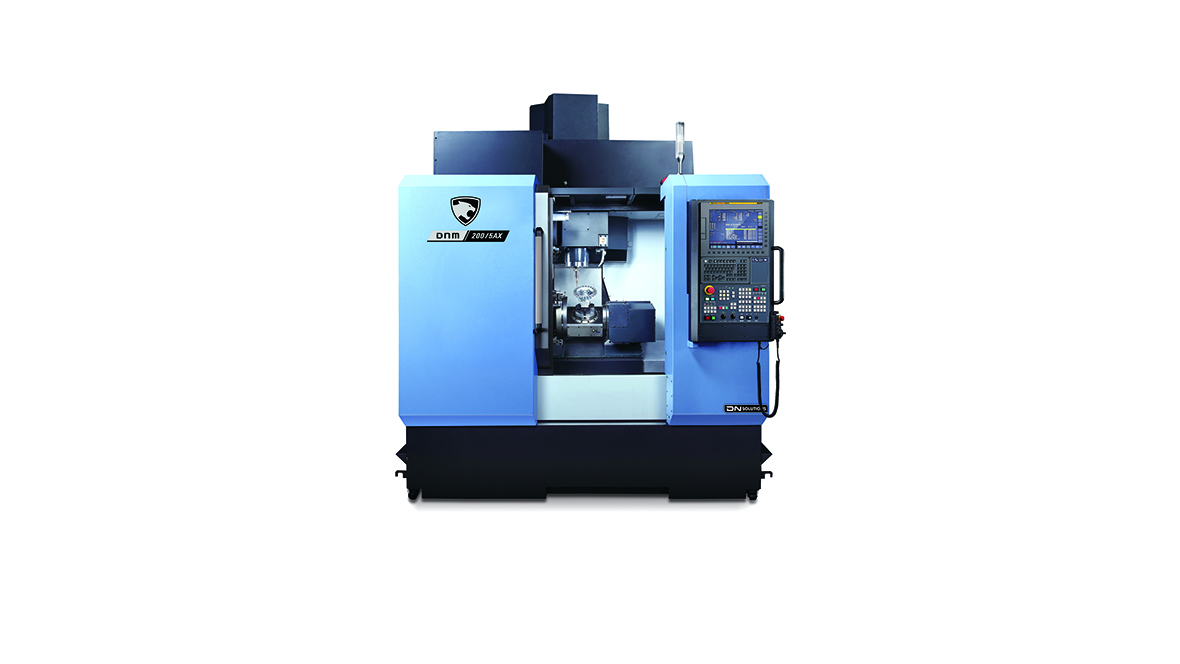

DNM 200/5AX

400 mm

435 mm

500 mm

36 m/min

36 m/min

30 m/min

12000 r/min

11.2/18.6 kW

117 N·m

ISO #40, 7/24 TAPER

200 mm

40 kg

30 ea

2836 mm

3300 mm

2465 mm

5500 kg

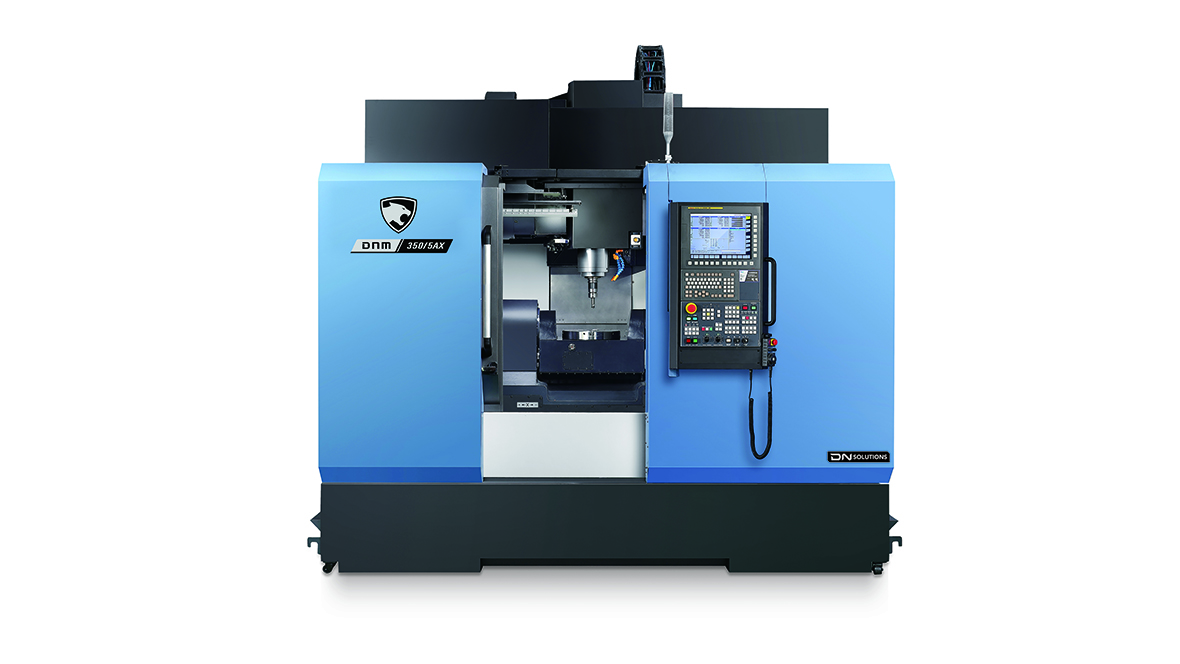

DNM 350/5AX

400 mm

655 mm

500 mm

36 m/min

36 m/min

30 m/min

12000 r/min

11.2/18.6 kW

117 N·m

ISO #40, 7/24 TAPER

350 mm

250 kg

30 ea

3209 mm

3109 mm

3150 mm

8500 kg
