Vertical 5-Axis Machining Centers

DVF series

5-Axis VMC for complex parts

112
DVF 5000 5-axis machining centres are designed for component manufacturers looking to machine high-precision, complex parts in one hit. Equipped with leading edge technology and supplied ‘automation- ready’, these machines will take your productivity and performance to a whole new level.

Highlight

Easy to Operate

High Precision

Multitasking Capability

Stability

Solutions for complex shapes

12000 / 18000 r/min high-speed spindle

2-axis tilting table from Ø500 mm to Ø800

Table turning function : DVF 6500T / DVF 8000T

High torque spindle of 426 N.m : DVF 8000T/50

High-precision

Tool length measurement probe is provided as standard.

Integrated thermal compensation systems for spindle and structure

Spindle cooling provided as standard

User-friendly machine

The tool magazine is able to hold up to 120 tools and the multi-pallet system facilitates unmanned running.

Compact automation systems are available (AWC, RPS, LPS)

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

TOOL STORAGE CAPACITY

No. of tool station

DIMENSIONS

Length

Height

Width

Weight

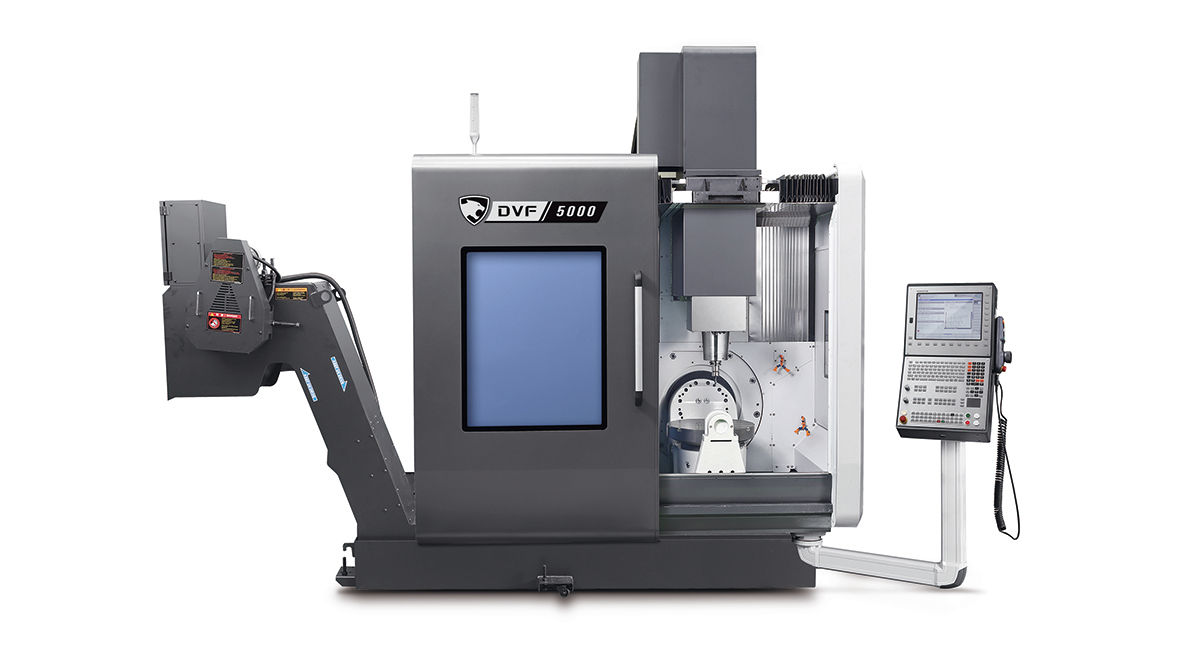

DVF 5000

625 mm

450 mm

400 mm

40 m/min

40 m/min

40 m/min

12000 {18000} r/min

18.5 /11 kW

117 N·m

ISO #40

500 mm

400 kg

30 ea

2700 mm

2890 mm

2205 mm

7500 kg

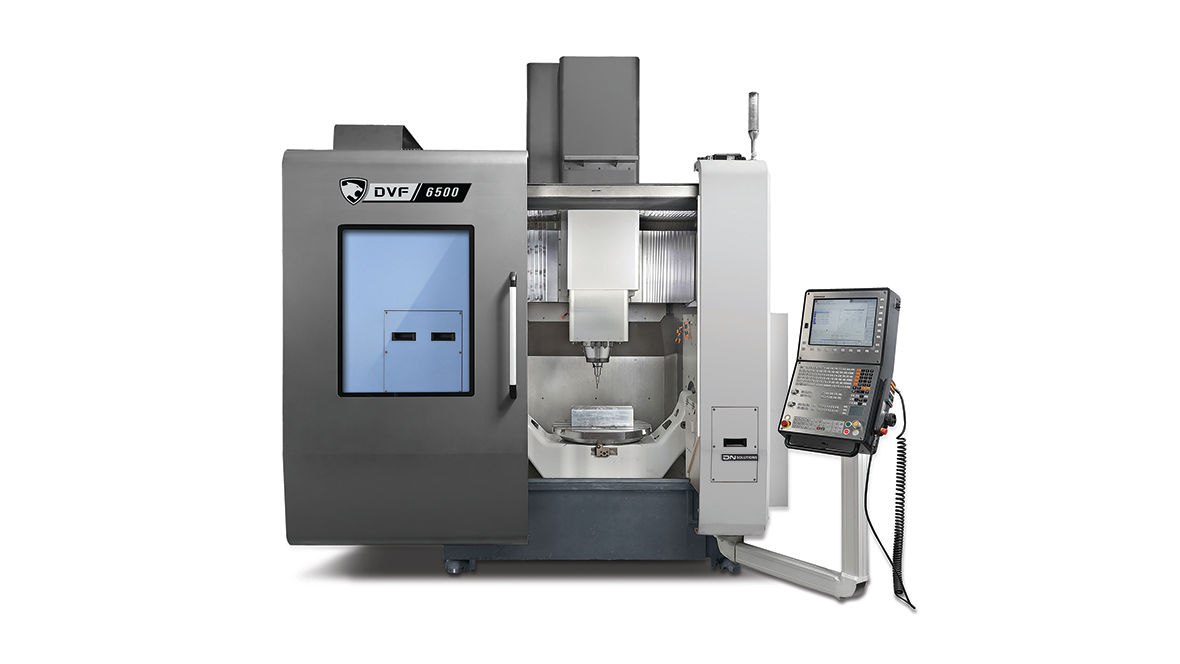

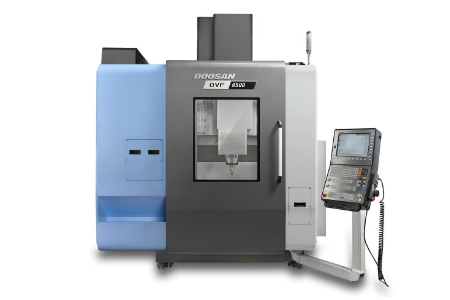

DVF 6500

750 mm

785 mm

600 mm

45 m/min

45 m/min

45 m/min

12000 {18000} r/min

22/18.5 kW

204 N·m

ISO #40

650 mm

600 kg

40 ea

3700 mm

3100 mm

2450 mm

14500 kg

DVF 6500T

750 mm

785 mm

600 mm

45 m/min

45 m/min

45 m/min

18000 r/min

22/18.5 kW

118 N.m

ISO #40

650 mm

500 kg

60 ea

3700 mm

3255 mm

2450 mm

12500 kg

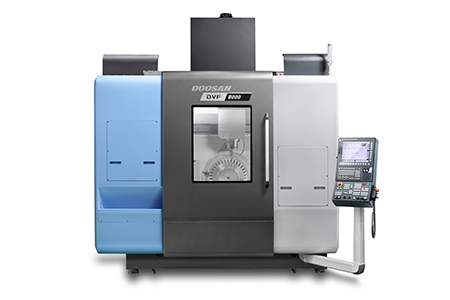

DVF 8000

1000 mm

900 mm

685 mm

45 m/min

45 m/min

45 m/min

12000 {18000} r/min

22/18.5 kW

204 N·m

ISO #40

800 mm

1400 kg

40 ea

4097 mm

3670 mm

2950 mm

14500 kg

DVF 8000T

1000 mm

900 mm

685 mm

45 m/min

45 m/min

45 m/min

18000 r/min

22/18.5 kW

118 N·m

HSK T63

800 mm

700 kg

40 ea

4097 mm

3670 mm

2950 mm

14500 kg

DVF 8000T/50

1000 mm

900 mm

800 mm

36 m/min

36 m/min

30 m/min

10000 r/min

37 kW

426 N.m

HSK-T100

800 mm

700 kg

40 ea
