Fixed Crossrail

BM series

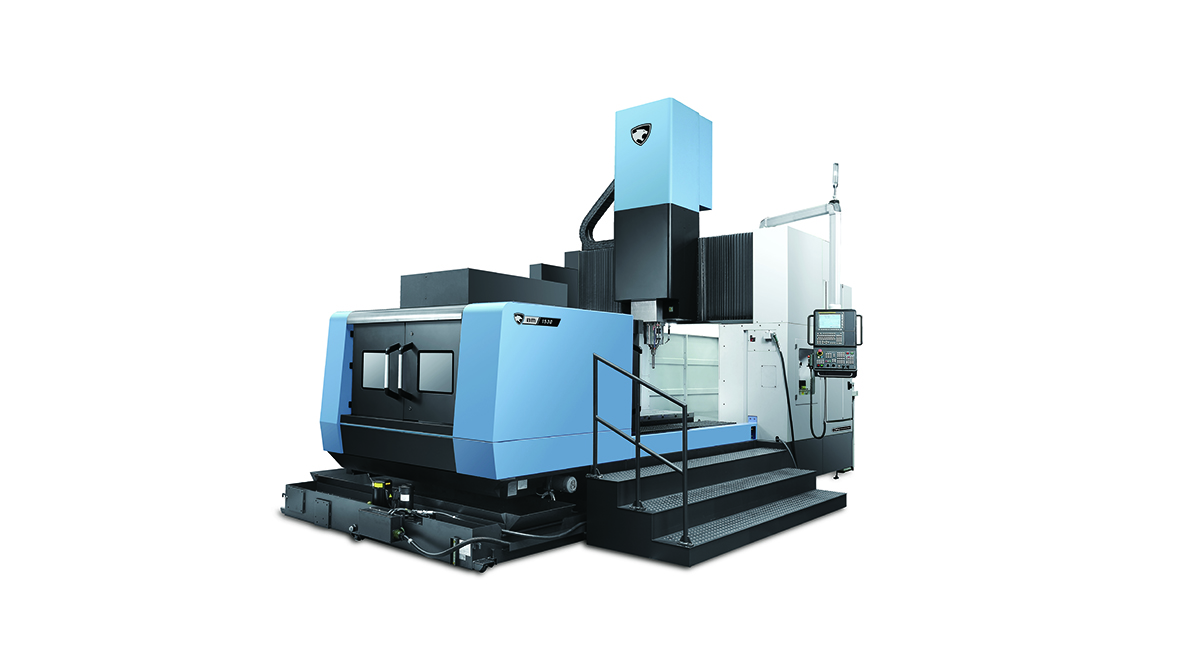

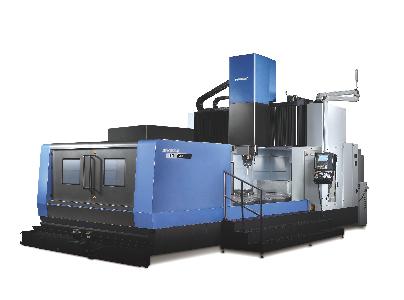

Accurate and rigid bridge type vertical machining center

16
Manufacturers that machine large, oversized dies and mold tools (i.e. press tools, injection told tools etc.), for the automotive sector need high-performance and high-accuracy machine tools. As a result many have invested in our BM series of machines.

Highlight

Easy to Operate

High Productivity

High Precision

Stability

Equipped with a high-speed, high-rigidity spindle as standard

12000 r/min high-speed spindle

Long-nose type ideal for deep pocket mold machining

Equipped with a dual contact spindle as standard for high rigidity and minimum vibration.

Standard feed axis equipment for higher level of precision

All axes provided with a linear scale as standard

Ball screw bearings and nut cooling system.

Machine’s structure and control are the ideal solution for high-quality mold cutting

Covers provided to minimize the impact of ambient temperature variations.

Thermal displacement compensation for spindle and structure included as standard.

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

DIMENSIONS

Length

Height

Width

Weight

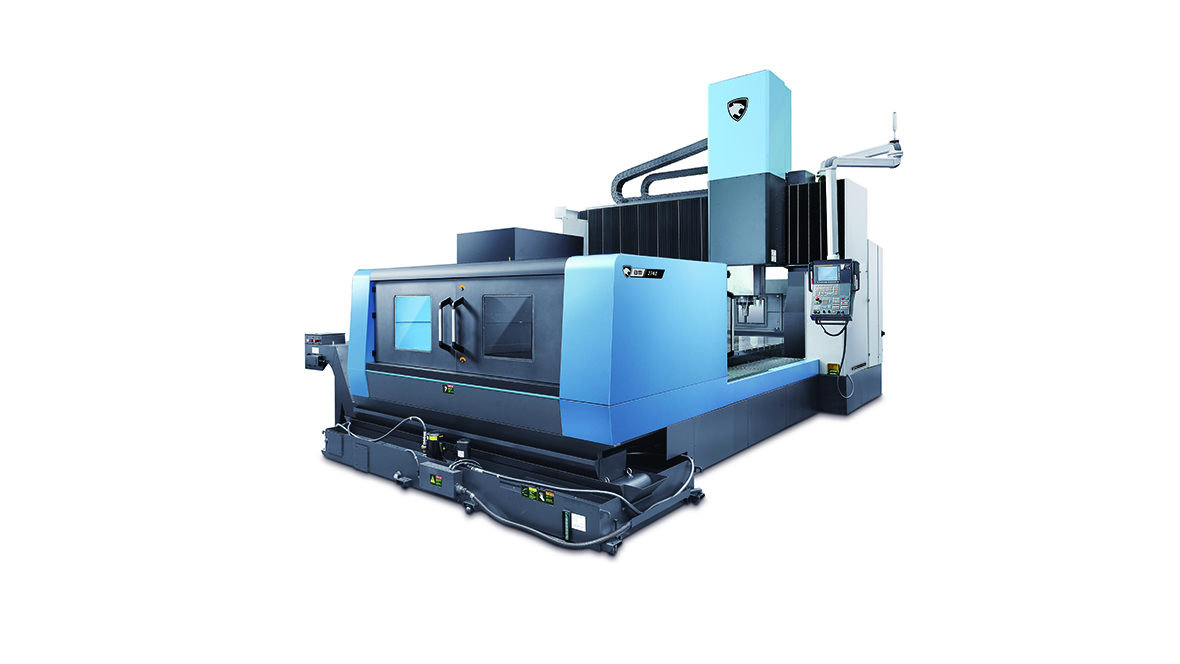

BM 1530

1700 mm

3000 mm

1550 mm

800 mm

16 m/min

16 m/min

16 m/min

8000 r/min

30 kW

600 N·m

3000 mm

1350 mm

8000 kg

5542 mm

4770 mm w/o riser

10945 mm

29000 kg

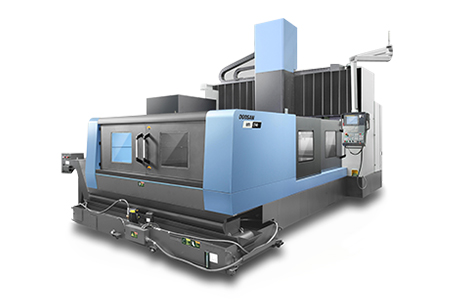

BM 1530M

1700 mm

3000 mm

1550 mm

800 mm

16 m/min

16 m/min

16 m/min

12000 r/min

30 kW

450 N·m

3000 mm

1350 mm

8000 kg

5542 mm

4770 mm w/o riser

10945 mm

29000 kg

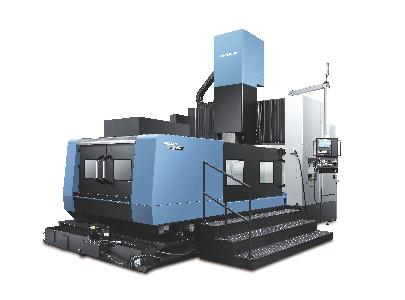

BM 2035

2200 mm

3500 mm

2050 mm

800 mm

16 m/min

16 m/min

16 m/min

8000 r/min

30 kW

600 N·m

3500 mm

1850 mm

10000 kg

5944 mm

4770 mm w/o riser

11963 mm

35516 kg

BM 2035M

2200 mm

3500 mm

2050 mm

800 mm

16 m/min

16 m/min

16 m/min

12000 r/min

30 kW

420 N·m

3500 mm

1850 mm

10000 kg

5944 mm

4770 mm w/o riser

11963 mm

35516 kg

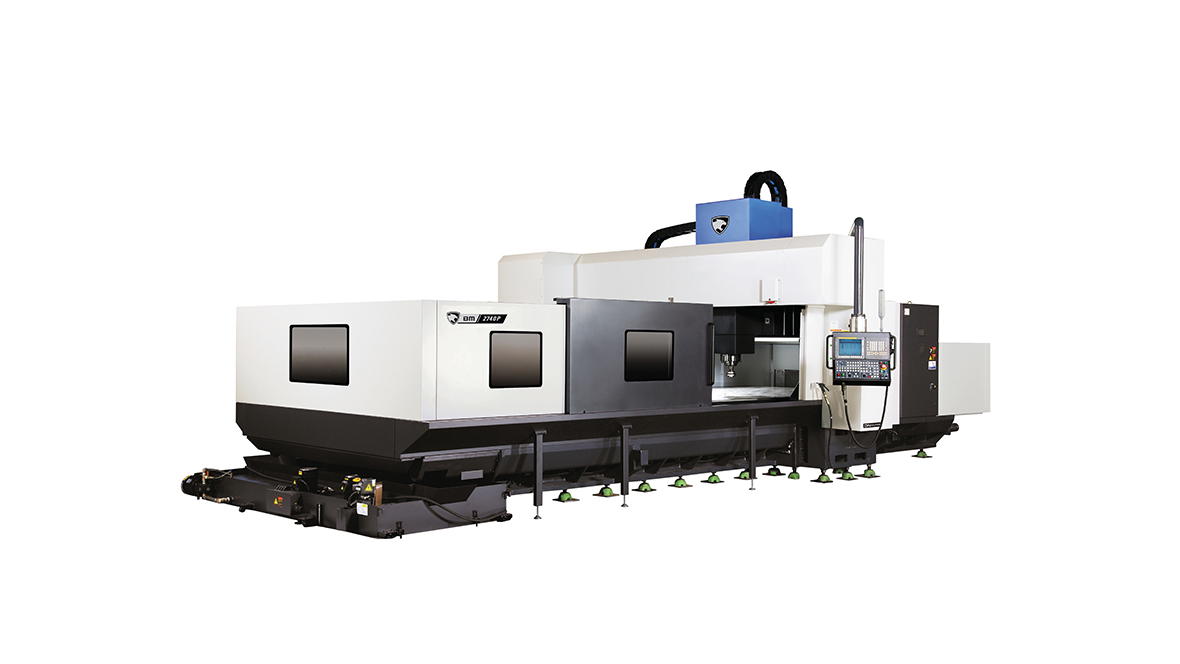

BM 2740

2700 mm

4000 mm

2700 mm

800 mm

16 m/min

24 m/min

24 m/min

10000 r/min

30 kW

420 N·m

4000 mm

2500 mm

10000 kg

6637 mm

4435 mm w/o riser

13459 mm

47990 kg

BM 2740M

2700 mm

4000 mm

2700 mm

800 mm

12 m/min

16 m/min

16 m/min

12000 r/min

30 kW

420 N·m

4000 mm

2500 mm

15000 kg

6637 mm

4435 mm w/o riser

13459 mm

47990 kg

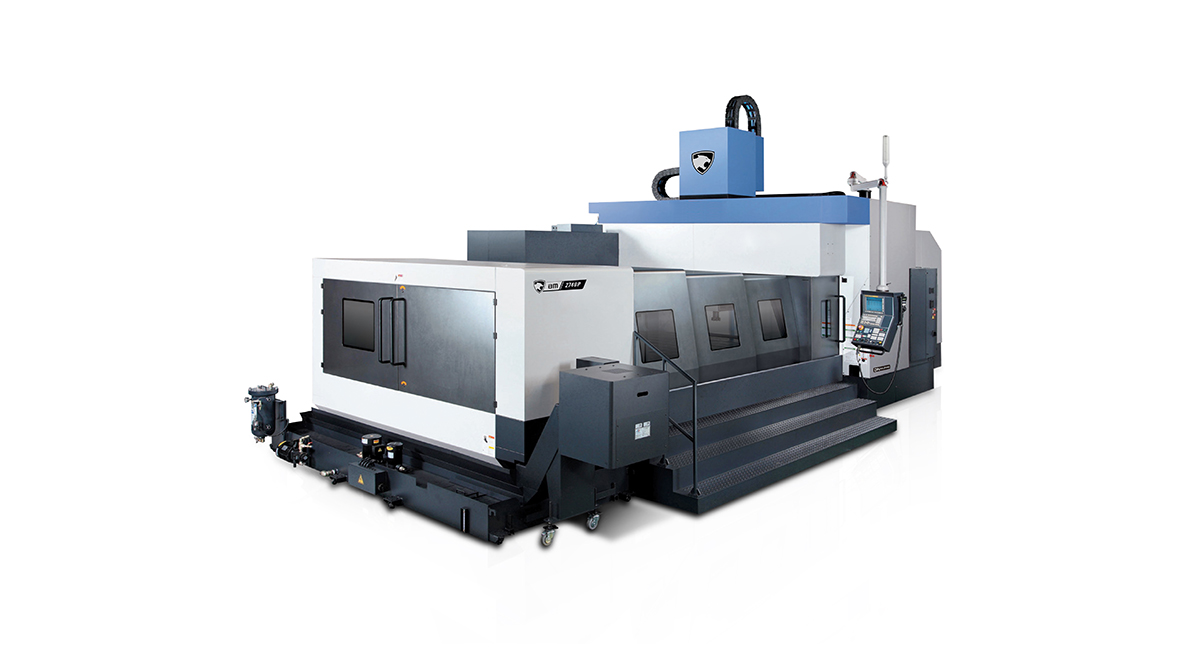

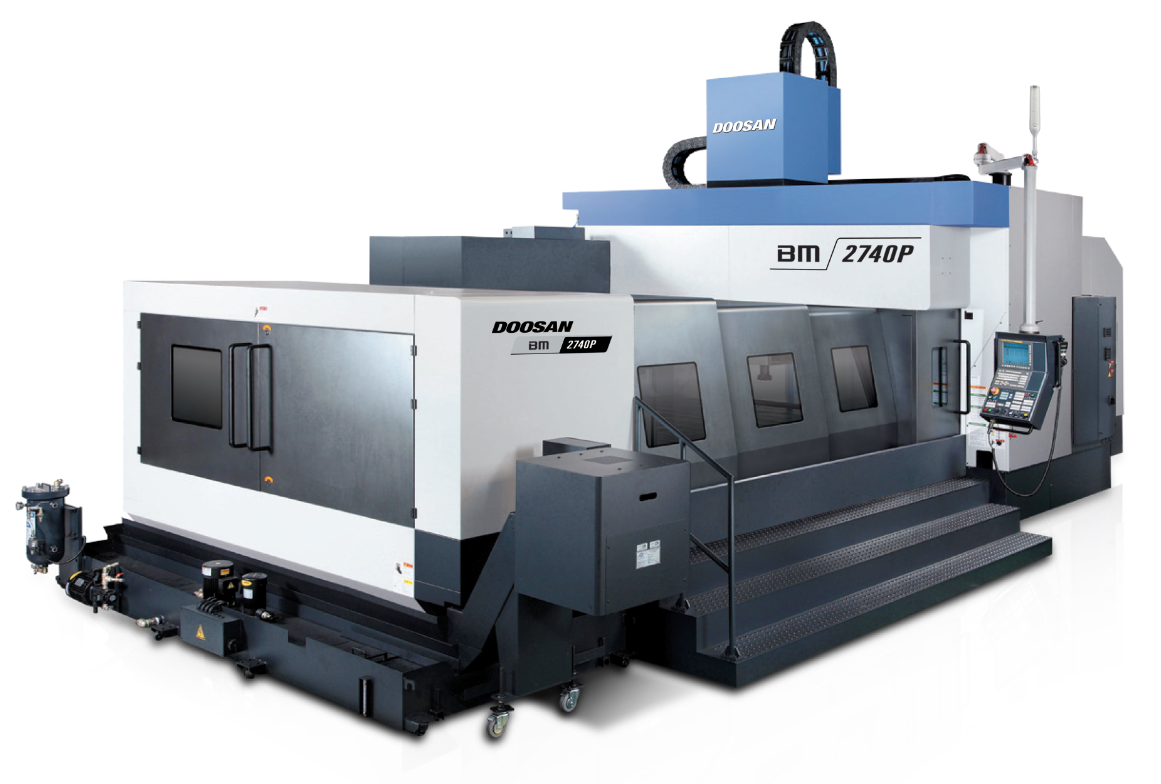

BM 2740P

2700 mm

4000 mm

2700 mm

500 mm

16 m/min

24 m/min

36 m/min

12000 r/min

22 kW

204

4000 mm

2500 mm

3000 kg

5721 mm

3760 (w/o raiser)

10825 mm

38000 kg

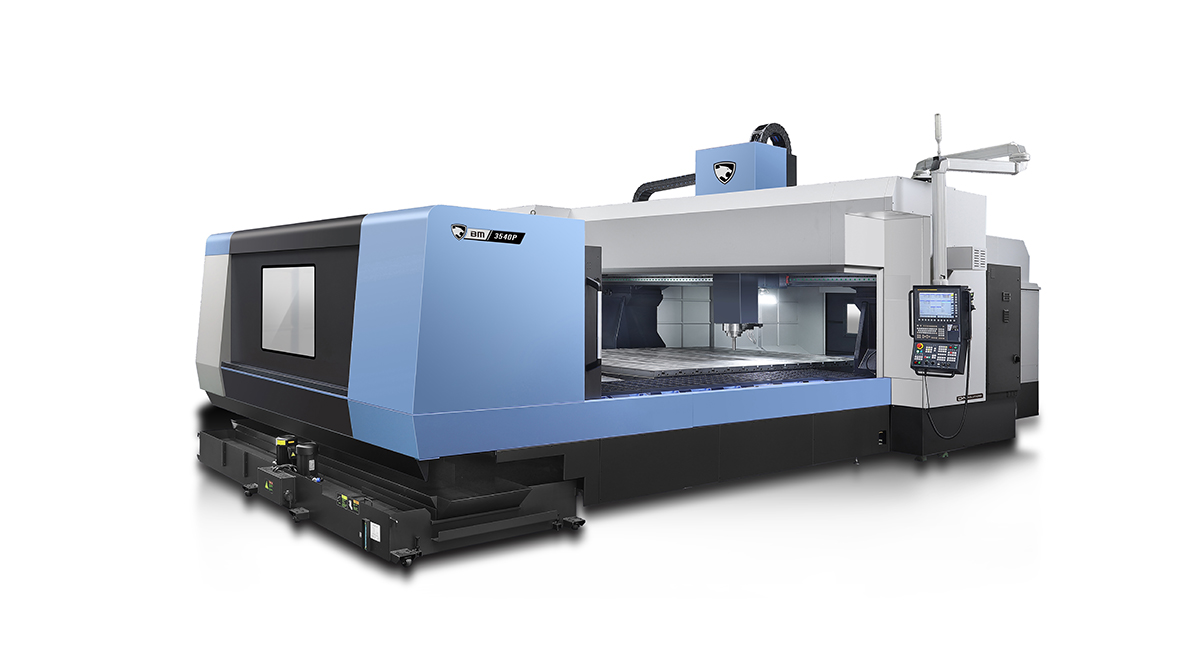

BM 3540P

2700 mm

4000 mm

3500 mm

500 mm

16 m/min

24 m/min

36 m/min

12000 r/min

22 kW

204 N.m

4000 mm

2500 mm

3000 kg

6524 mm

3840 mm

10825 mm

41000 kg
