PUMA ST32GSII

METRICIMPERIAL

Chuck size: TF37 mm; TF37 inch

Max. Turning Diameter: 32 mm; 1 inch

Max. Turning Length: 300 mm; 12 inch

PUMA ST GS II series

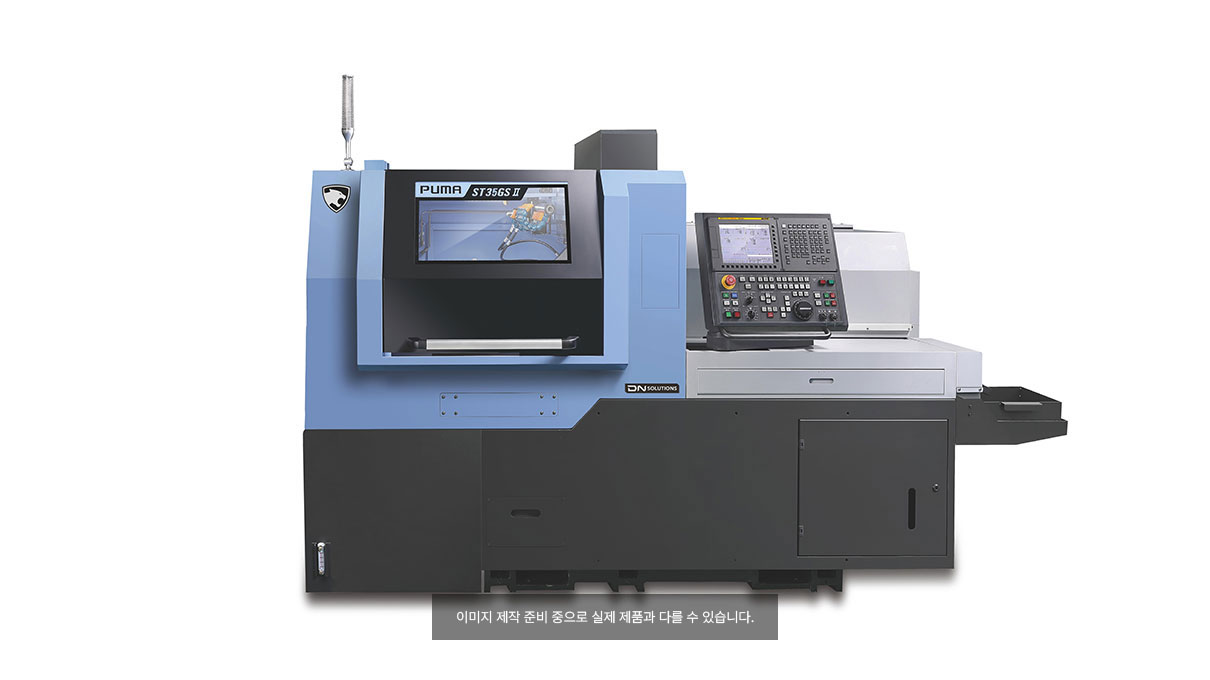

Swiss Type Turning Center, Excellent for Continuous Precision Machining

The Swiss-type turning center is optimized for mass production of small and
complex parts such as those found, and used, in the watch making and medical device industries.

Reliability

Excellent Machining Capability

Faster Machining

Stability

Highlights

�

� �

�

� 다양한 가공 공정을 수행할 수 있는 공작기계 솔루션을 제공합니다�

� �

� 직경 Ø20mm~ 적합합니다Ø38mm

�

� �

�

� 메인 스핀들에는 모터가 내장되어 있어 보다 정밀한 가공이 가능합니다.

�

� �

�

� �

�

� �

�

� 컴팩트한 설치 공간 내에서 표준으로 4개의 교차 회전 도구 홀더가 특징입니다.

� �

� 고효율 밀링 및 기타 특수 가공 공정에 최대 �

�

� �

�

� CBS(Chip Breaking Solution) 표준을 채택하여 축의 반복 이송을 통해 칩 브레이킹 작업을 수행할 수 있게 되었습니다.�

� �

� 다양한 가공방법
지원 R가공, 홈가공, 절삭, 드릴링 등 다양한 모드를 지원합니다.

� �

� 모든 Swiss-turn 모델에
적용 가능하며 이하 터닝센터 모델 에도 적용 가능

� �

� 나사산 절단 )지원

�

� �

�

Product Specifications

These specifications are based on the global standard and may differ by region.

CAPACITY

Chuck size Max. Turning Diameter Max. Turning Length

TRAVELS

X-Axis Rapid Traverse Z-Axis Rapid Traverse X-Axis Travel Distance Z-Axis Travel Distance Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed Max. Spindle Power Max. Spindle Torque

SUB SPINDLE

Max. Spindle Speed Max. Spindle Power

TOOL POST

No. of tool station

DIMENSIONS

Length Height Width Weight

TF15 mm 10 mm 120 mm

32 m/min 32 m/min 91 mm 120 mm 32 m/min

12000 r/min 3.7 kW - N·m

10000 r/min 3.7 kW

22 ea

1932 mm 1714 mm 925 mm 1900 kg

TF25 mm 20 mm 200 mm

32 m/min 32 m/min 90 mm 200 mm 32 m/min

10000 r/min 3.7 kW - N·m

8000 r/min 3.7 kW

23 ea

2367 mm 1733 mm 1245 mm 2600 kg

TF32 mm 26 mm 200 mm

32 m/min 32 m/min 90 mm 200 mm 32 m/min

8000 r/min 5.5 kW - N·m

8000 r/min 3.7 kW

22 ea

2367 mm 1733 mm 1245 mm 2650 kg

TF37 mm 32 mm 300 mm

32 m/min 32 m/min 114 mm 300 mm 32 m/min

8000 r/min 7.5 kW - N·m

8000 r/min 3.7 kW

22 ea

2800 mm 1850 mm 1470 mm 3500 kg

TF40-SL35 mm 35 mm 300 mm

32 m/min 32 m/min 114 mm 300 mm 32 m/min

8000 r/min 7.5 kW - N·m

8000 r/min 3.7 kW

21 ea

2800 mm 1850 mm 1470 mm 3500 kg

TF44-ST38 mm 38 mm 300 mm

32 m/min 32 m/min 114 mm 300 mm 32 r/min

8000 r/min 7.5 kW - N·m

8000 r/min 3.7 kW

21 ea

2800 mm 1850 mm 1470 mm 3500 kg
