Single Turret Two-Axis Horizontal
PUMA 2100/2600/3100 series
8"~12" High-performance Y-axis Horizontal Turning Center
the PUMA 2100/2600/3100 series is your ‘go-to’ turning center. The machines have been designed with single-set up efficiency and accuracy in mind.
Highlight
Shortened Machining Time
High Precision
Multitasking Capability
Stability
High performance
Upgraded structural rigidity
Reduced vibration and ensures dynamic rigidity
Powerful and precise machining
Y-axis complex machining
Y-axis capability enables the machining of complex shapes and features (PUMA 2100/2600Y models).
Improved user-friendly functionality
EOP
User-friendly operation panel
Simple maintenance function
Model Specifications
The suggested is a global standard specification and it may vary by country.
Chuck size
Max. Turning Diameter
Max. Turning Length
Distance between Columns
X Axis Rapid Traverse
Z Axis Rapid Traverse
X Axis Travel distance
Y Axis Travel distance
Z Axis Travel distance
Rapid Traverse
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
Tool Taper
Max. Spindle Speed
Max. Spindle Power
No. of tool station
Rotary Tool r/min
Length
Height
Width
Weight

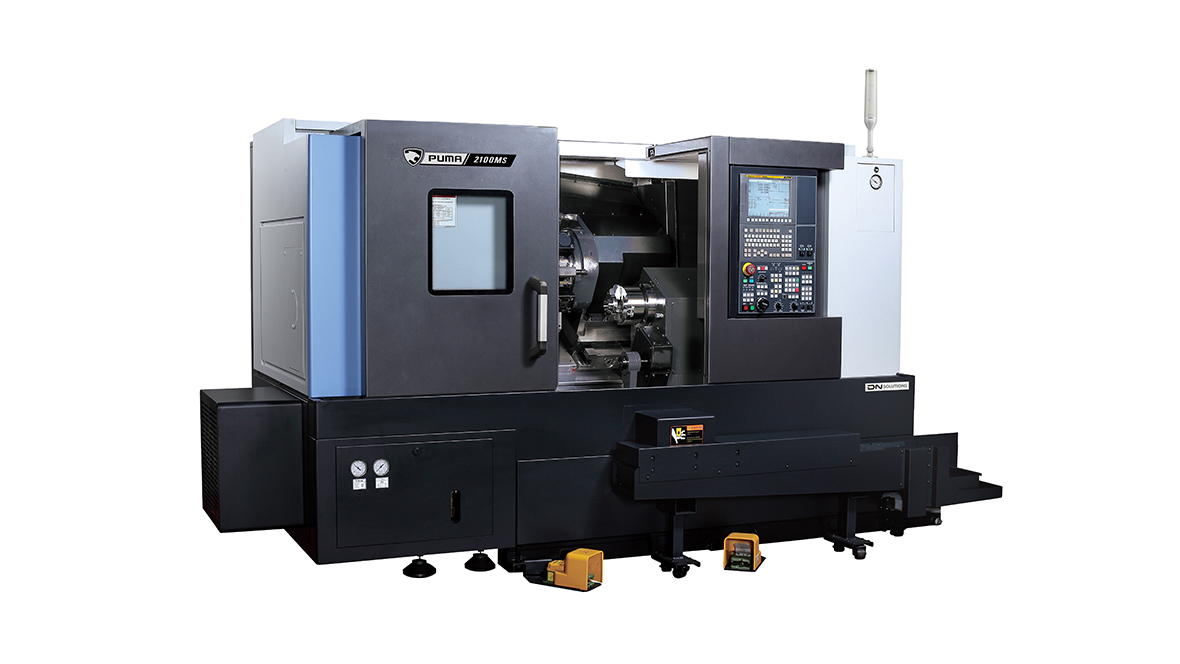

PUMA 2100
8 inch
481 mm
545 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
12 ea
3415 mm
1900 mm
1863 mm
4850 kg
PUMA 2100L
8 inch
481 mm
785 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
12 ea
3530 mm
1900 mm
1863 mm
5350 kg
PUMA 2100LM
8 inch
406 mm
760 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
12 (24 POSITION) ea
5000 r/min
3530 mm
1900 mm
1863 mm
5500 kg

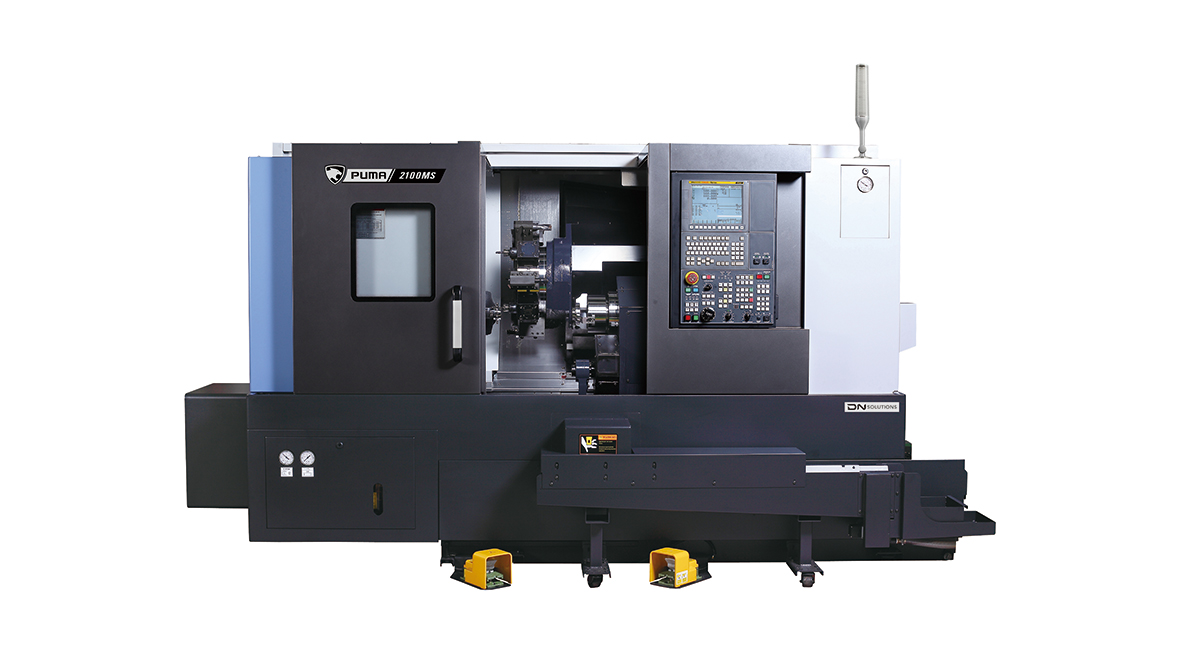

PUMA 2100LMS
8 inch
406 mm
760 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
3530 mm
1900 mm
1863 mm
5950 kg

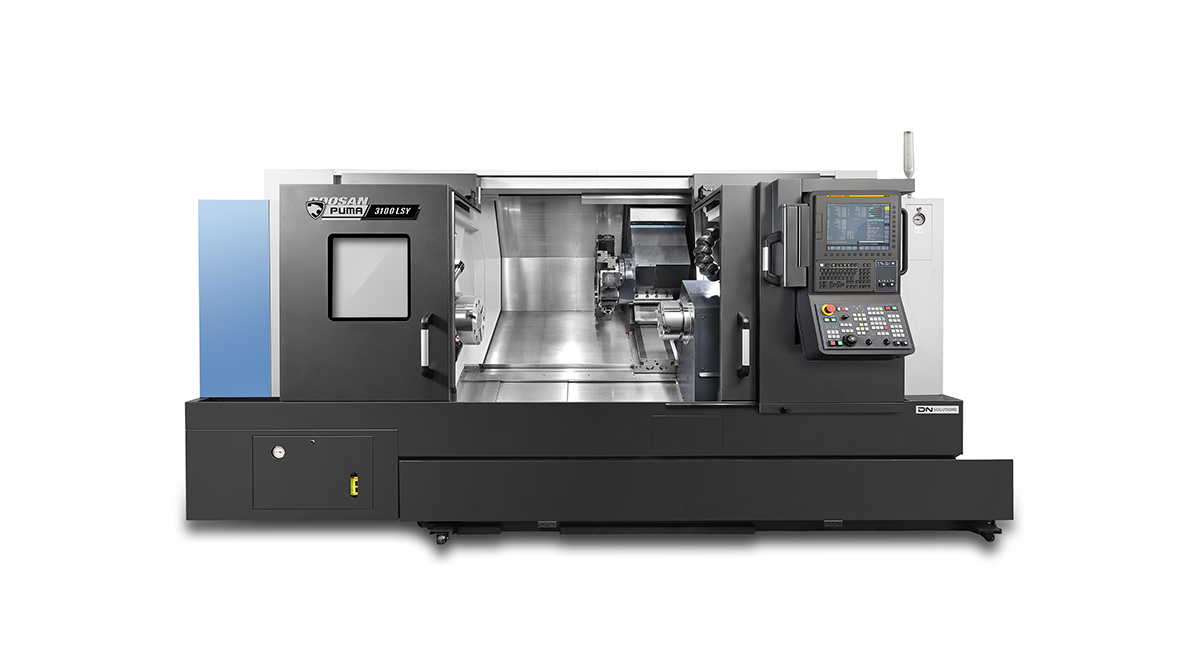

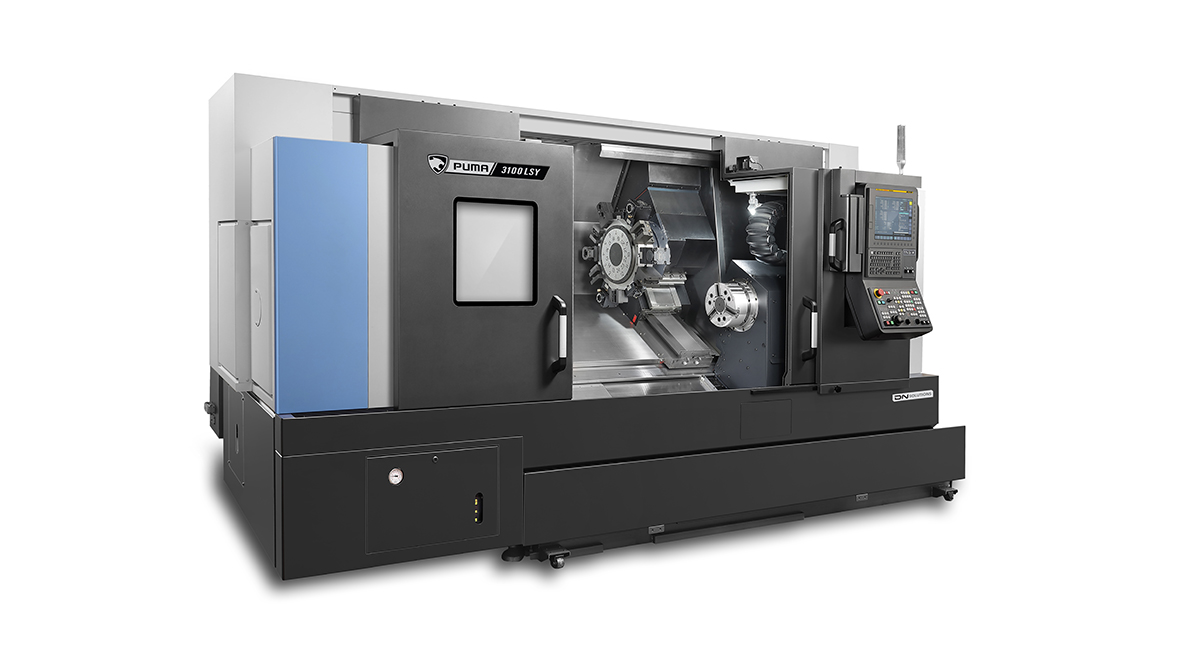

PUMA 2100LSY II
8 inch
406 mm
760 mm
30 m/min
30 m/min
5000 r/min
22 kW
358 N·m
6000 r/min
15 kW
12 ea
5000 r/min
3410 mm
2163 mm
1945 mm
6050 kg
PUMA 2100LY II
8 inch
406 mm
760 mm
30 m/min
30 m/min
5000 r/min
22 kW
358 N·m
12 ea
5000 r/min
3410 mm
2163 mm
1945 mm
6050 kg
PUMA 2100M
8 inch
406 mm
520 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
12 (24 POSITION) ea
5000 r/min
3415 mm
1900 mm
1863 mm
5000 kg

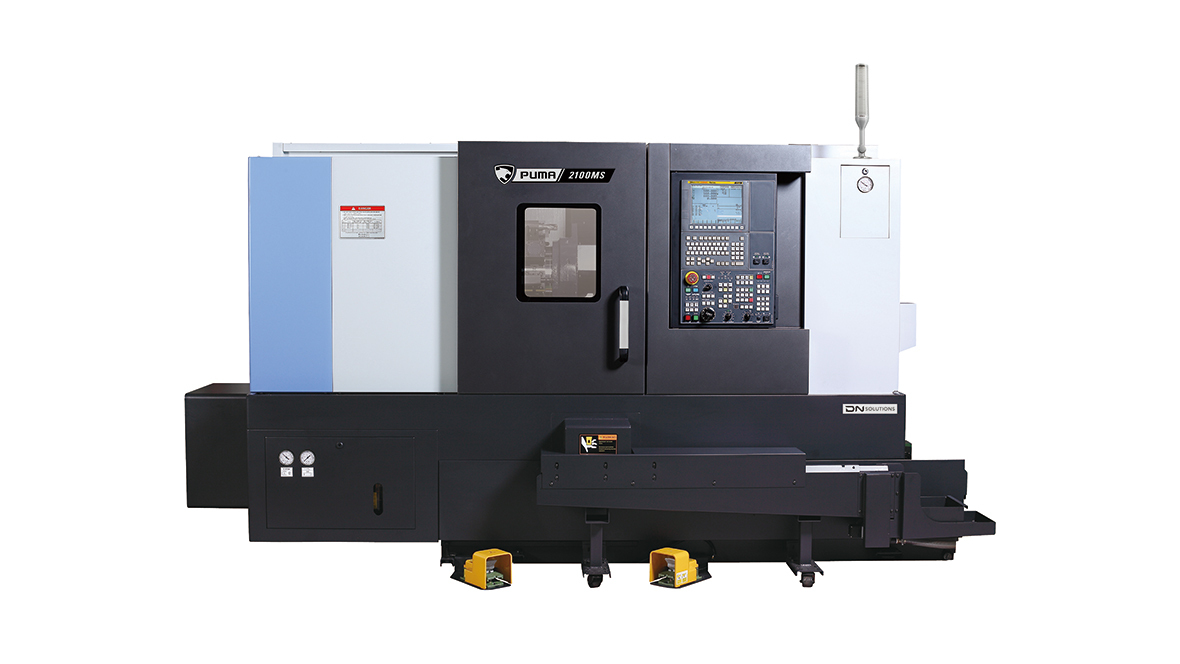

PUMA 2100MS
8 inch
406 mm
520 mm
30 m/min
30 m/min
4500 r/min
18.5 kW
183 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
3415 mm
1900 mm
1863 mm
5450 kg
PUMA 2100SY II
8 inch
406 mm
520 mm
30 m/min
30 m/min
5000 r/min
22 kW
358 N·m
6000 r/min
15 kW
12 ea
5000 r/min
3190 mm
2163 mm
1945 mm
5550 kg

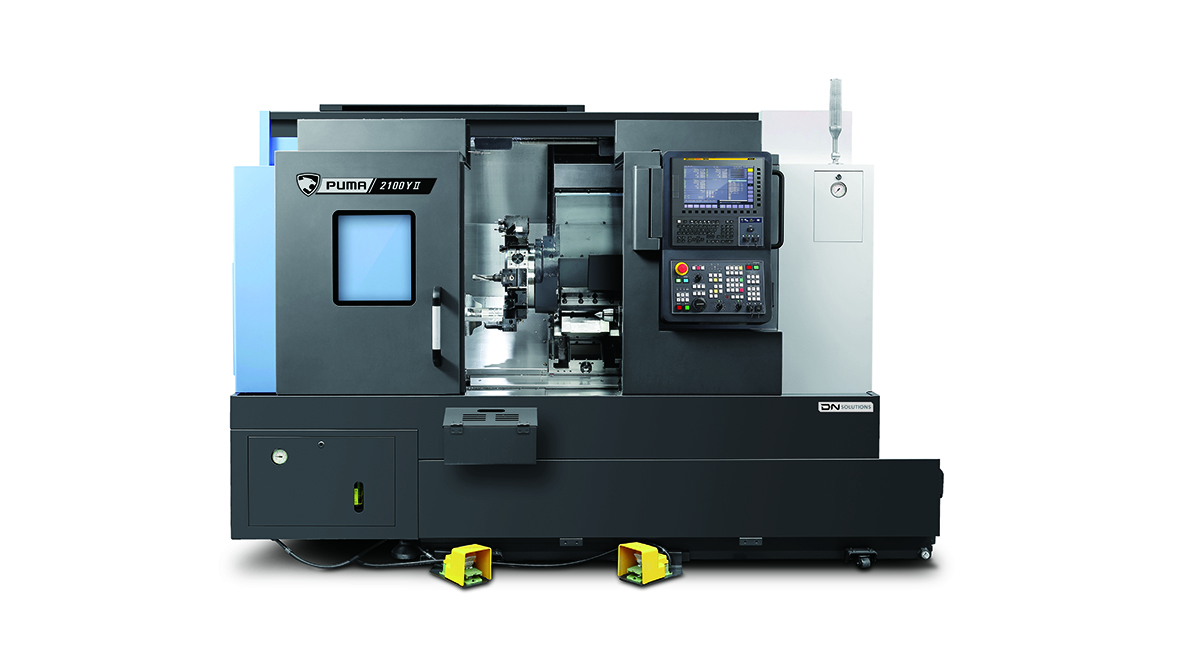

PUMA 2100Y II
8 inch
406 mm
520 mm
30 m/min
30 m/min
5000 r/min
22 kW
358 N·m
12 ea
5000 r/min
3190 mm
2163 mm
1945 mm
5550 kg
PUMA 2600
10 inch
481 mm
790 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
12 ea
3600 mm
1900 mm
1863 mm
5400 kg
PUMA 2600/500
10 inch
481 mm
550 mm
30 m/min
30 m/min
3500 r/min
18.5 kW
235 N·m
12 ea
3415 mm
1900 mm
1863 mm
4900 kg
PUMA 2600B
12 inch
481 mm
755 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 ea
3873 mm
1900 mm
1863 mm
5500 kg
PUMA 2600L
10 inch
481 mm
1310 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
12 ea
4335 mm
1900 mm
1965 mm
6700 kg
PUMA 2600LB
12 inch
481 mm
1275 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 ea
4438 mm
1900 mm
1965 mm
6800 kg

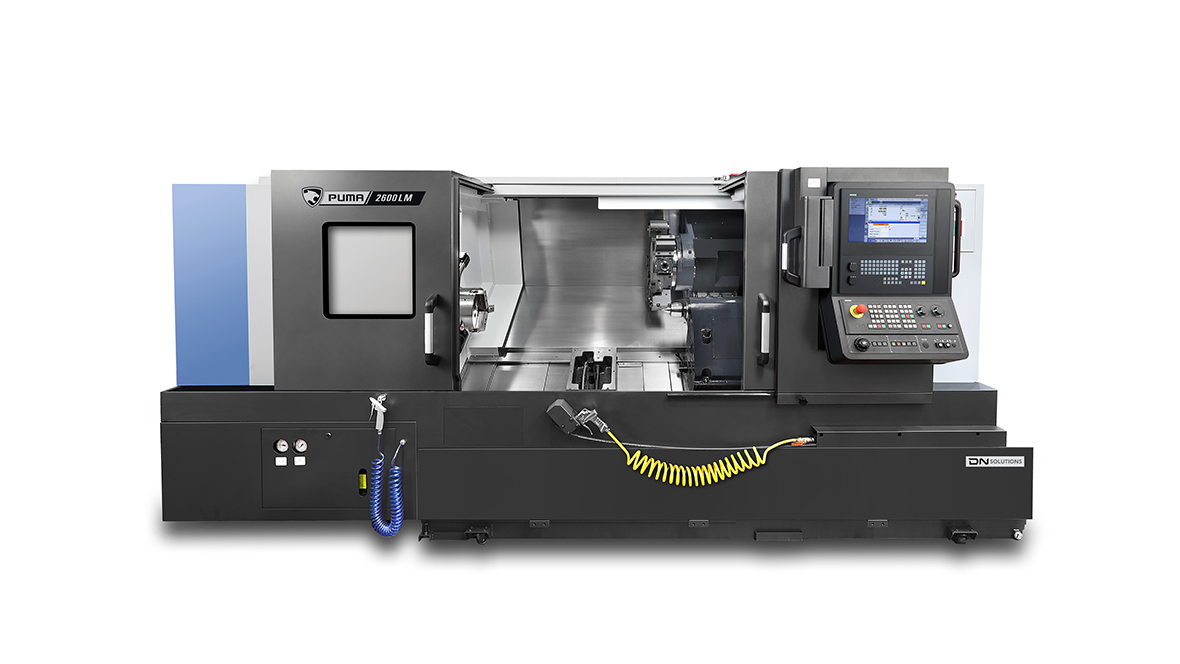

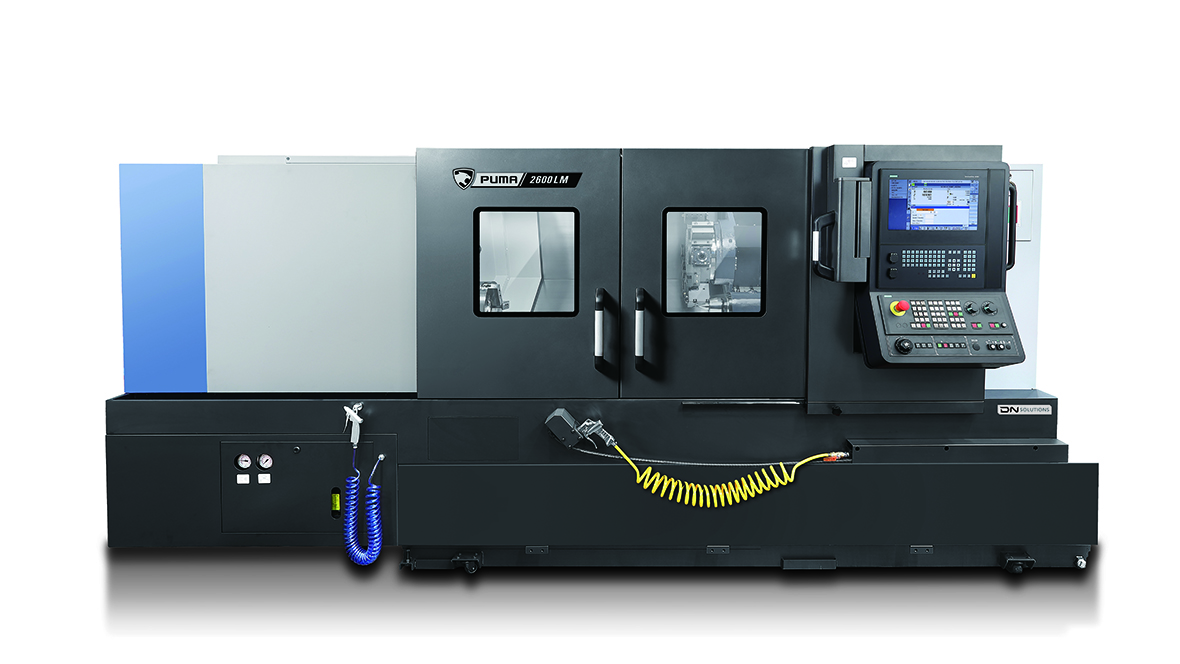

PUMA 2600LM
10 inch
376 mm
1280 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
12 (24 POSITION) ea
5000 r/min
4335 mm
1900 mm
1965 mm
6850 kg
PUMA 2600LMB
12 inch
376 mm
1245 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
4438 mm
1900 mm
1965 mm
6950 kg
PUMA 2600LMS
10 inch
376 mm
1280 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
4335 mm
1900 mm
1965 mm
7300 kg
PUMA 2600LSY II
10 inch
376 mm
1280 mm
30 m/min
30 m/min
4000 r/min
22 kW
599 N·m
6000 r/min
15 kW
12 ea
5000 r/min
4435 mm
2163 mm
2049 mm
7400 kg
PUMA 2600LSYB II
12 inch
376 mm
1245 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
4438 mm
2163 mm
2049 mm
7950 kg
PUMA 2600LY II
10 inch
376 mm
1280 mm
30 m/min
30 m/min
4000 r/min
22 kW
599 N·m
12 ea
5000 r/min
4435 mm
2163 mm
2049 mm
7400 kg
PUMA 2600LYB II
12 inch
376 mm
1245 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
4438 mm
2163 mm
2049 mm
7500 kg
PUMA 2600M
10 inch
376 mm
760 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
12 (24 POSITION) ea
5000 r/min
3600 mm
1900 mm
1863 mm
5550 kg
PUMA 2600M/500
10 inch
376 mm
520 mm
30 m/min
30 m/min
3500 r/min
18.5 kW
235 N·m
12 (24 POSITION) ea
5000 r/min
3415 mm
1900 mm
1863 mm
5000 kg
PUMA 2600MB
12 inch
376 mm
725 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
3873 mm
1900 mm
1863 mm
5650 kg
PUMA 2600MS
10 inch
376 mm
760 mm
30 m/min
30 m/min
3500 r/min
22 kW
240 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
3600 mm
1900 mm
1863 mm
6000 kg
PUMA 2600MSB
12 inch
376 mm
725 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
3873 mm
1900 mm
1863 mm
6100 kg
PUMA 2600SB
12 inch
481 mm
755 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
4500 r/min
7.5 kW
12 ea
3873 mm
1900 mm
1863 mm
5950 kg

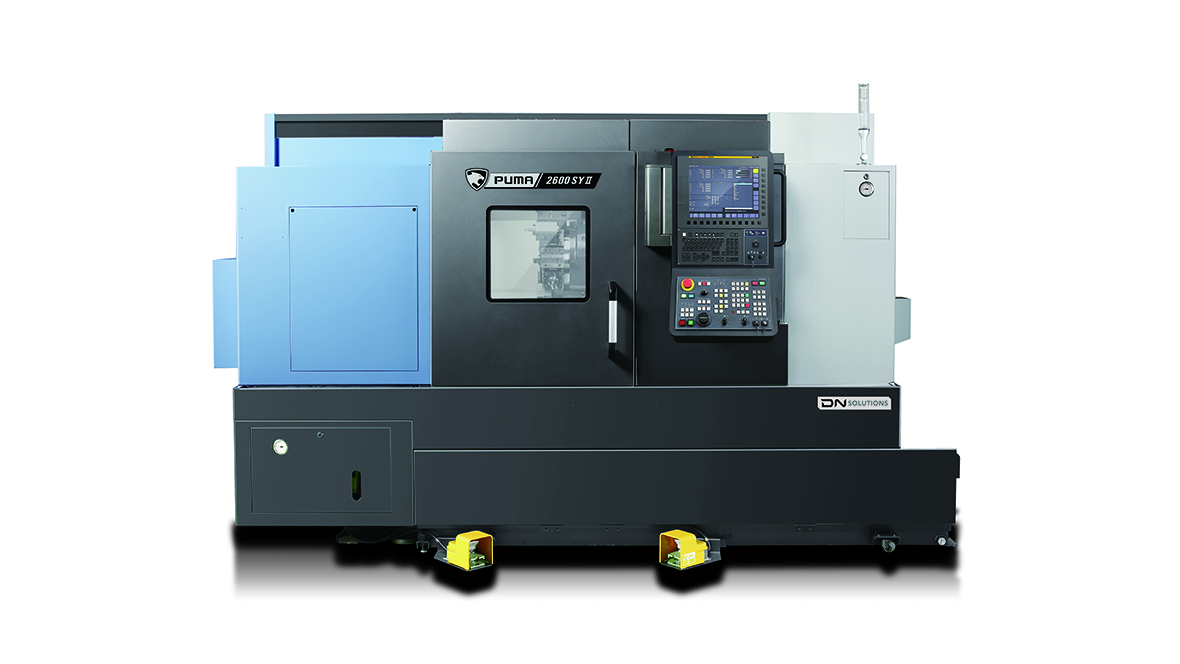

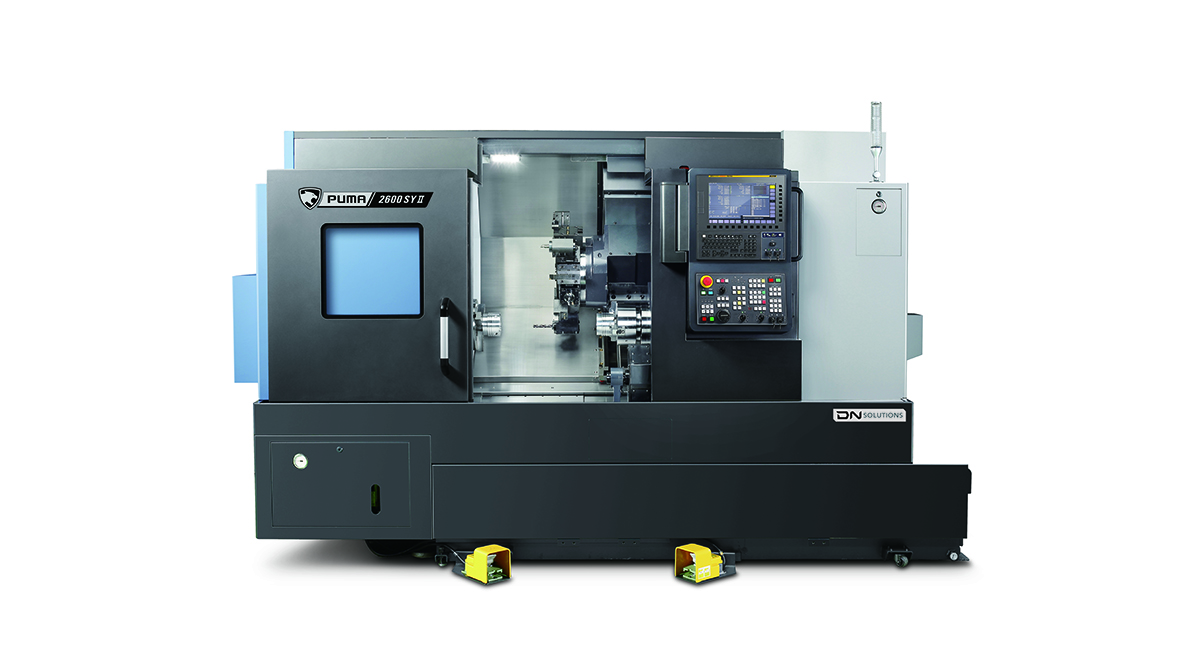

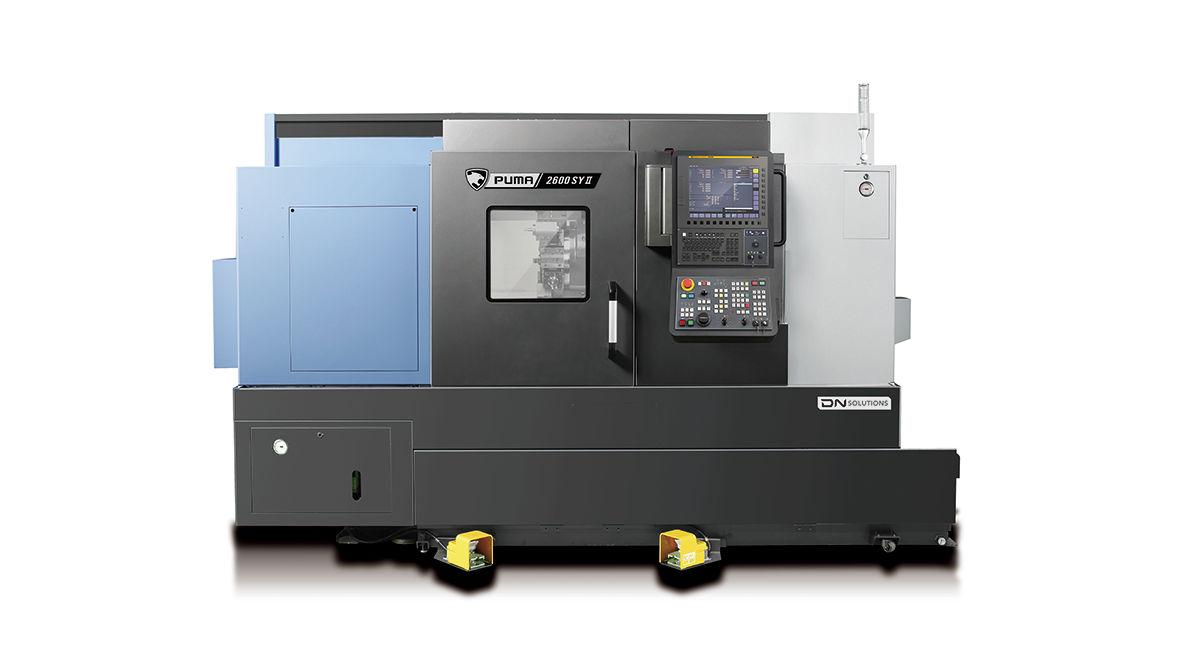

PUMA 2600SY II
10 inch
376 mm
760 mm
30 m/min
30 m/min
4000 r/min
22 kW
599 N·m
6000 r/min
15 kW
12 ea
5000 r/min
3560 mm
2163 mm
1945 mm
6100 kg
PUMA 2600SYB II
12 inch
376 mm
725 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
4500 r/min
7.5 kW
12 (24 POSITION) ea
5000 r/min
3873 mm
2163 mm
1945 mm
6650 kg
PUMA 2600Y II
10 inch
376 mm
760 mm
30 m/min
30 m/min
4000 r/min
22 kW
599 N·m
12 ea
5000 r/min
3560 mm
2163 mm
1945 mm
6100 kg
PUMA 2600YB II
12 inch
376 mm
725 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
3873 mm
2163 mm
1945 mm
6200 kg
PUMA 3100
12 inch
525 mm
790 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
10 ea
3908 mm
2010 mm
1978 mm
5850 kg
PUMA 3100L
12 inch
525 mm
1310 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
10 ea
4527 mm
2010 mm
2067 mm
7350 kg
PUMA 3100LM
12 inch
420 mm
1285 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
4527 mm
2010 mm
2067 mm
7500 kg
PUMA 3100LY
12 inch
420 mm
1285 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
4530 mm
2315 mm
2067 mm
8000 kg
PUMA 3100M
12 inch
420 mm
765 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
3908 mm
2010 mm
1987 mm
6000 kg

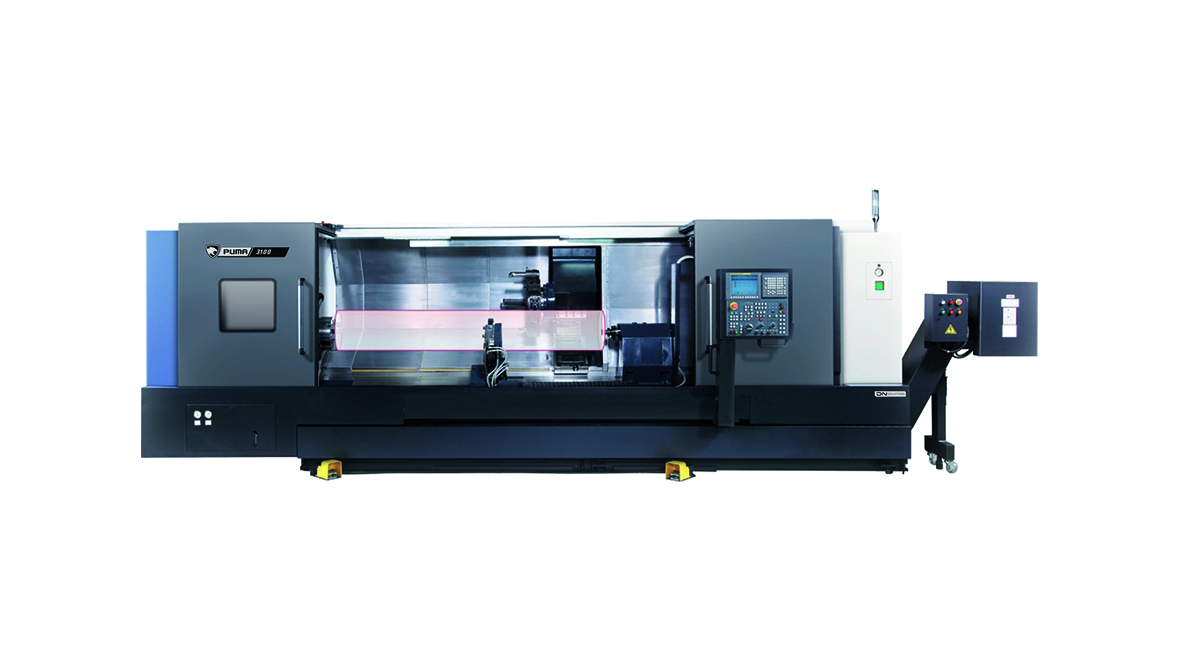

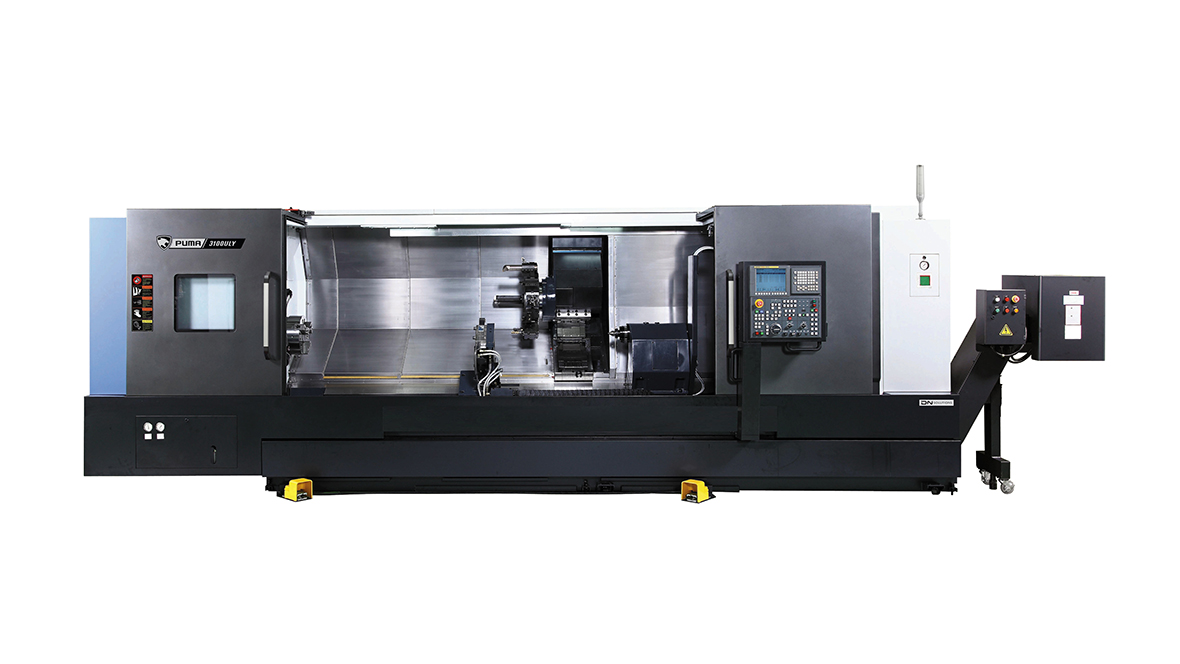

PUMA 3100UL
12 inch
525 mm
3150 mm
30 m/min
26 m/min
2800 r/min
22 kW
1123 N·m
10 ea
6585 mm
2315 mm
2280 mm
11650 kg
PUMA 3100ULM
12 inch
420 mm
3125 mm
30 m/min
26 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
6585 mm
2315 mm
2280 mm
11800 kg

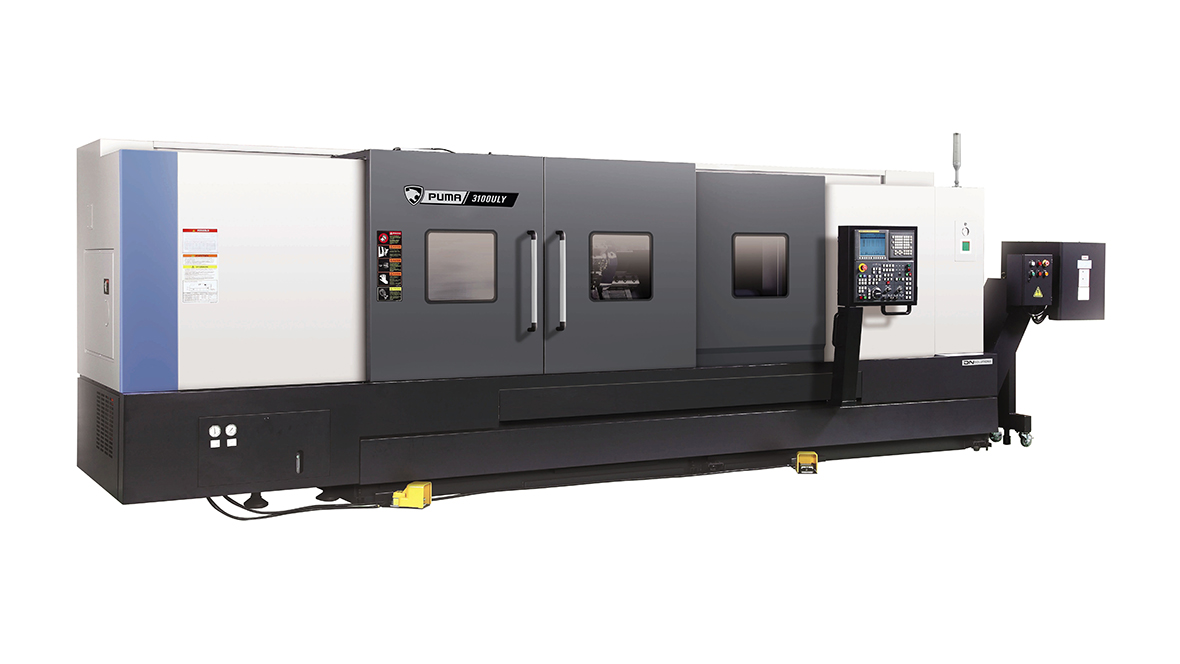

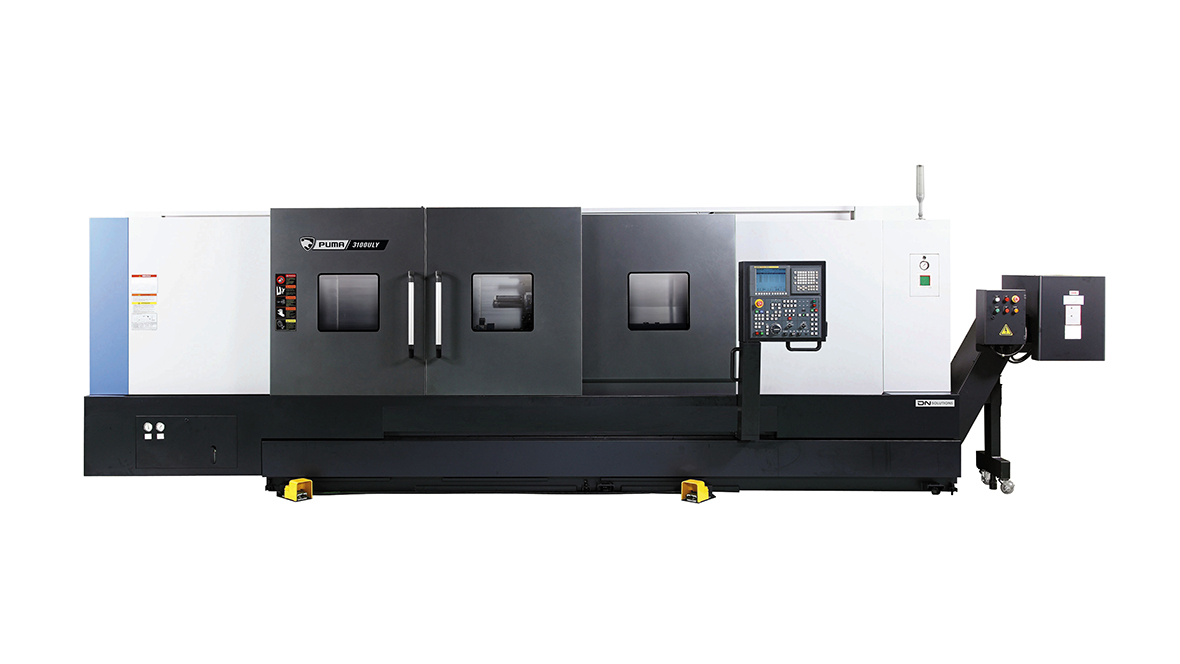

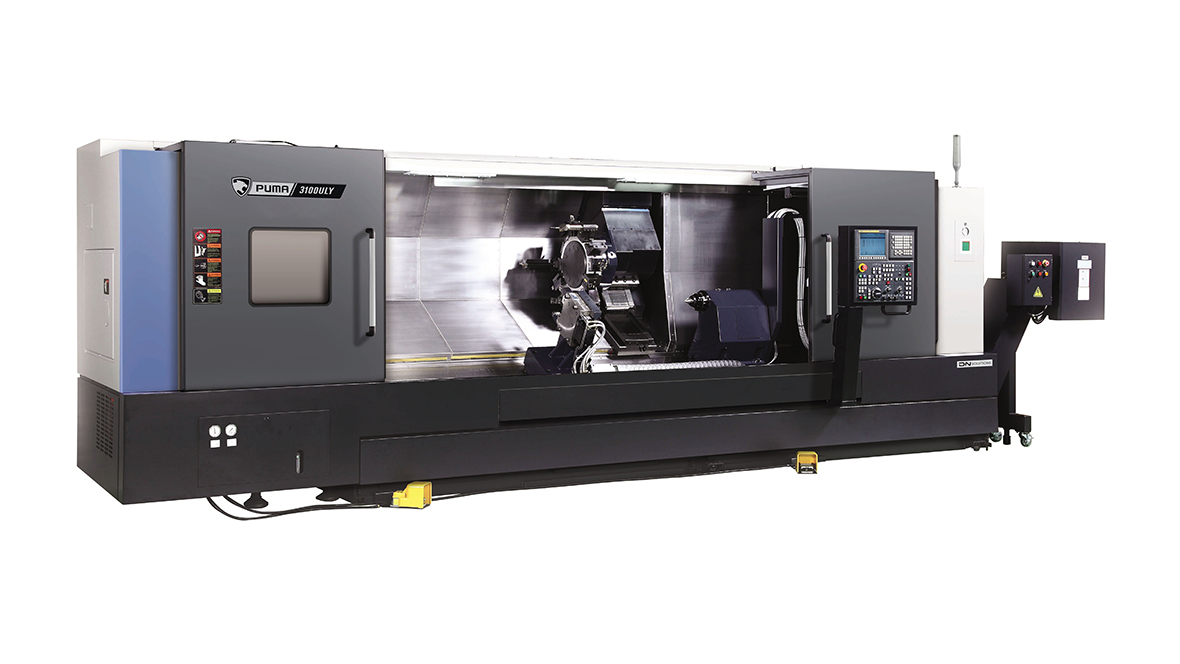

PUMA 3100ULY
12 inch
420 mm
3125 mm
30 m/min
26 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
6585 mm
2315 mm
2280 mm
12300 kg

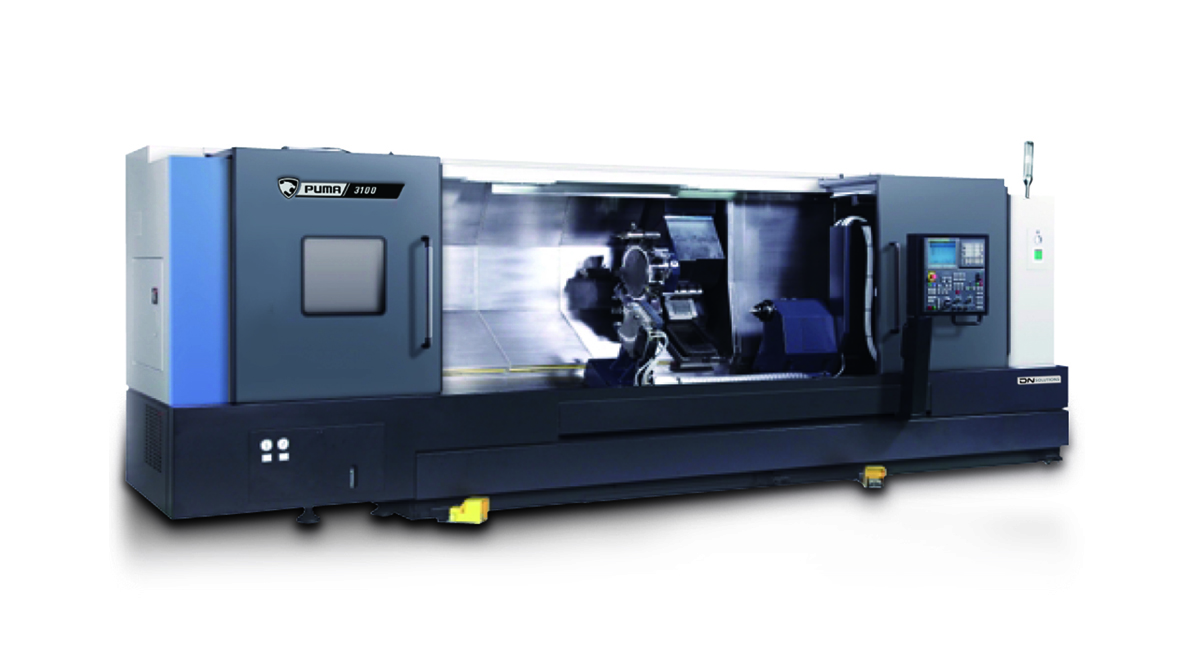

PUMA 3100XL
12 inch
525 mm
2150 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
10 ea
5615 mm
2315 mm
2280 mm
10150 kg
PUMA 3100XLM
12 inch
420 mm
2125 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
5615 mm
2315 mm
2280 mm
10300 kg
PUMA 3100XLY
12 inch
420 mm
2125 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
5615 mm
2315 mm
2280 mm
10800 kg
PUMA 3100Y
12 inch
420 mm
765 mm
30 m/min
30 m/min
2800 r/min
22 kW
1123 N·m
12 (24 POSITION) ea
5000 r/min
3908 mm
2315 mm
1978 mm
6500 kg
PUMA 3100SY
12 inch
420 mm
765 mm
30 m/min
30 m/min
2800 r/min
26 kW
1123 N∙m
4000 r/min
599 N∙m
12 ea
5000 r/min
3908 mm
2315 mm
1978 mm
7000 kg

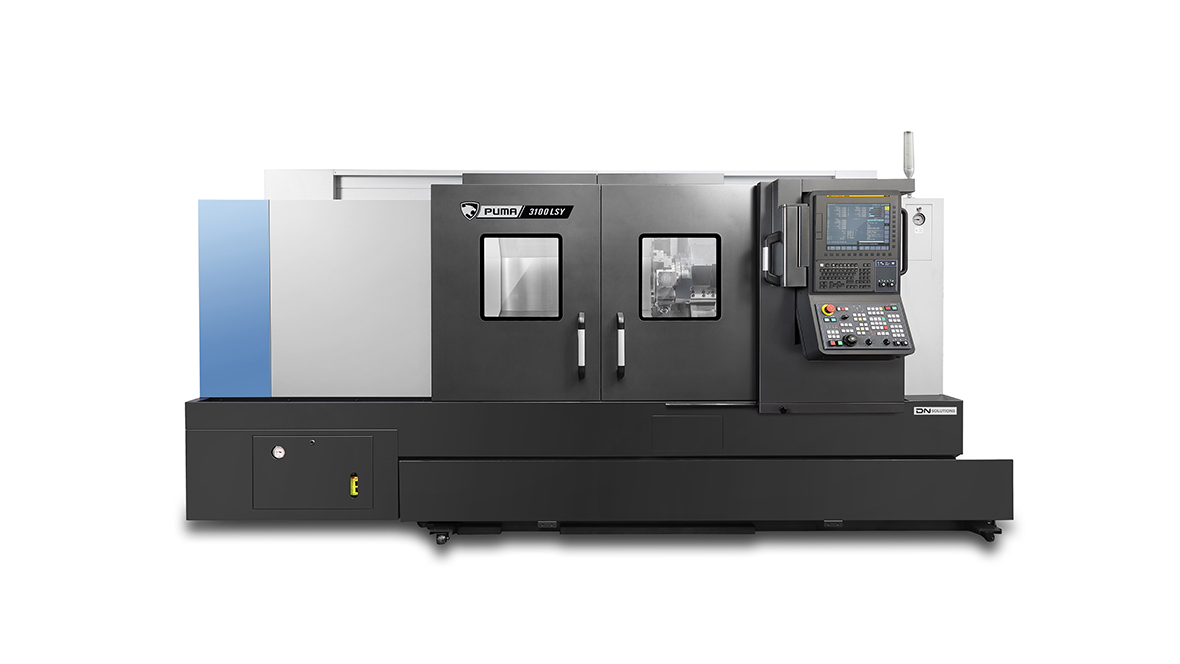

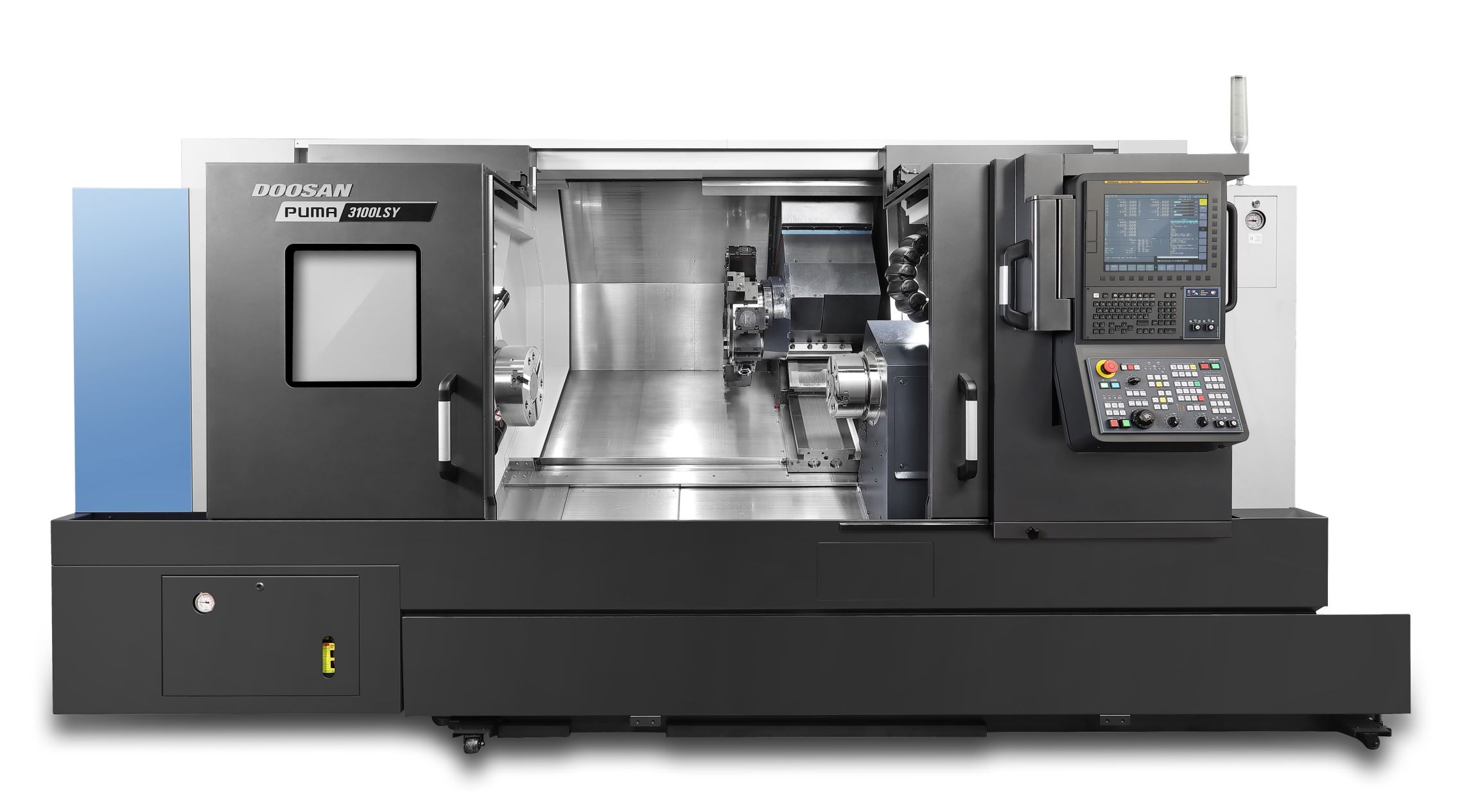

PUMA 3100LSY
12 inch
420 mm
1285 mm
30 m/min
30 m/min
2800 r/min
26 kW
1123 N∙m
4000 r/min
599 N∙m
12 ea
5000 r/min
4530 mm
2315 mm
2067 mm
8500 kg
