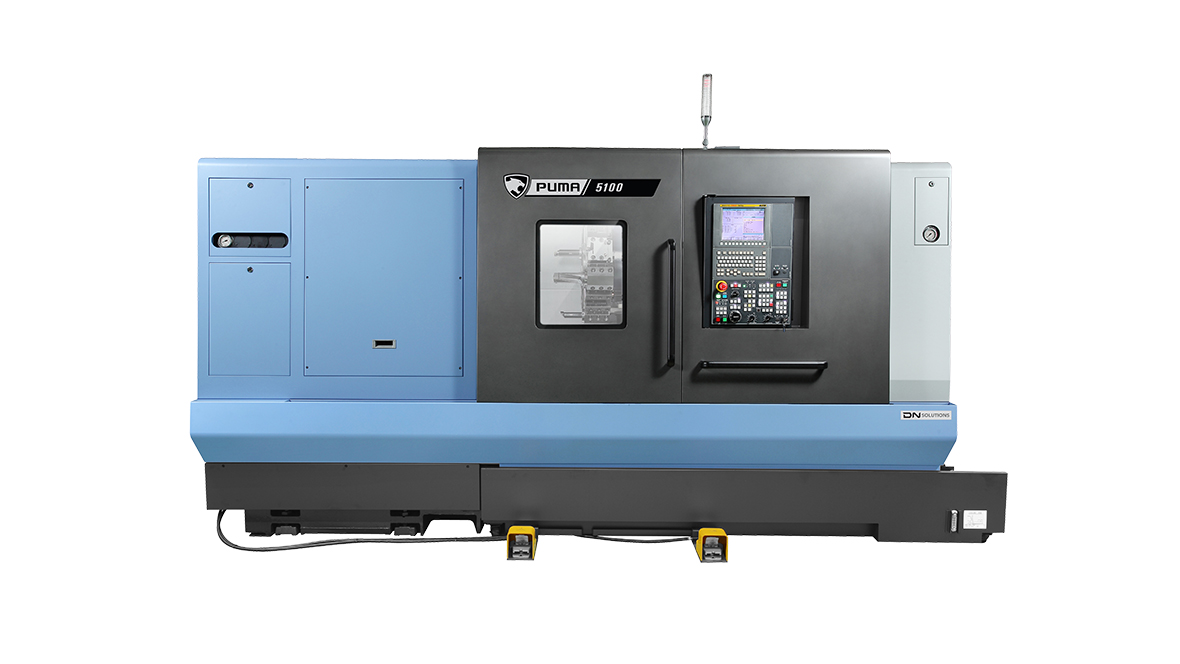

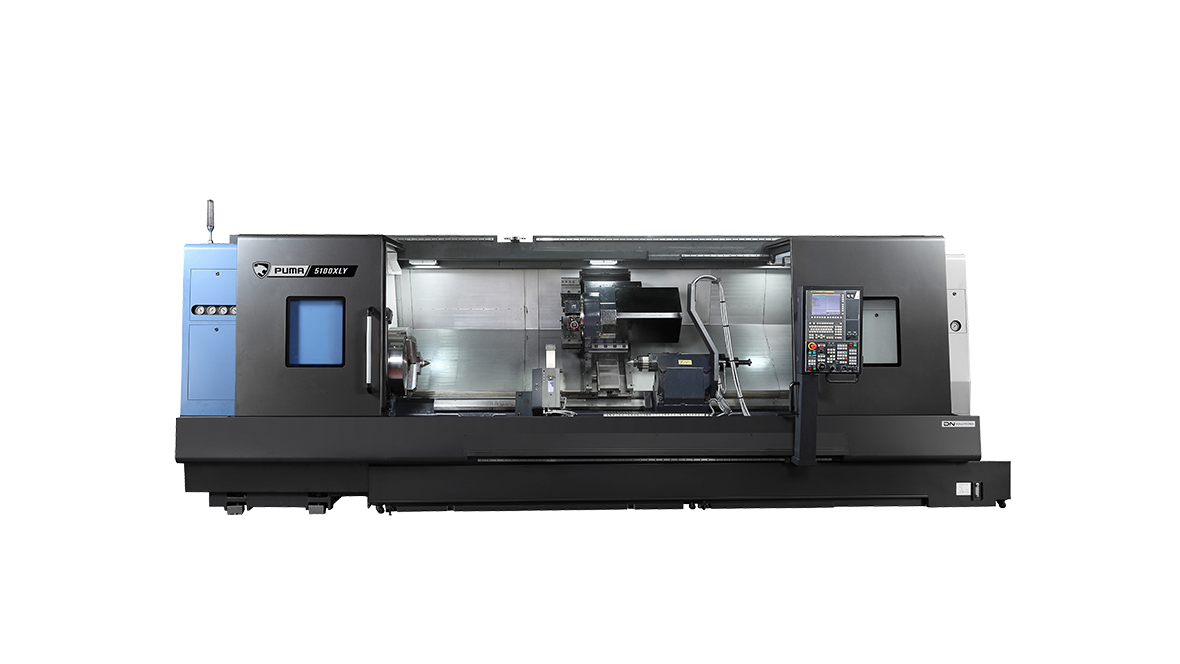

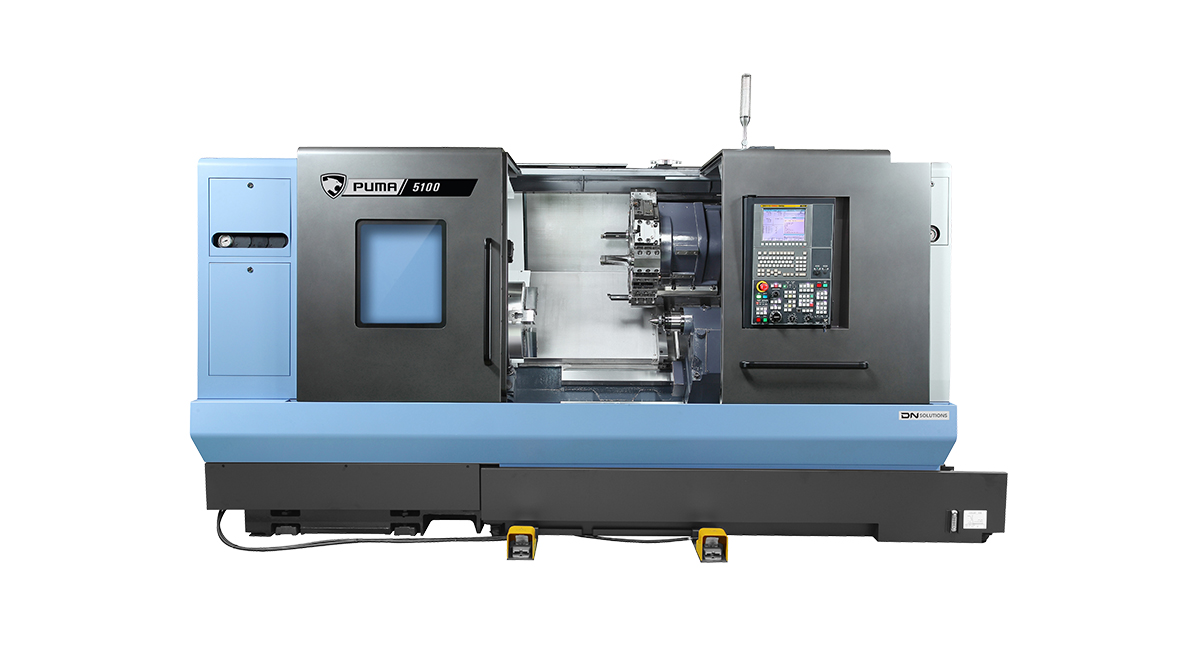

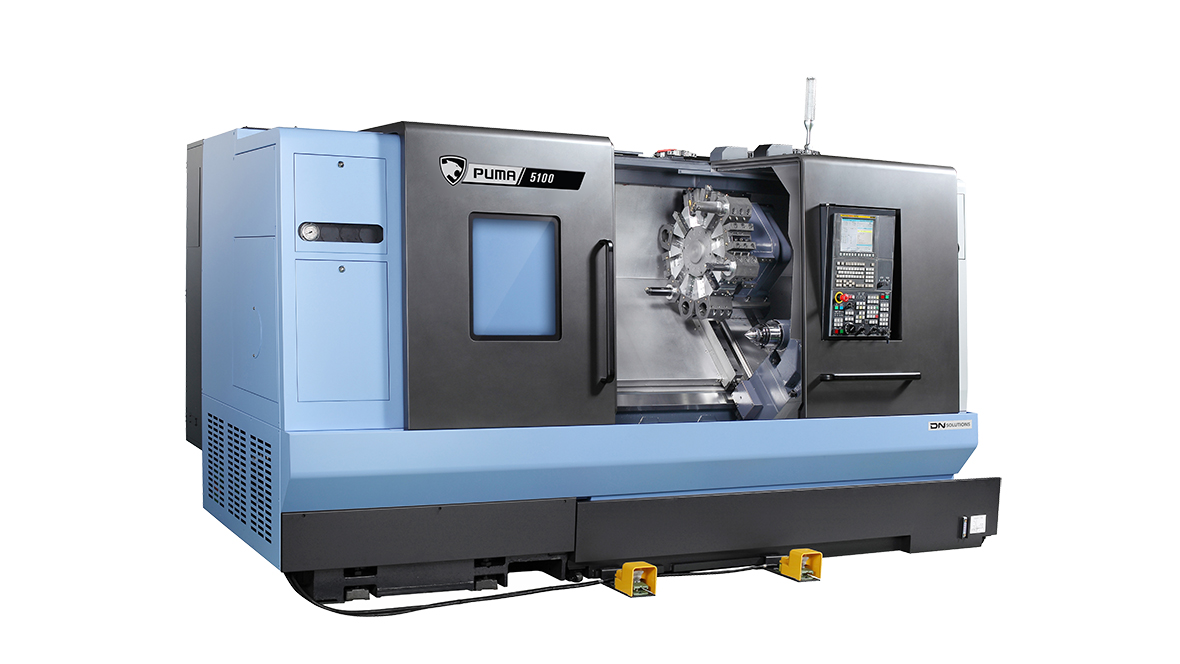

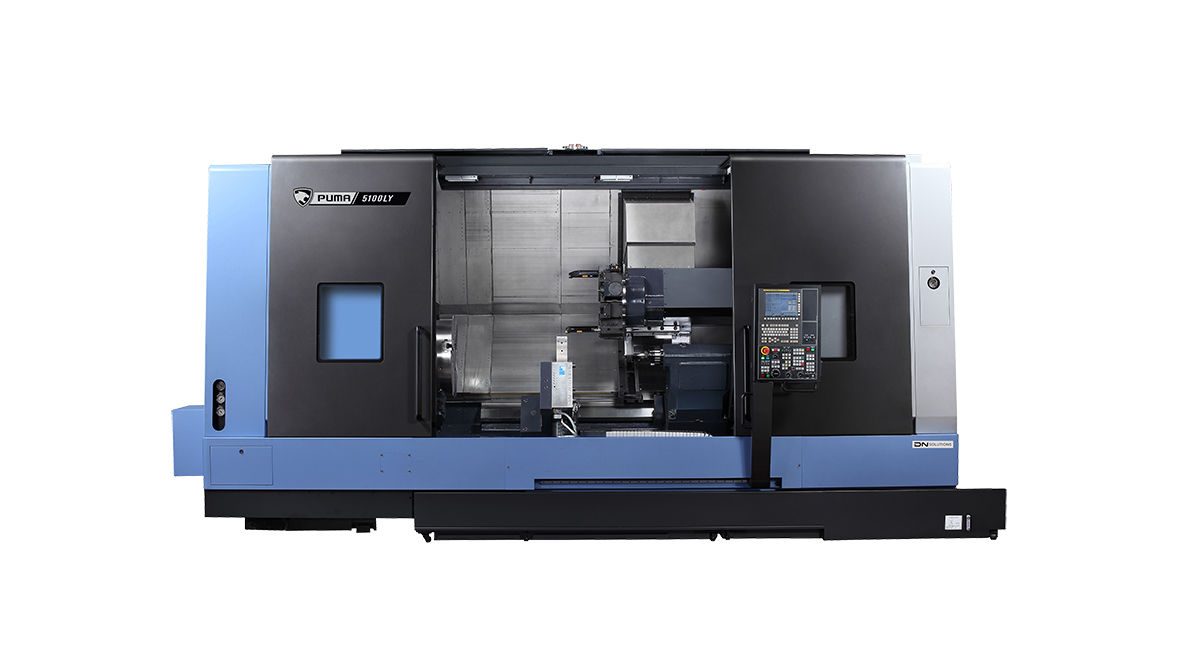

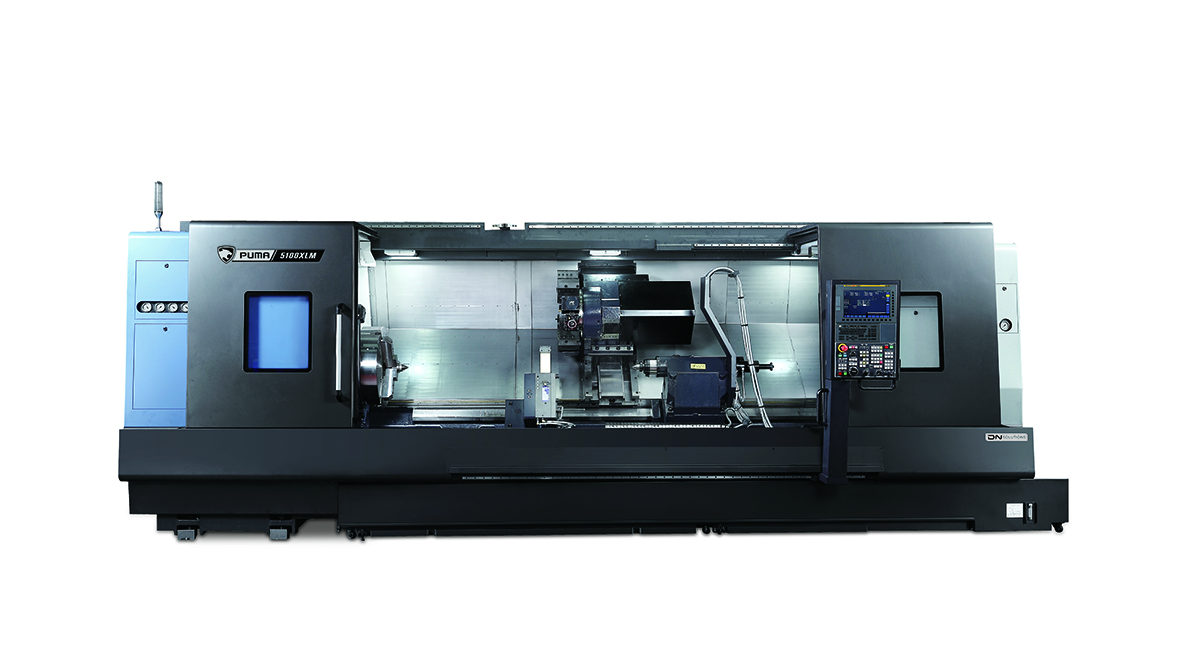

Single Turret Two-Axis Horizontal
PUMA 4100/5100 series
12"/15"/21" Powerful Heavy Duty Turning Center
have specific features that make component manufacturers’ jobs a lot easier to perform,especially if they are machining parts for the oil and gas industry.
Highlight
Reliability
Excellent Machining Capability
Faster Machining
Various Cutting Applications
Single setup for machining large complex parts
Maximum productivity can be achieved with the 200mm Y axis stroke
Boasting large machining areas and equipped with a range of productivity- and precision-enhancing technologies, PUMA 4100/5100 series are perfect for machining large, complex work pieces
Max. turning length : 5m
Max. turning diameter : 900 mm
Ideal for heavy-duty cutting of large parts
Machining Solution for wide range of pipes
Wide range of solutions to improve threading performance and reduce failure ratios
Ø375 mm maximum spindle through hole diameter makes it ideal for turning large diameter pipes
Model Specifications
The suggested is a global standard specification and it may vary by country.
Chuck size
Max. Turning Diameter
Max. Turning Length
Distance between Columns
X Axis Rapid Traverse
Z Axis Rapid Traverse
X Axis Travel distance
Y Axis Travel distance
Z Axis Travel distance
Max. Spindle Speed
Max. Spindle Power
Max. Spindle Torque
No. of tool station
Rotary Tool r/min
Length
Height
Width
Weight
PUMA 4100A
12 inch
550 mm
1074 mm
16 m/min
790 m/min
3000 r/min
35/26/22 kW
1584 N·m
12 ea
4654 mm
2194 mm
2056 mm
9450 kg
PUMA 4100B
15 inch
550 mm
1042 mm
16 m/min
20 m/min
2000 r/min
35/26/22 kW
2379 N·m
10 ea
4654 mm
2194 mm
2056 mm
9950 kg
PUMA 4100C
21 inch
550 mm
1002 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
3280 N·m
10 ea
4654 mm
2194 mm
2056 mm
10450 kg
PUMA 4100LA
12 inch
550 mm
2124 mm
16 m/min
20 m/min
3000 r/min
35/26/22 kW
1584 N·m
12 ea
5774 mm
2272 mm
2275 mm
10900 kg
PUMA 4100LB
15 inch
550 mm
2092 mm
16 m/min
790 m/min
2000 r/min
35/26/22 kW
2379 N·m
10 ea
5774 mm
2272 mm
2275 mm
11400 kg
PUMA 4100LC
21 inch
550 mm
2052 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
3280 N·m
10 ea
5774 mm
2272 mm
2275 mm
11900 kg
PUMA 4100LMA
12 inch
560 mm
2060 mm
16 m/min
20 m/min
3000 r/min
30/22 kW
832 N·m
12 ea
4000 r/min
5774 mm
2272 mm
2275 mm
11050 kg
PUMA 4100LMB
15 inch
560 mm
2028 mm
16 m/min
20 m/min
2000 r/min
30/22 kW
1611 N·m
12 ea
4000 r/min
5774 mm
2272 mm
2275 mm
11050 kg
PUMA 4100LMC
21 inch
560 mm
1988 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
2432 N·m
12 ea
4000 r/min
5774 mm
2272 mm
2275 mm
12050 kg
PUMA 4100MA
12 inch
560 mm
1010 mm
16 m/min
20 m/min
3000 r/min
30/22 kW
832 N·m
12 ea
4000 r/min
4654 mm
2194 mm
2056 mm
9600 kg
PUMA 4100MB
15 inch
560 mm
978 mm
16 m/min
20 m/min
2000 r/min
30/22 kW
1611 N·m
12 ea
4000 r/min
4654 mm
2194 mm
2056 mm
10100 kg
PUMA 4100MC
21 inch
560 mm
938 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
2432 N·m
12 ea
4000 r/min
4654 mm
2194 mm
2056 mm
10600 kg
PUMA 4100XLA
12 inch
550 mm
3152 mm
16 m/min
20 m/min
3000 r/min
35/26/22 kW
1584 N·m
12 ea
7024 mm
2335 mm
2276 mm
11900 kg
PUMA 4100XLB
15 inch
550 mm
3120 mm
16 m/min
20 m/min
2000 r/min
35/26/22 kW
2379 N·m
10 ea
7024 mm
2335 mm
2276 mm
12400 kg
PUMA 4100XLC
21 inch
550 mm
3080 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
3280 N·m
10 ea
7024 mm
2335 mm
2276 mm
12900 kg
PUMA 4100XLMA
12 inch
560 mm
3100 mm
16 m/min
20 m/min
3000 r/min
30/22 kW
832 N·m
12 ea
4000 r/min
7024 mm
2335 mm
2276 mm
12050 kg
PUMA 4100XLMB
15 inch
560 mm
3068 mm
16 m/min
20 m/min
2000 r/min
30/22 kW
1611 N·m
12 ea
4000 r/min
7024 mm
2335 mm
2276 mm
12550 kg
PUMA 4100XLMC
21 inch
560 mm
3028 mm
16 m/min
20 m/min
1500 r/min
37/30 kW
2432 N·m
12 ea
4000 r/min
7024 mm
2335 mm
2276 mm
13050 kg
PUMA 5100A
15 inch
650 mm
1032 mm
16 m/min
20 m/min
2000 r/min
37/30 kW
3280 N·m
10 ea
4759 mm
2194 mm
2056 mm
10100 kg
PUMA 5100B
21 inch
650 mm
992 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
4038 N·m
10 ea
4759 mm
2194 mm
2056 mm
10600 kg
PUMA 5100C
-
650 mm
992 mm
16 m/min
20 m/min
1000 r/min
45/37 kW
4463 N·m
10 ea
4759 mm
2194 mm
2056 mm
10650 kg
PUMA 5100LA
15 inch
650 mm
2082 mm
16 m/min
20 m/min
2000 r/min
37/30 kW
3280 N·m
10 ea
5879 mm
2272 mm
2275 mm
11550 kg
PUMA 5100LB
21 inch
650 mm
2042 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
4038 N·m
10 ea
5879 mm
2272 mm
2275 mm
12050 kg
PUMA 5100LC
-
650 mm
2042 mm
16 m/min
20 m/min
1000 r/min
45/37 kW
4463 N·m
10 ea
5879 mm
2272 mm
2275 mm
12100 kg
PUMA 5100LMA
15 inch
650 mm
2042 mm
16 m/min
20 m/min
2000 r/min
37/30 kW
2432 N·m
12 ea
4000 r/min
5879 mm
2272 mm
2275 mm
11700 kg
PUMA 5100LMB
21 inch
650 mm
2002 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
2957 N·m
12 ea
4000 r/min
5879 mm
2272 mm
2275 mm
12200 kg
PUMA 5100LYA
15 inch
550 mm
2050 mm
20 m/min
18 m/min
2000 r/min
37/30 kW
2431 N·m
12 ea
4000 r/min
5980 mm
2885 mm
2522 mm
13000 kg
PUMA 5100LYB
21 inch
550 mm
2020 mm
20 m/min
18 m/min
1500 r/min
45/37 kW
2957 N·m
12 ea
4000 r/min
5980 mm
2885 mm
2522 mm
13000 kg
PUMA 5100LYC
-
550 mm
2020 mm
20 m/min
18 m/min
1000 r/min
45/37 kW
3268 N·m
12 ea
4000 r/min
5980 mm
2885 mm
2522 mm
13000 kg
PUMA 5100MA
15 inch
650 mm
992 mm
16 m/min
20 m/min
2000 r/min
45/37 kW
2432 N·m
12 ea
4000 r/min
4759 mm
2194 mm
2056 mm
10250 kg
PUMA 5100MB
21 inch
650 mm
952 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
2957 N·m
12 ea
4000 r/min
4759 mm
2194 mm
2056 mm
10750 kg
PUMA 5100XLA
15 inch
650 mm
3082 mm
16 m/min
20 m/min
2000 r/min
37/30 kW
3280 N·m
10 ea
7059 mm
2335 mm
2276 mm
12550 kg
PUMA 5100XLB
21 inch
650 mm
3042 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
4038 N·m
10 ea
7059 mm
2335 mm
2276 mm
13050 kg
PUMA 5100XLC
-
650 mm
3042 mm
16 m/min
20 m/min
1000 r/min
45/37 kW
4463 N·m
10 ea
7059 mm
2335 mm
2276 mm
13100 kg
PUMA 5100XLMA
15 inch
650 mm
3068 mm
16 m/min
20 m/min
2000 r/min
37/30 kW
2432 N·m
12 ea
7059 mm
2335 mm
2276 mm
12700 kg
PUMA 5100XLMB
21 inch
650 mm
3028 mm
16 m/min
20 m/min
1500 r/min
45/37 kW
2957 N·m
12 ea
4000 r/min
7059 mm
2335 mm
2276 mm
13200 kg
PUMA 5100XLYA
15 inch
550 mm
3070 mm
20 m/min
20 m/min
2000 r/min
37/30 kW
2431 N·m
12 ea
4000 r/min
7302 mm
2937 mm
2632 mm
16000 kg
PUMA 5100XLYB
21 inch
550 mm
3040 mm
20 m/min
20 m/min
1500 r/min
45/37 kW
2957 N·m
12 ea
4000 r/min
7302 mm
2937 mm
2632 mm
16000 kg
