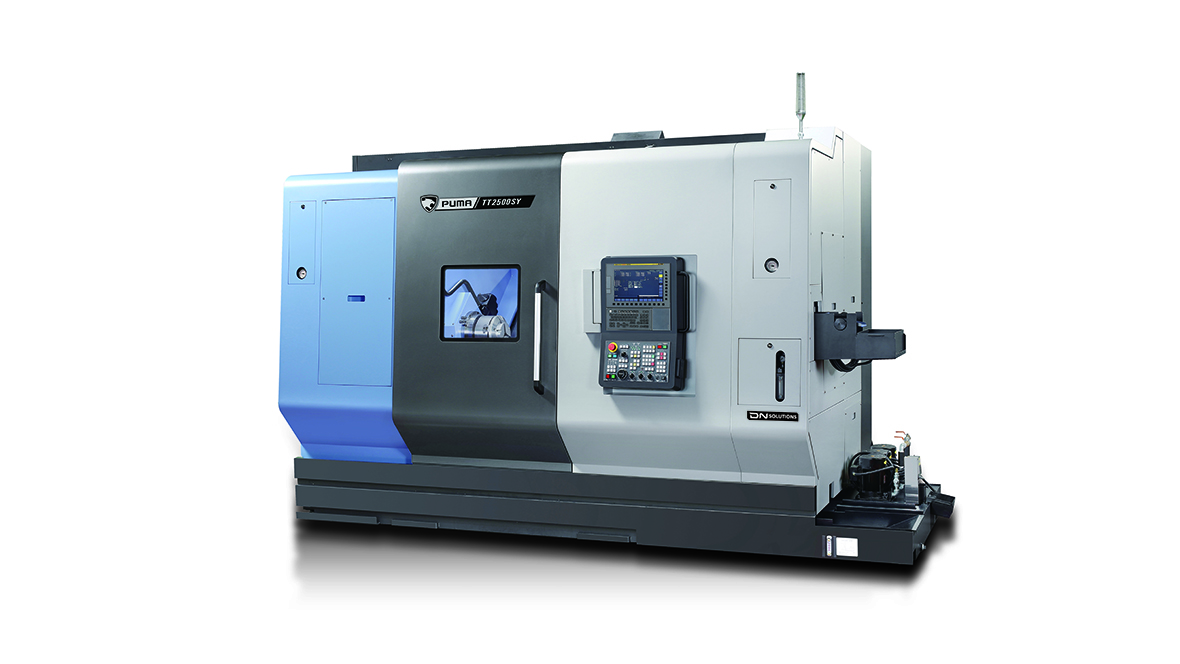

PUMA TT series

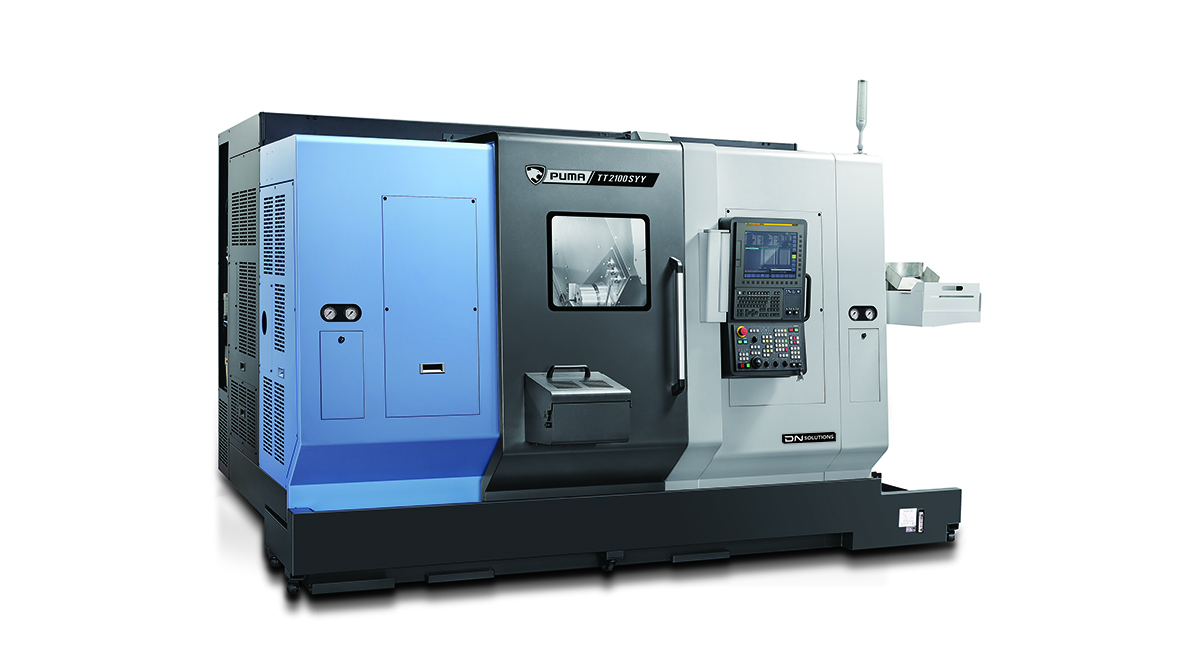

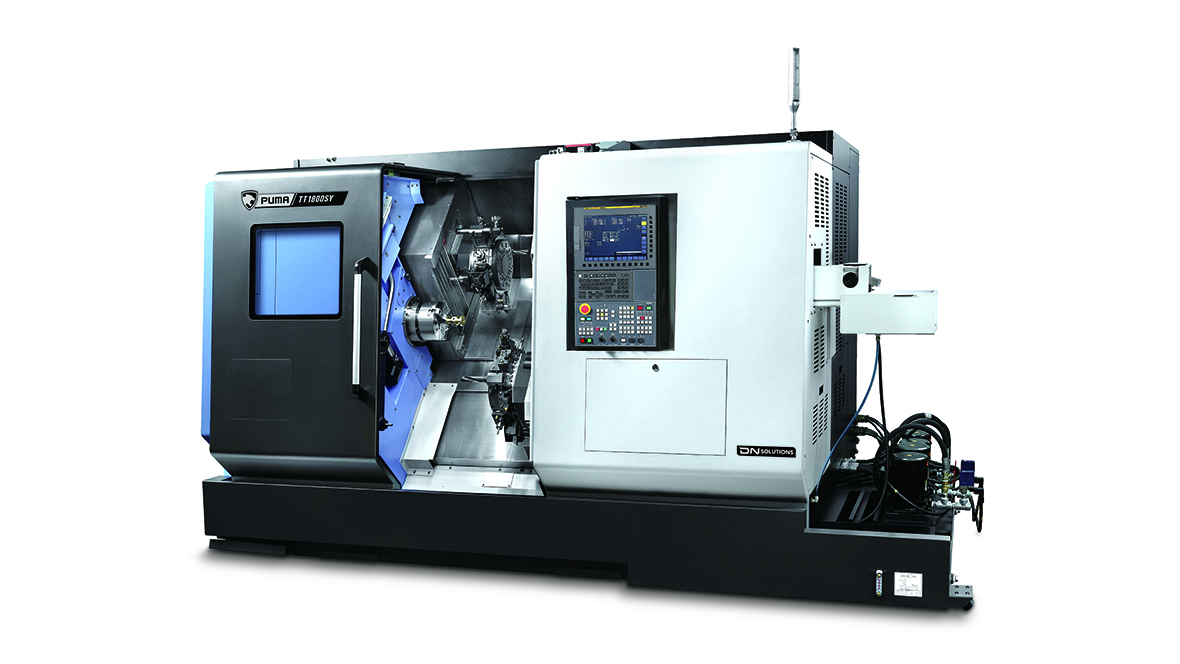

High productivity Twin-spindle Twin-turret with Y axis Turning Center

19
The PUMA TT is a horizontal turning center designed and built for the fast and mass production of
high precision automotive or medical parts. Featuring live tooling, a Y-axis and a built-in sub-spindle TT machines deliver an impressive simultaneous machining solution.

Highlight

High Productivity

Excellent Machining Capability

Multitasking Capability

Faster Machining

Productivity doubled with the adoption of a right spindle and a lower turret!

The left and right spindles and the upper and lower turrets are able to operate independently to double productivity.

Various sizes from Ф42mm~Ф81mm (bar capacity).

Upper and lower turrets with Y axis. (PUMA TT1300/2100SYY)

Excellent rigidity and power combined with a rapid axis travel system!

The machines’ rapid traverse rates of 40 m/min

High rigidity roller LM guideways.

Equipped with an advanced finished-part removal system for both spindles

The left and right spindles are equipped with independent parts catcher and unloader systems.

Fully automated manufacturing system.

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

SUB SPINDLE

Max. Spindle Speed

Max. Spindle Power

TURRET

No. of tool station

Rotary Tool r/min

DIMENSIONS

Length

Height

Width

Weight

PUMA TT1300SY

5 inch

175 / 175 mm

120 mm

30 m/min

40 m/min

6000 r/min

11/7.5/5.5 kW

93 N·m

6000 r/min

11 kW

12 ea

6000 r/min

3405 mm

2100 mm

2300 mm

8000 kg

PUMA TT1300SYB

6 inch

175 / 175 mm

120 mm

30 m/min

40 m/min

6000 r/min

15/11/7.5 kW

116 N·m

6000 r/min

11 kW

12 ea

6000 r/min

3405 mm

2100 mm

2300 mm

8100 kg

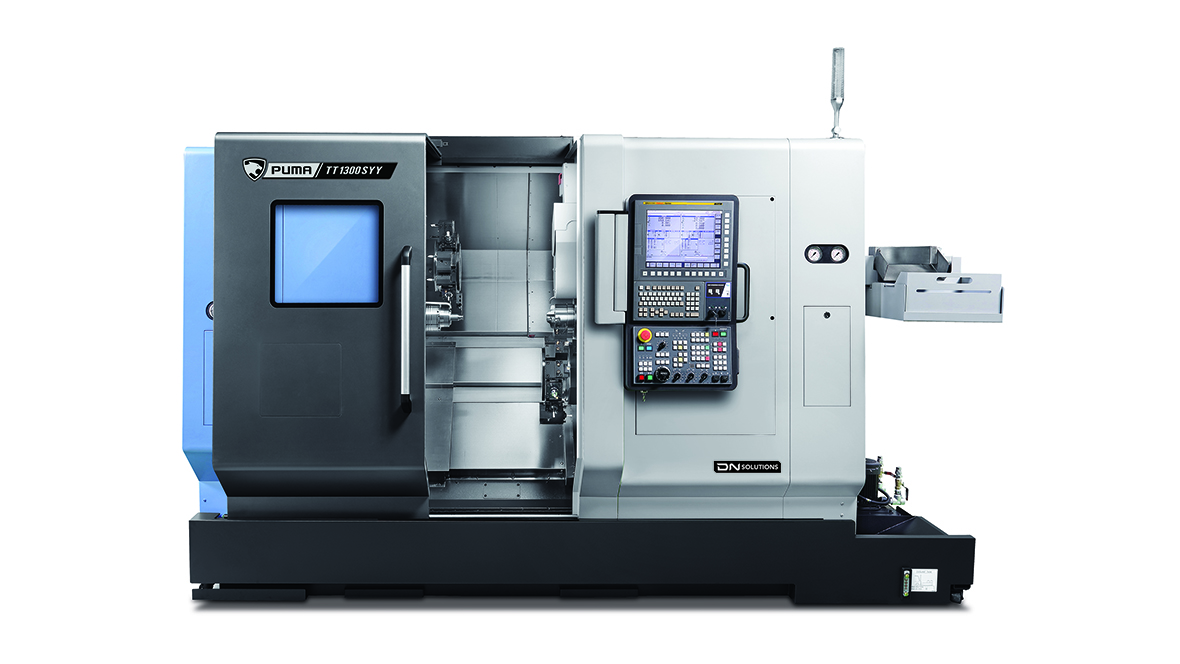

PUMA TT1300SYY

5 inch

175 / 175 mm

120 mm

30 m/min

40 m/min

6000 r/min

11/7.5/5.5 kW

93 N·m

6000 r/min

11 kW

12 ea

6000 r/min

3405 mm

2100 mm

2300 mm

8000 kg

PUMA TT1300SYYB

6 inch

175 / 175 mm

120 mm

30 m/min

40 m/min

6000 r/min

15/11/7.5 kW

116 N·m

6000 r/min

11 kW

12 ea

6000 r/min

3405 mm

2100 mm

2300 mm

8100 kg

PUMA TT1800MS

8 inch

230 / 230 mm

230 mm

20 m/min

40 m/min

5000 r/min

22/15 kW

208 N·m

5000 r/min

22 kW

12 ea

5000 r/min

3905 mm

2080 mm

2070 mm

8800 kg

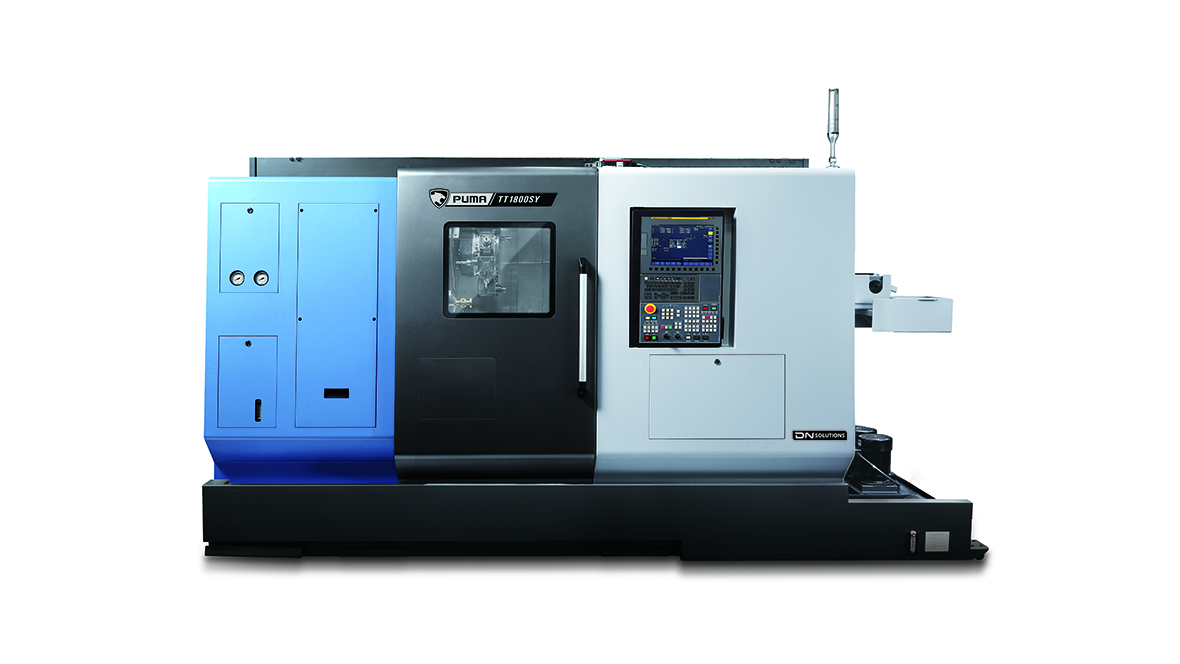

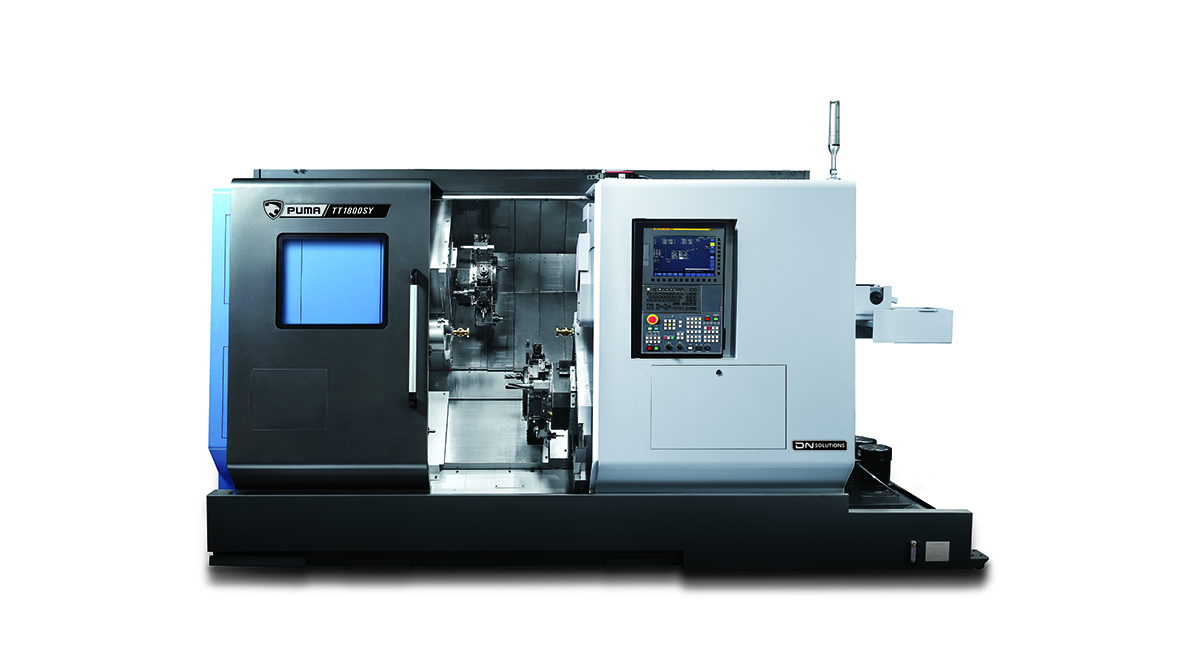

PUMA TT1800SY

8 inch

230 / 230 mm

230 mm

20 m/min

40 m/min

5000 r/min

22/15 kW

208 N·m

5000 r/min

22 kW

12 ea

5000 r/min

3905 mm

2080 mm

2070 mm

8800 kg

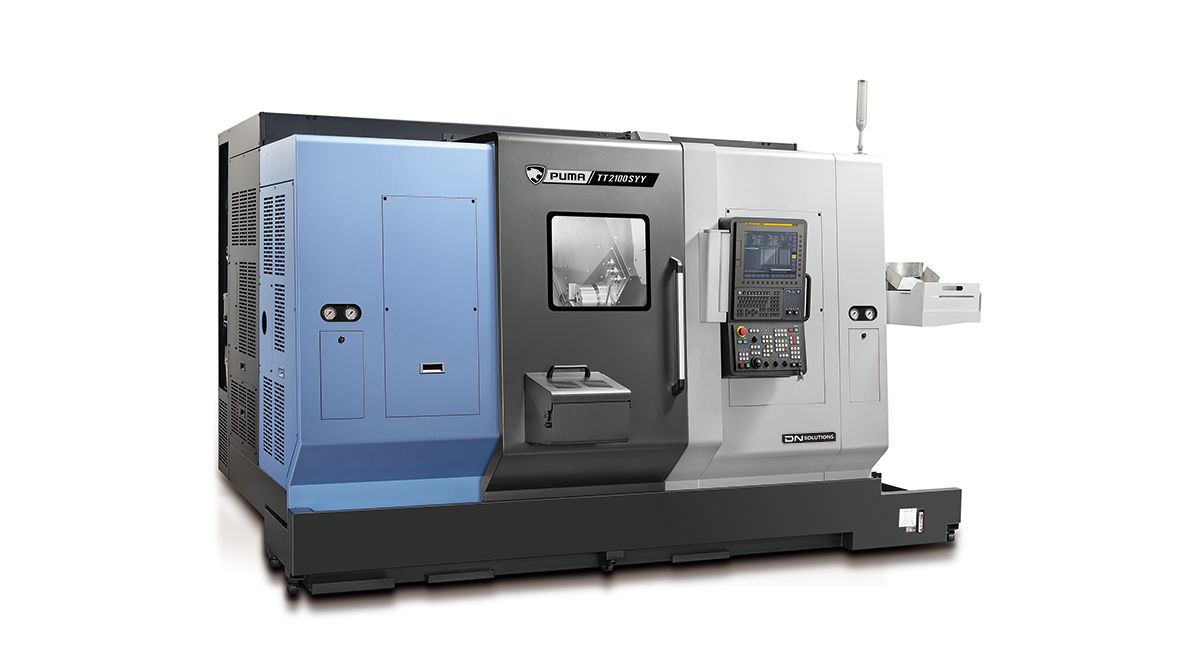

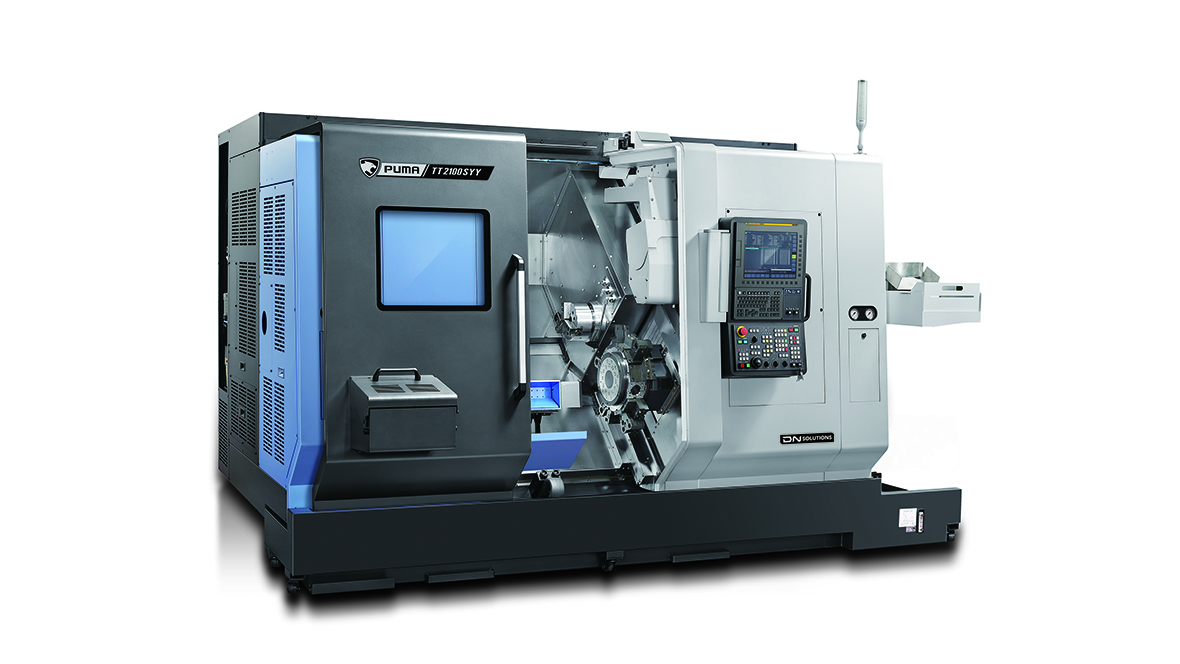

PUMA TT2100SYY

8 inch

230 / 230 mm

230 mm

30 m/min

40 m/min

5000 r/min

25/18.5/15 kW

223 N·m

5000 r/min

25 kW

12 ea

5000 r/min

3880 mm

2250 mm

2360 mm

9500 kg

PUMA TT2100SYYB

10 inch

230 / 230 mm

230 mm

30 m/min

40 m/min

3500 r/min

22/18.5 kW

244 N·m

5000 r/min

25 kW

12 ea

5000 r/min

3940 mm

2250 mm

2360 mm

9600 kg

PUMA TT2500MS

10 inch

350 mm

20 m/min

24 m/min

3500 r/min

26/22 kW

433.2 N·m

12 ea

5000 r/min

4050 mm

2480 mm

2210 mm

12700 kg

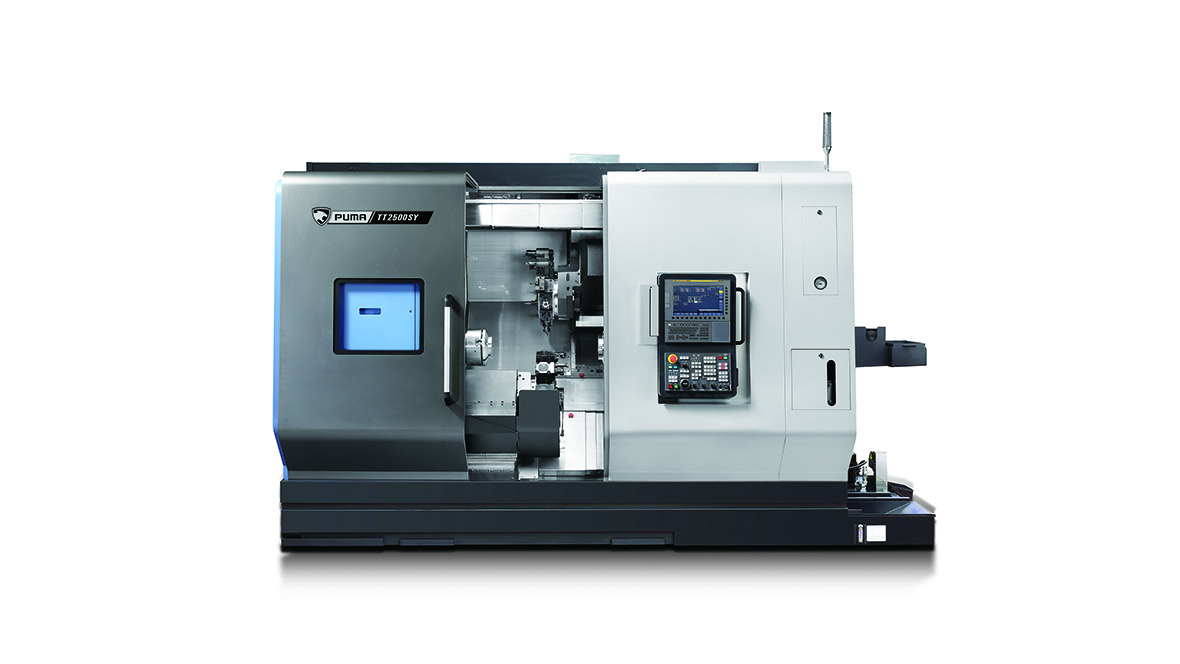

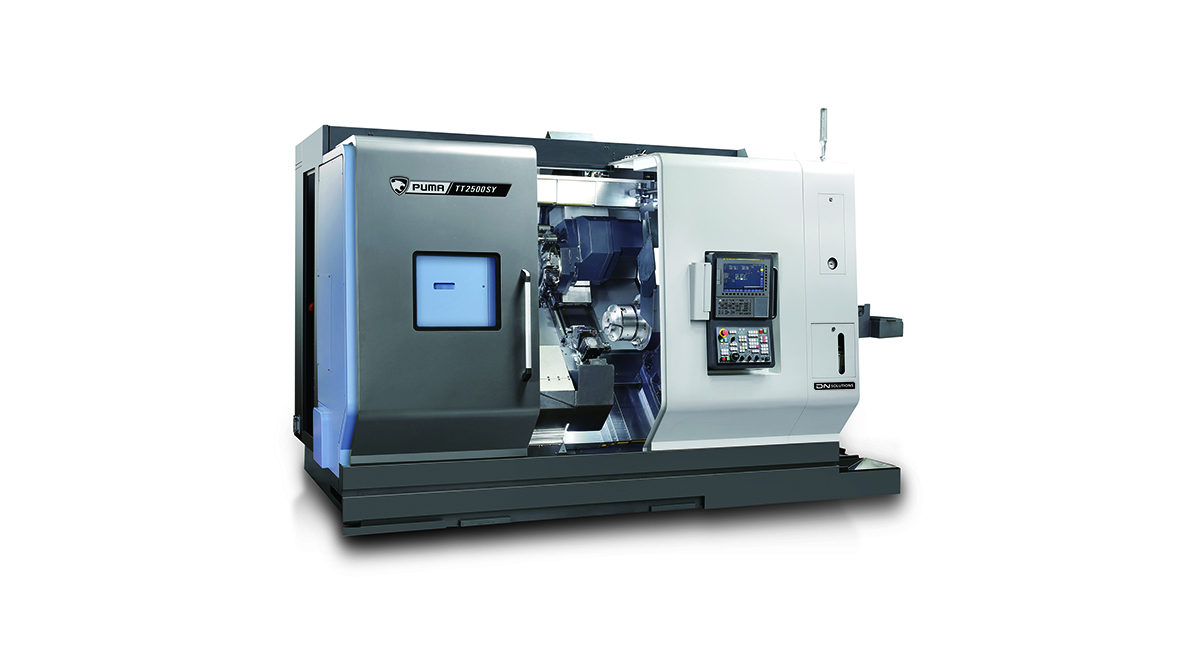

PUMA TT2500SY

10 inch

390 / 300 mm

350 mm

20 m/min

24 m/min

3500 r/min

26/22 kW

433.2 N·m

3500 r/min

26 kW

12 ea

5000 r/min

4050 mm

2480 mm

2210 mm

12700 kg
