Multi-function Mill Turn Center

PUMA MX series

High Performance, Multi-Axis Mill Turn Center

13
The MX Series is a roller linear guideway multi-axis and multi-tasking turning and milling machine.

Highlight

High Precision

Multitasking Capability

Faster Machining

Shorter Setting Time

Multi-axis and multi-tasking capabilities - in one.

PUMA MX series machines feature 3 high-performance spindles and a lower turret.

Outstanding control delivers higher precision

0.001-degree precision control function of B-axis
and C-axis enables high-precision machining.

Minimized thermal displacement of spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs. Easy and convenient functions.

Optimized cooling solution and smart thermal compensation ensure high precision even in during long machining runs and extended use.

Safety design to decrease collision-caused damage.

Side-to-side movable swiveling operation panel with adjustable height settings.

User friendly work guidance function.

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

LEFT SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

RIGHT SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

DIMENSIONS

Length

Height

Width

Weight

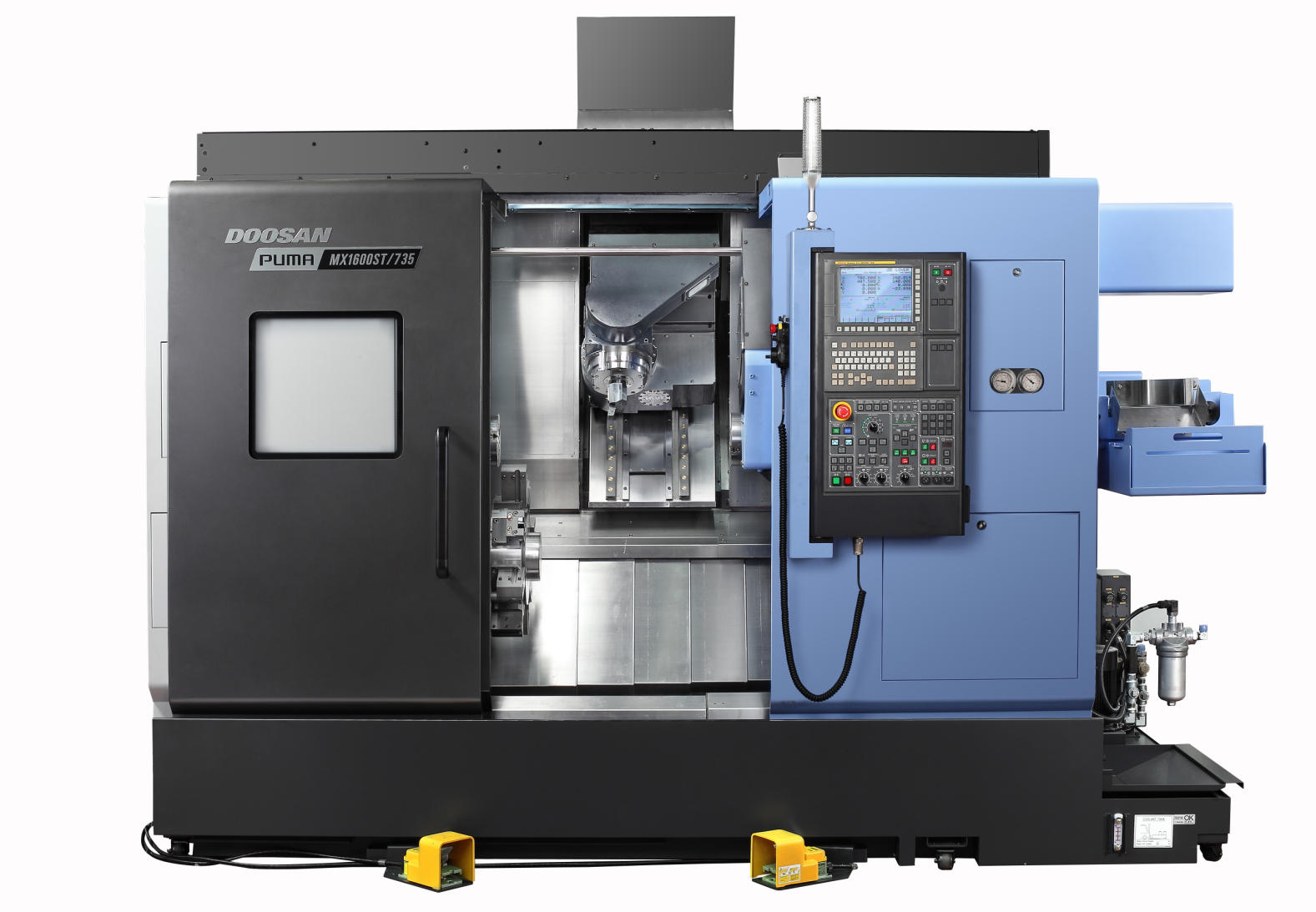

PUMA MX1600/735

6 inch (Left)

700 mm

330 mm

15/11 r/min

6000 kW

208 N·m

3300 mm

2780 mm

2686 mm

10800 kg

PUMA MX1600

6 inch (Left)

900 mm

330 mm

15/11 r/min

6000 kW

208 N·m

3800 mm

2530 mm

2760 mm

11100 kg

PUMA MX1600S/735

6 inch (Left)

700 mm

330 mm

15/11 r/min

6000 kW

208 N·m

15/11 r/min

6000 kW

208 N·m

3300 mm

2686 mm

2780 mm

11100 kg

PUMA MX1600S

6 inch (Left)

900

330

15/11 r/min

6000 kW

208 N·m

15/11 r/min

6000 kW

208 N·m

3800 mm

2530 mm

2760 mm

11400 kg

PUMA MX1600T/735

6 inch (Left)

700 mm

330 mm

15/11 r/min

6000 kW

208 N·m

3300 mm

2686 mm

2780 mm

11000 kg

PUMA MX1600T

6 inch (Left)

900 mm

330 mm

15/11 r/min

6000 kW

208 N·m

3800 mm

2530 mm

2760 mm

11300 kg

PUMA MX1600ST/735

6 inch (Left)

700 mm

330 mm

15/11 r/min

6000 kW

208 N·m

15/11 r/min

6000 kW

208 N·m

3300 mm

2686 mm

2780 mm

11300 kg

PUMA MX1600ST

6 inch (Left)

330 mm

900 mm

6000 r/min

15/11 kW

208 N·m

6000 r/min

15 kW

208 N·m

3800 mm

2760 mm

2530 mm

11600 kg

PUMA MX2100

8 inch (Left)

1020 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

4850 mm

2525 mm

2805 mm

11500 kg

PUMA MX2100L

8 inch (Left)

1520 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

5945 mm

2490 mm

2805 mm

12800 kg

PUMA MX2100S

8 inch (Left)

1020 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

22/18.5 r/min

5000 kW

318 N·m

4850 mm

2525 mm

2805 mm

11800 kg

PUMA MX2100LS

8 inch (Left)

1520 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

22/18.5 r/min

5000 kW

318 N·m

5945 mm

2490 mm

2805 mm

13800 kg

PUMA MX2100T

8 inch (Left)

1020 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

4850 mm

2525 mm

2805 mm

11700 kg

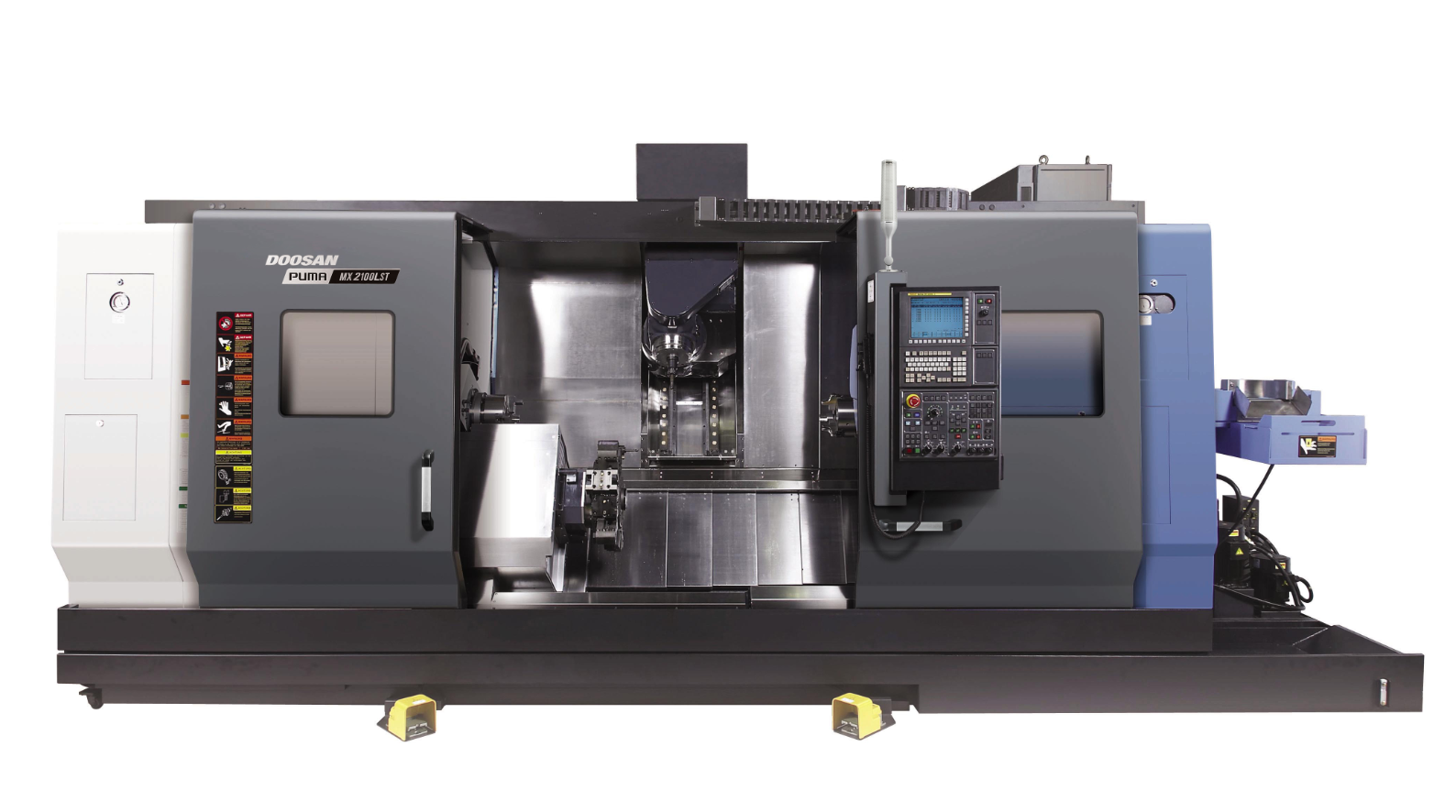

PUMA MX2100LT

8 inch (Left)

1520 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

5945 mm

2490 mm

2805 mm

13700 kg

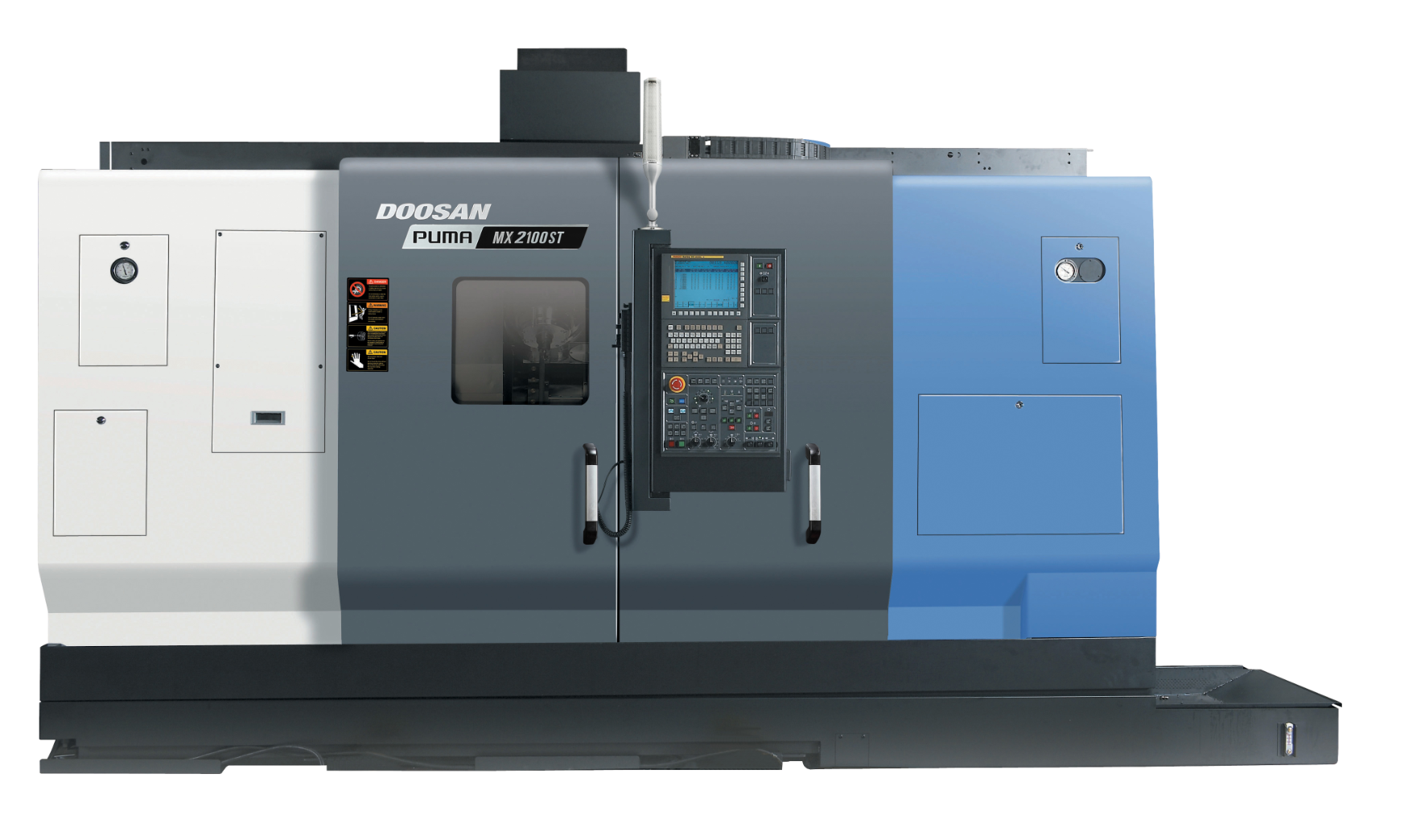

PUMA MX2100ST

8 inch (Left)

540 mm

1020 mm

5000 r/min

22/18.5 kW

318 N·m

5000 r/min

22/18.5 kW

318 N·m

4850 mm

2805 mm

2525 mm

12000 kg

PUMA MX2100LST

8 inch (Left)

1520 mm

540 mm

22/18.5 r/min

5000 kW

318 N·m

22/18.5 r/min

5000 kW

318 N·m

5945 mm

2490 mm

2805 mm

14000 kg

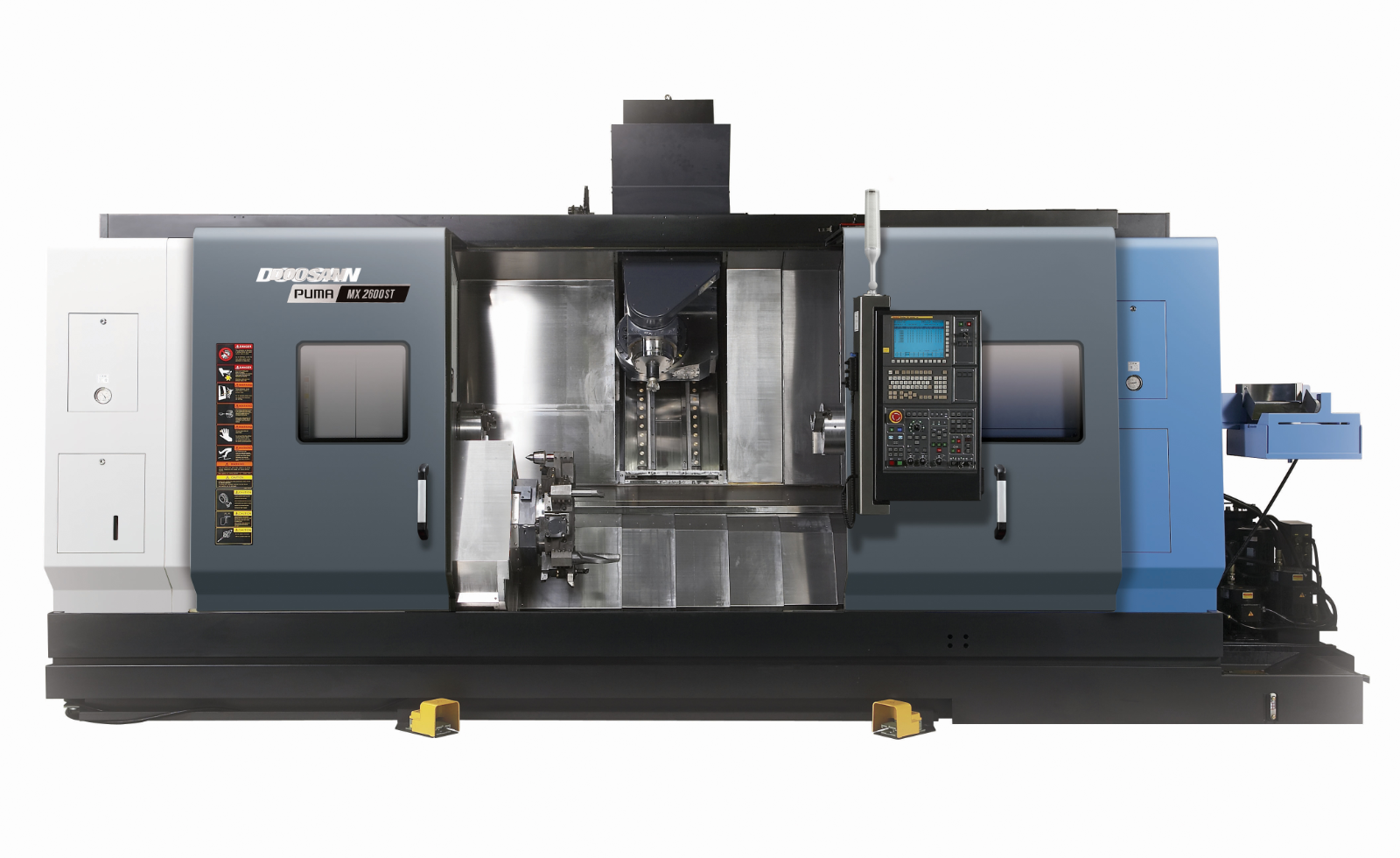

PUMA MX2600T

10 inch (Left)

1540 mm

760 mm

26/22 r/min

4000 kW

700 N·m

6070 mm

2682 mm

3011 mm

14900 kg

PUMA MX2600ST

10 inch (Left)

1540 mm

760 mm

26/22 r/min

4000 kW

700 N·m

26/22 r/min

4000 kW

700 N·m

6070 mm

2682 mm

3011 mm

15500 kg
