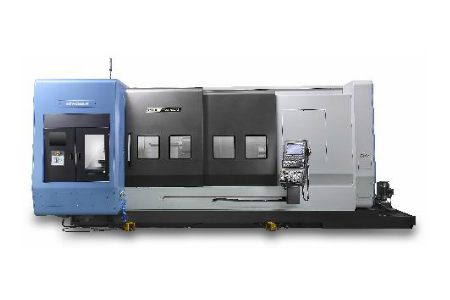

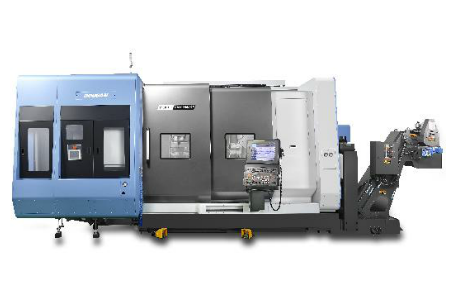

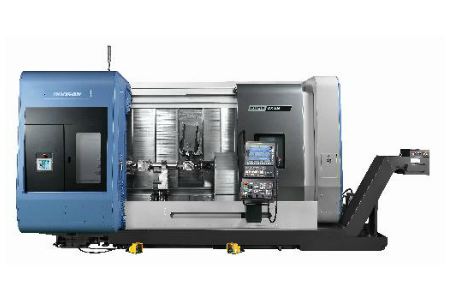

Multi-function Mill Turn Center

SMX series

High Performance Multi-Axis Mill Turn Machine

19
With a total of nine axes on the SMX Series,
there is essentially no limit to what you can create. SMX machines are equipped with larger chuck sizes than PUMA MX machines but deliver the same high performance and impressive flexibility. These machines make all the difference.

Video

SMX 3100ST(CUFOS)

Highlight

High Precision

Multitasking Capability

Faster Machining

Shorter Setting Time

Powerful multi-tasking capacity for higher productivity

Even higher multi-tasking capability is available from SMX machines through the combination of the left and right spindles, the B-axis milling function and a lower turret ideal- making the machines ideal for complex, high-precision machining.

Orthogonal structure maximizes machining space.

12 station high-rigidity servo turret ensures accurate and powerful cutting performance, and outstanding process reliability.

Outstanding control delivers higher precision

0.0001-degree precision control function of B-axis
and C-axis enables high-precision machining.

Minimized thermal displacement of the spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs and extended use.

Easy and convenient functions

Front located tool magazine and convenient ATC operation panel make it easy to change and replace tools, and monitor and check tool change operations.

Side-to-side movable swivelling operation panel with adjustable height settings. User friendly work guidance function.

User friendly work guidance function.

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

LEFT SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

RIGHT SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

DIMENSIONS

Length

Height

Width

Weight

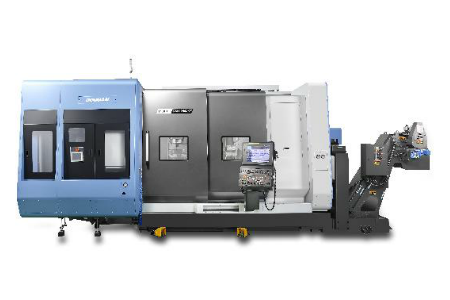

SMX2100

8 inch

600 mm

1040 mm

5000 r/min

22/22/18.5/15 kW

467 N·m

3950 mm

2767 mm

2770 mm

14900 kg

SMX2100S

8 inch

600 mm

1040 mm

5000 r/min

22/22/18.5/15 kW

467 N·m

5000 r/min

22/22/18.5/15 kW

467 N·m

3950 mm

2767 mm

2770 mm

15200 kg

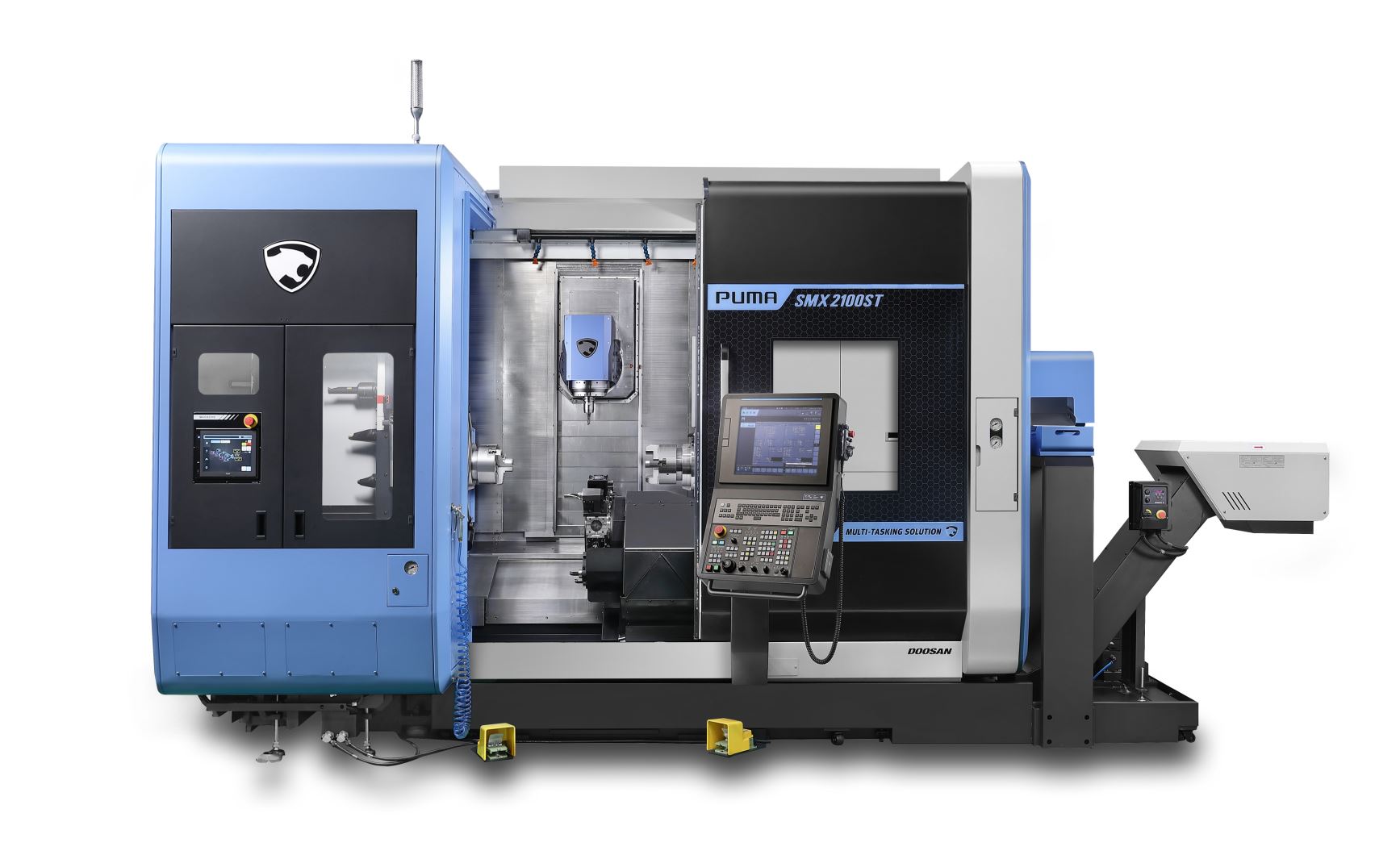

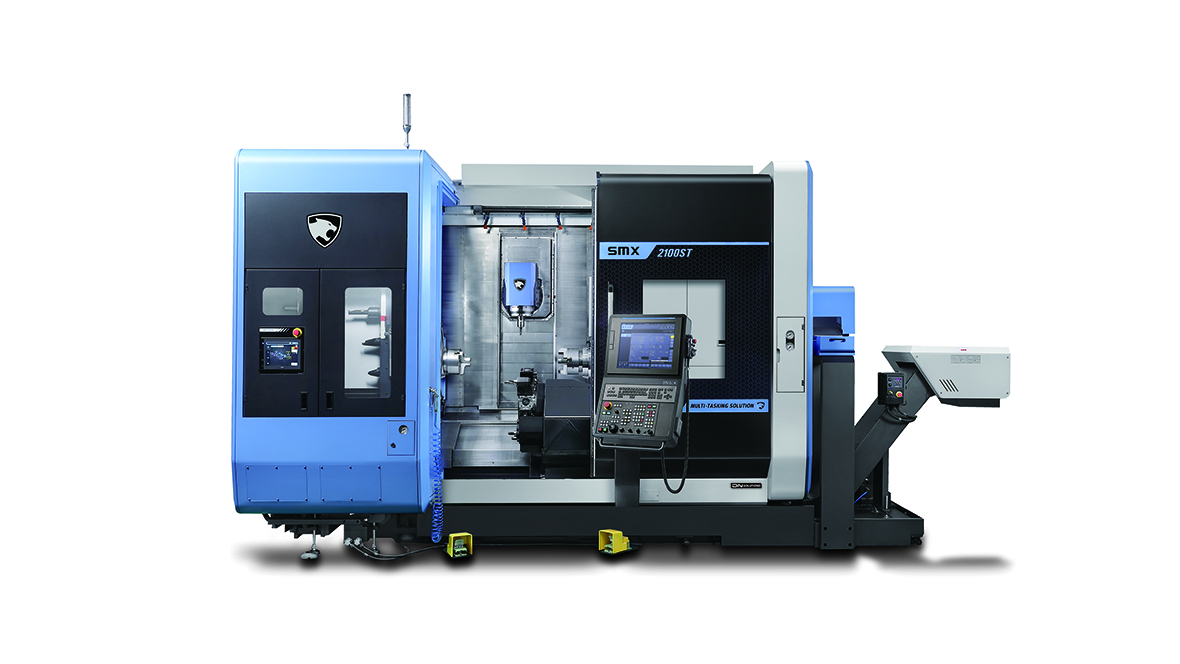

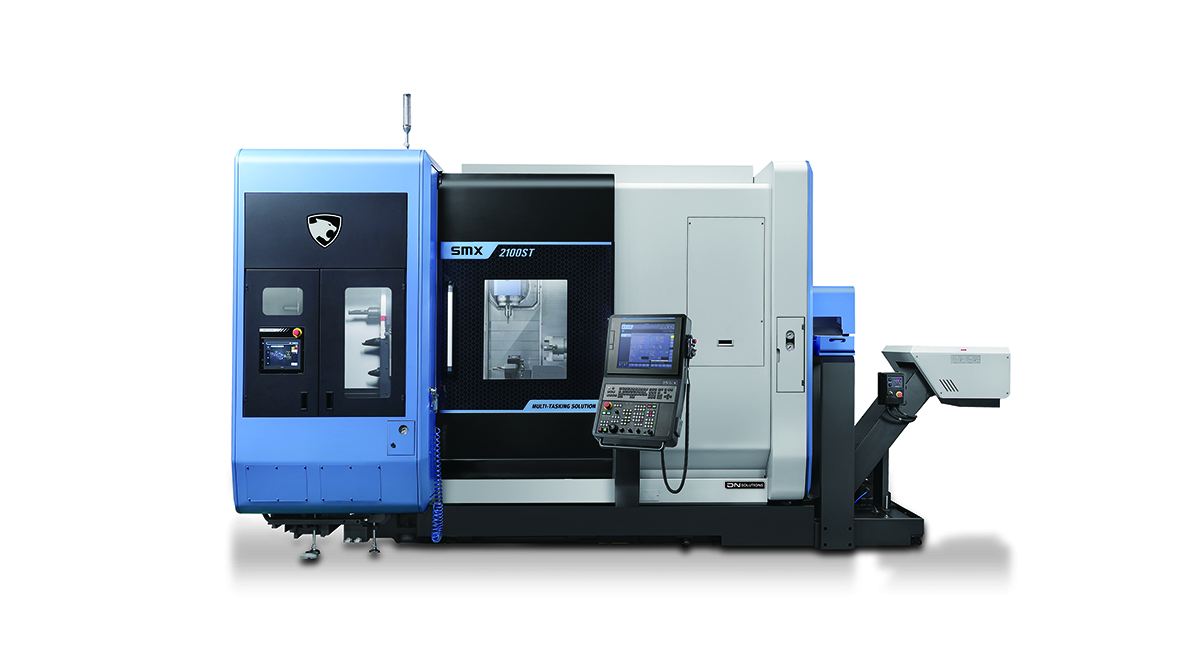

SMX 2100ST

8 inch

600 mm

1040 mm

5000 r/min

22/22/18.5/15 kW

467 N·m

5000 r/min

22/22/18.5/15 kW

467 N·m

3950 mm

2767 mm

2770 mm

15800 kg

SMX2100B

10 inch

600 mm

1040 mm

4000 r/min

22/22/22/15 kW

512 N·m

3950 mm

2767 mm

2770 mm

15000 kg

SMX2100SB

10 inch

600 mm

1040 mm

4000 r/min

22/22/22/15 kW

512 N·m

5000 r/min

22/22/18.5/15 kW

467 N·m

3950 mm

2767 mm

2770 mm

15300 kg

SMX2100STB

10 inch

600 mm

1040 mm

4000 r/min

22/22/22/15 kW

512 N·m

5000 r/min

22/22/18.5/15 kW

467 N·m

3950 mm

2767 mm

2770 mm

15900 kg

SMX2600

10 inch

660 mm

1540 mm

4000 r/min

26/22 kW

700 N·m

-

-

-

4900 mm

2750 mm

3011 mm

15800 kg

SMX2600S

10 inch

660 mm

1540 mm

4000 r/min

26/22 kW

700 N·m

4000 r/min

26/22 kW

700 N·m

4900 mm

2750 mm

3011 mm

16200 kg

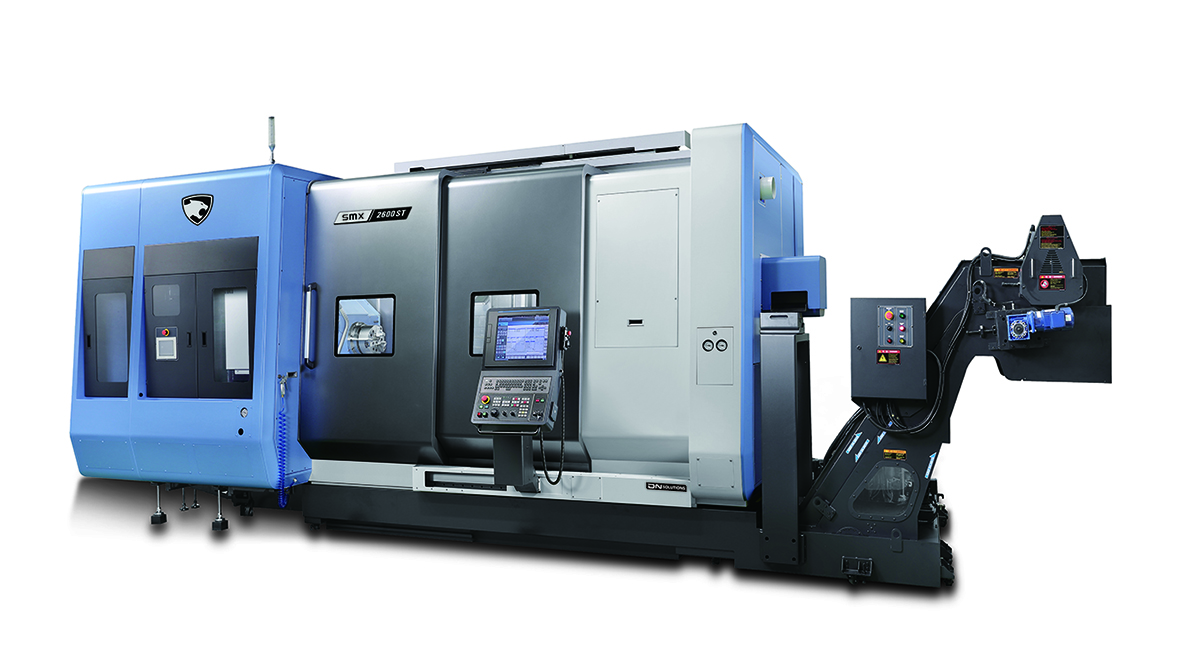

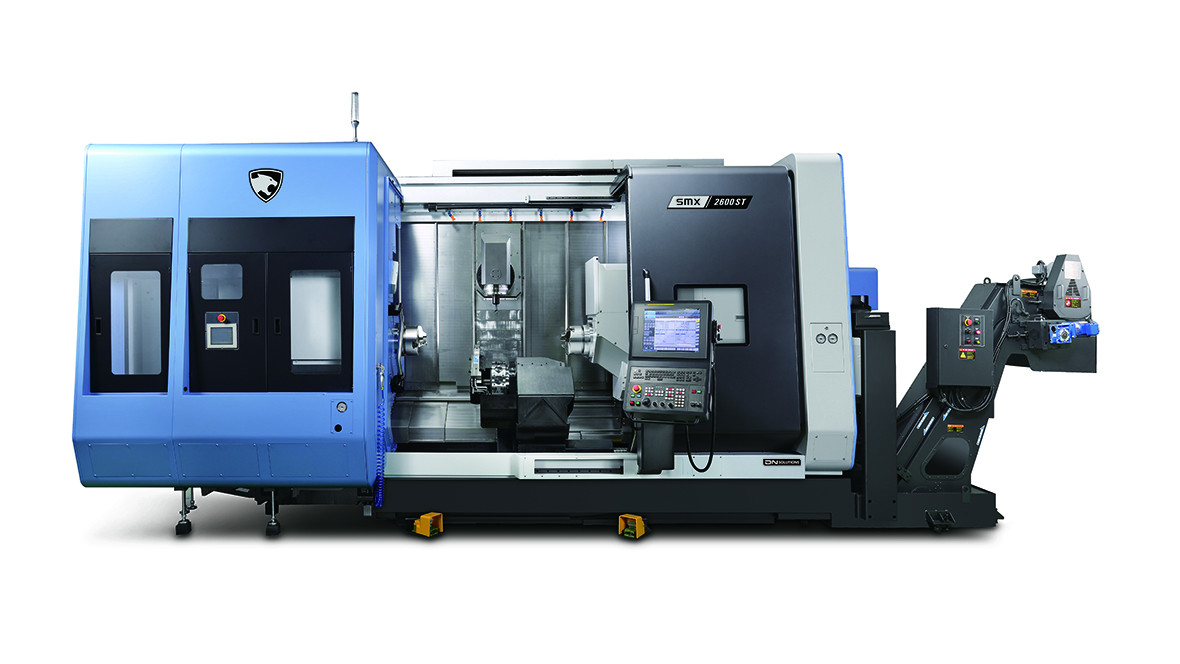

SMX2600ST

10 inch

660 mm

1540 mm

4000 r/min

26/22 kW

700 N·m

4000 r/min

26/22 kW

621 N·m

4900 mm

2820 mm

3021 mm

18000 kg

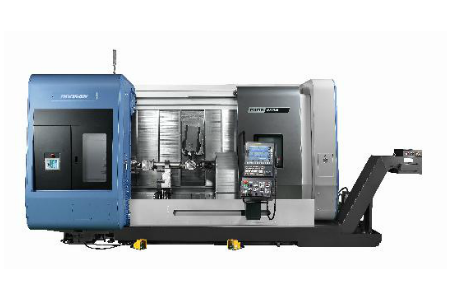

SMX3100

12 inch

660 mm

1540 mm

3000 r/min

30/25 kW

1203 N·m

-

-

-

4900 mm

2750 mm

3011 mm

16300 kg

SMX3100L

12 inch

660 mm

2540 mm

3000 r/min

30/25 W

1203 N·m

-

-

-

6400 mm

2850 mm

3011 mm

18500 kg

SMX3100S

12 inch

660 mm

1540 mm

3000 r/min

30/25 kW

1203 N·m

4000 r/min

26/22 kW

700 N·m

4900 mm

2850 mm

3011 mm

16700 kg

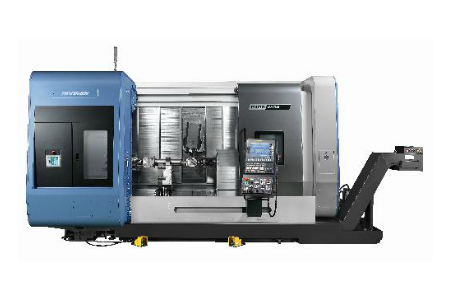

SMX3100ST

12 inch

660 mm

1540 mm

3000 r/min

30/25 kW

1203 N·m

4000 r/min

26/22 kW

621 N·m

4900 mm

2820 mm

3021 mm

18500 kg

SMX3100LS

12 inch

660 mm

2540 mm

3000 r/min

30/25 kW

1203 N·m

4000 r/min

26/22 kW

700 N·m

6400 mm

2850 mm

3011 mm

20500 kg

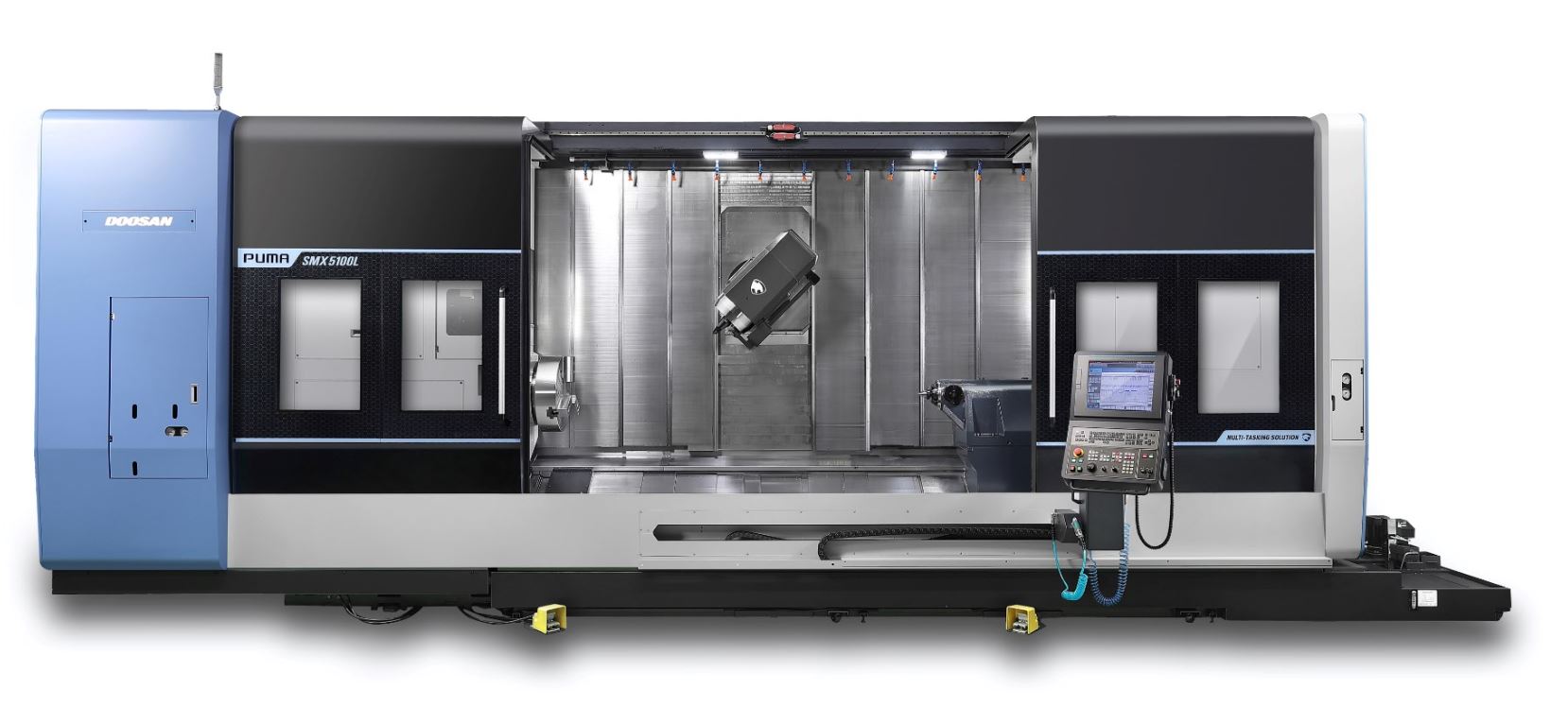

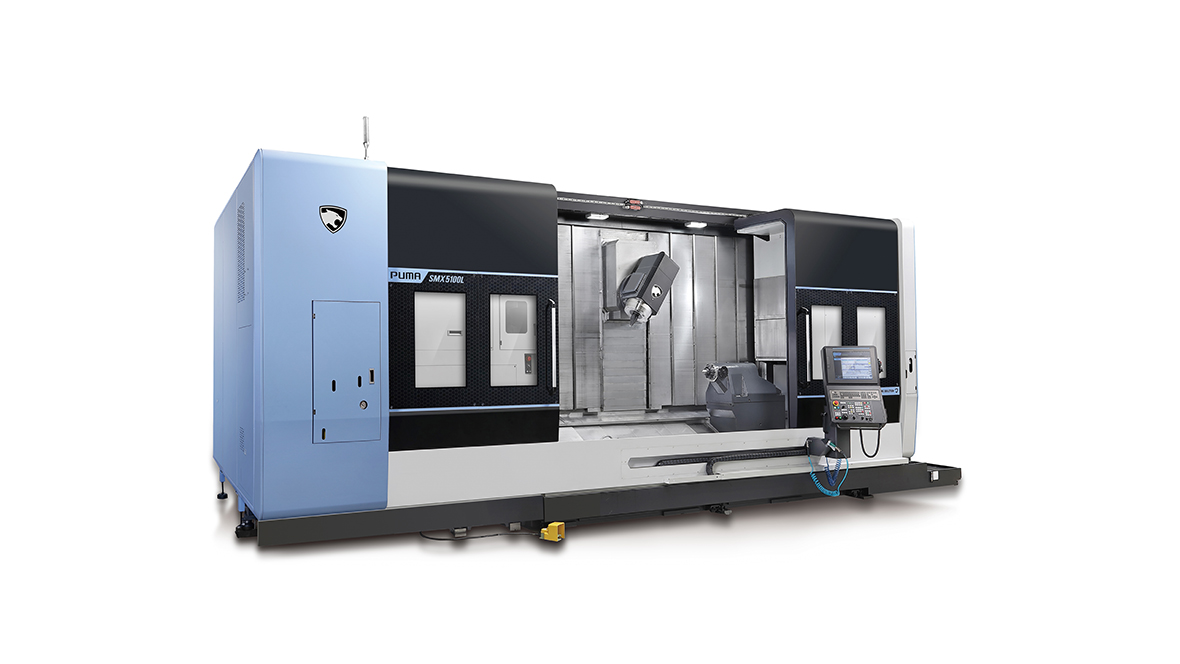

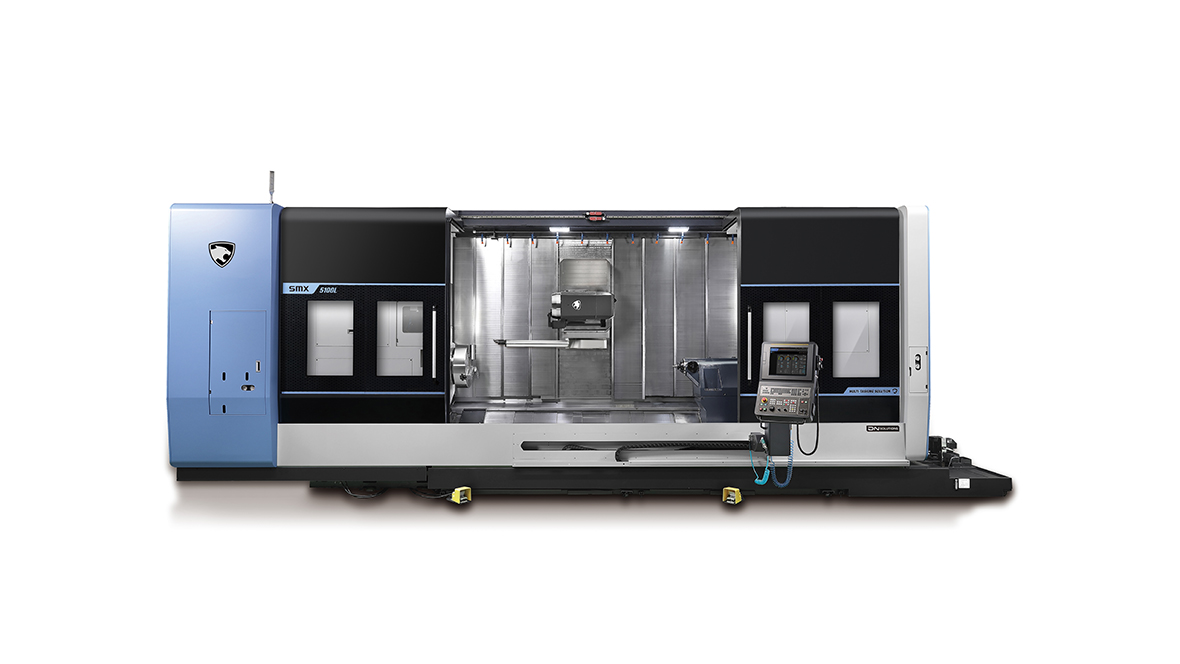

SMX5100L

15 inch

830 mm

3050 mm

2400 r/min

37/30 kW

1643 N∙m

9222 mm

3346 mm

3597 mm

31000 kg

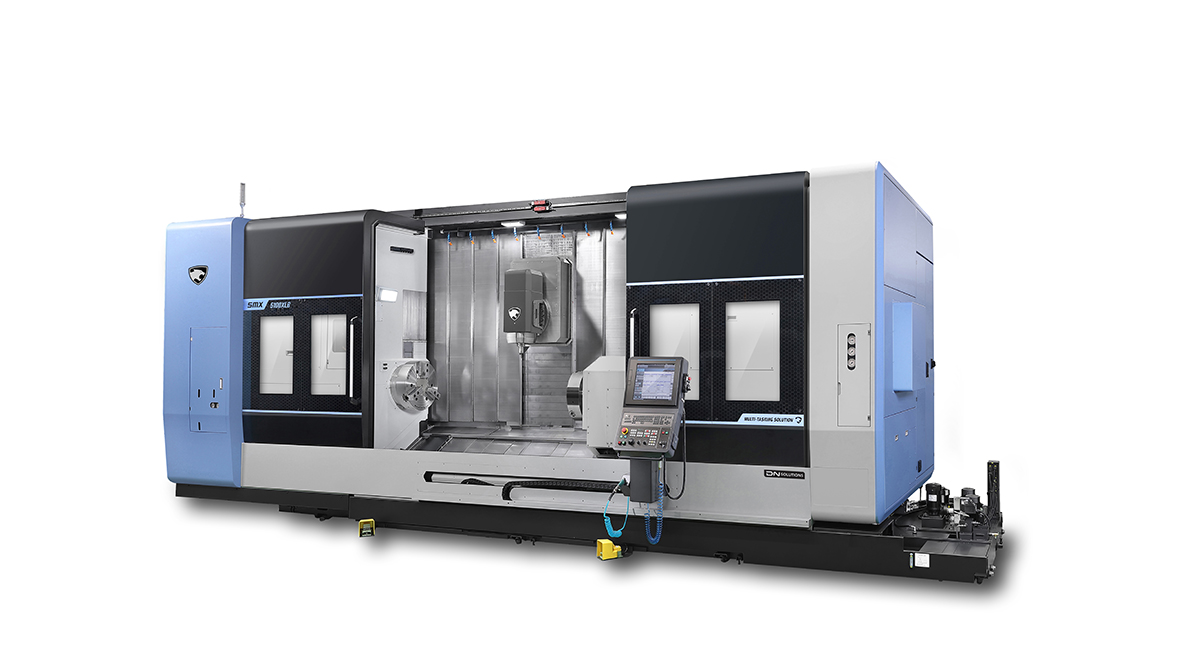

SMX 5100LB

21 inch

830 mm

3050 mm

1500 r/min

37/30 kW

4200 N∙m

9222 mm

3346 mm

3597 mm

33000 kg

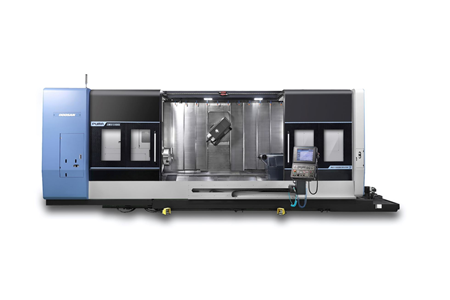

SMX5100LS

15 inch

830 mm

3050 mm

2400 r/min

37/30 kW

1643 N∙m

2400 r/min

37/30 kW

1643 N∙m

9522 mm

3346 mm

3597 mm

32200 kg

SMX5100LSB

21 inch

830 mm

3050 mm

1500 r/min

37/30 kW

4200 N∙m

1500 r/min

37/30 kW

4200 N∙m

9522 mm

3346 mm

3597 mm

35900 kg

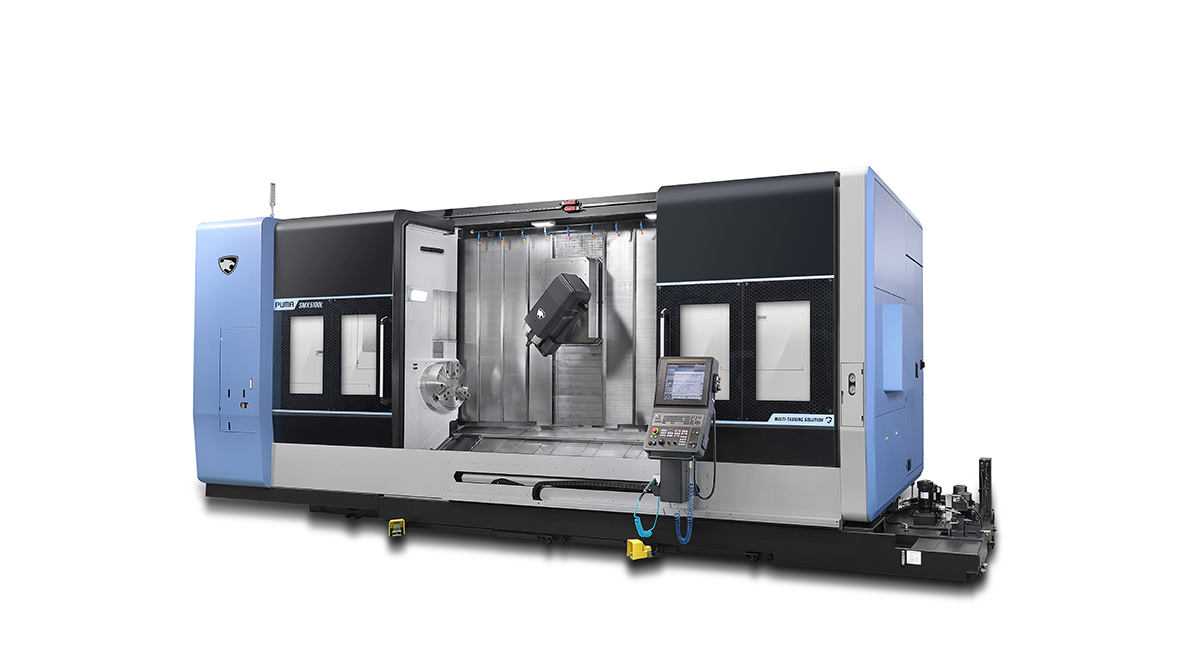

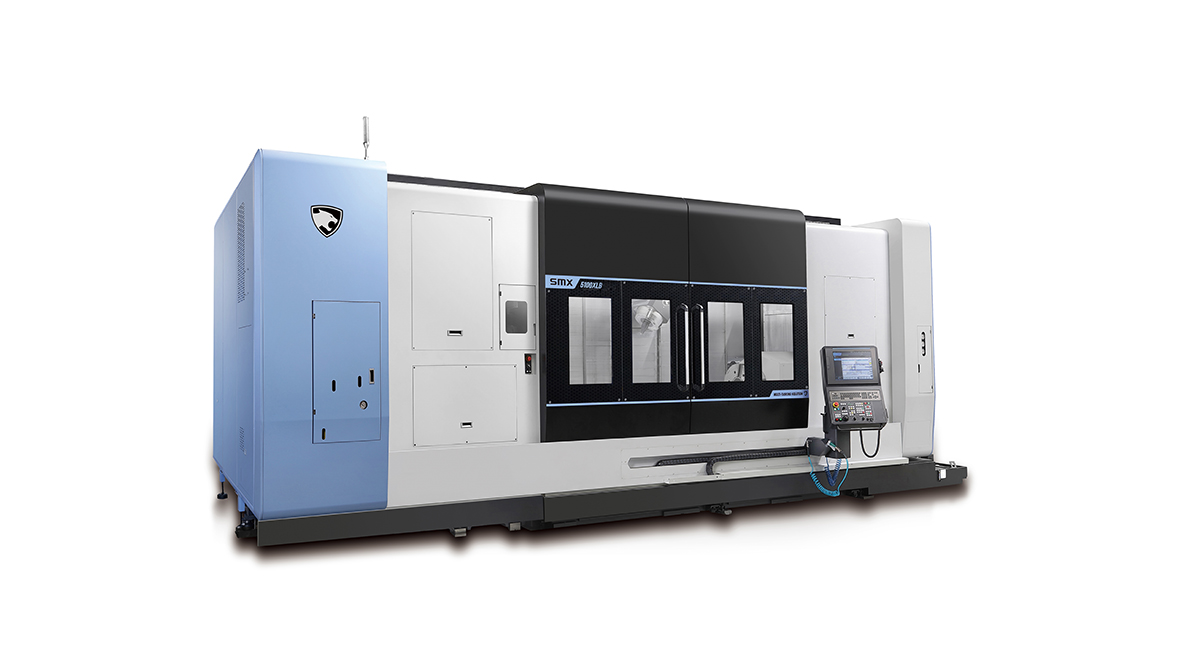

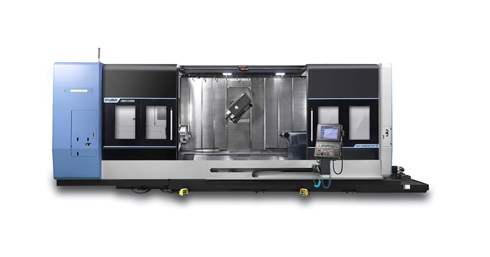

SMX5100XL

15 inch

830 mm

4070 mm

2400 r/min

37/30 kW

1643 N·m

10749 mm

3398 mm

3597 mm

37000 kg

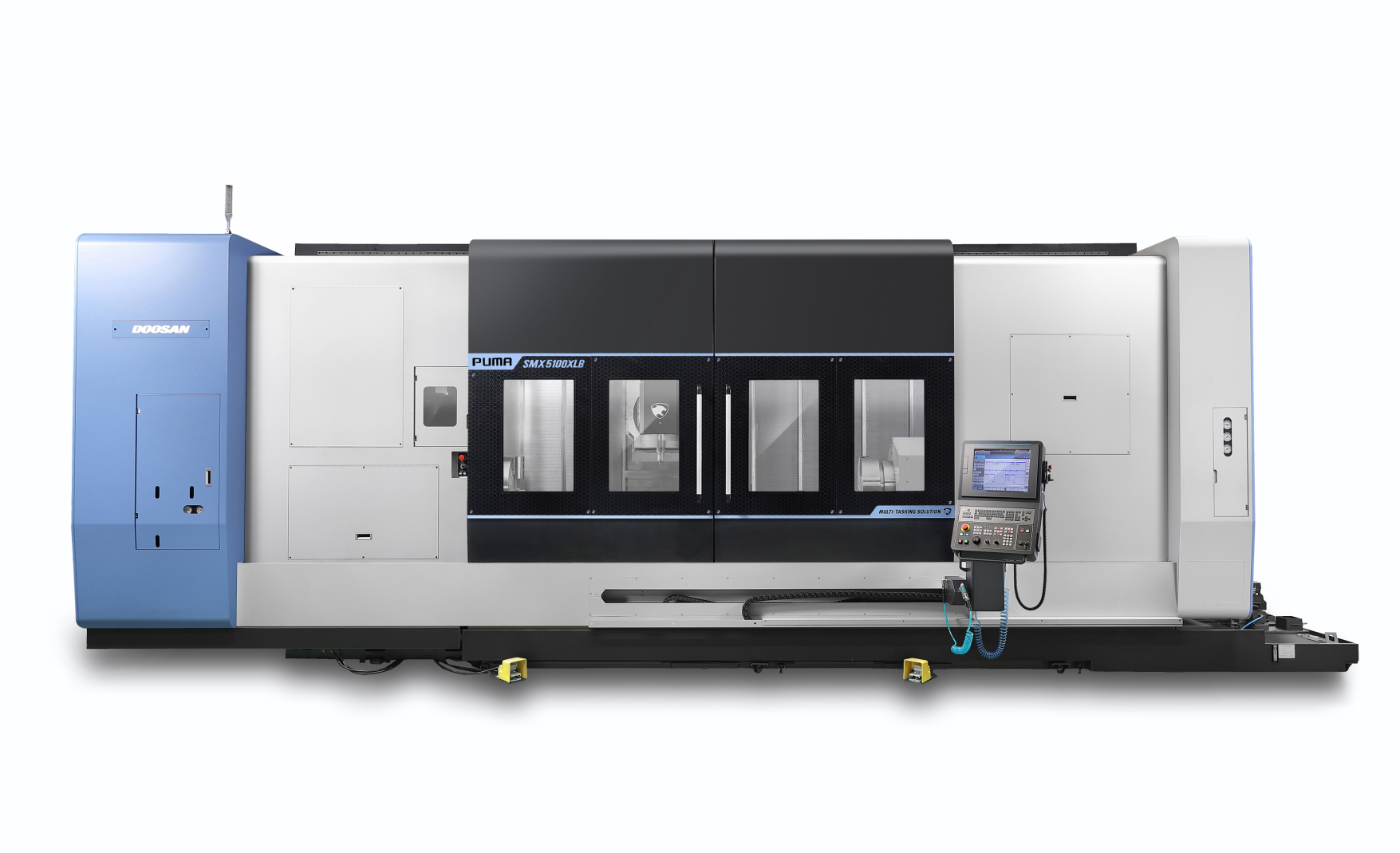

SMX5100XLB

21 inch

830 mm

4070 mm

1500 r/min

37/30 kW

4200 N·m

10749 mm

3398 mm

3597 mm

39000 kg
