Single Turret Vertical

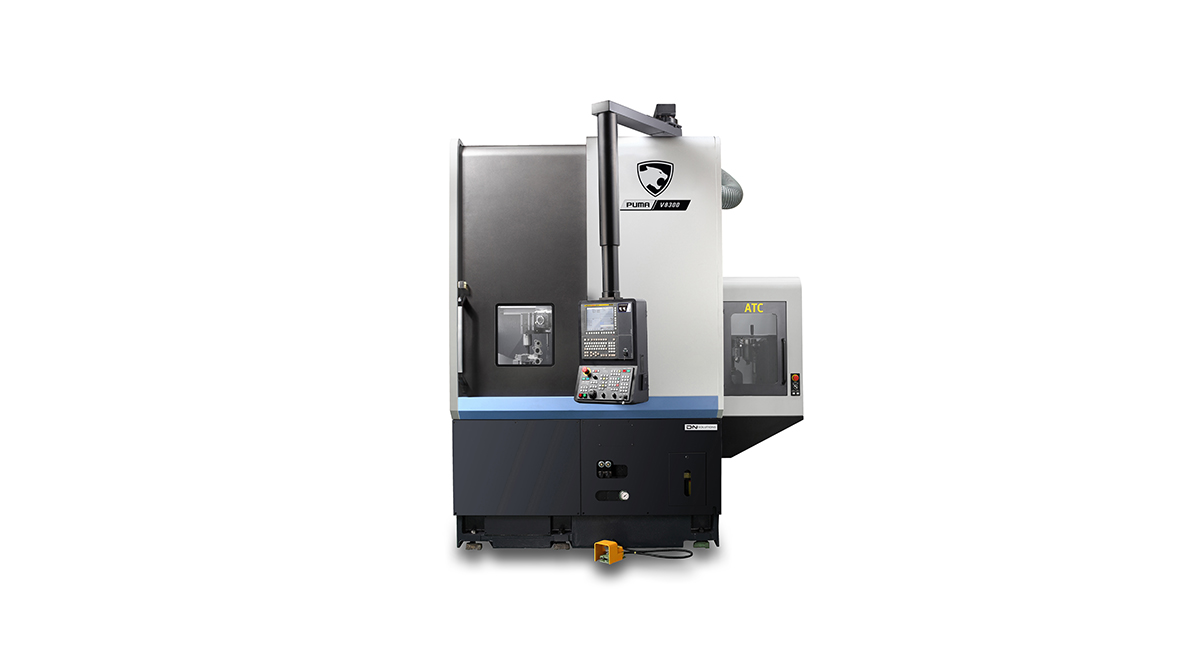

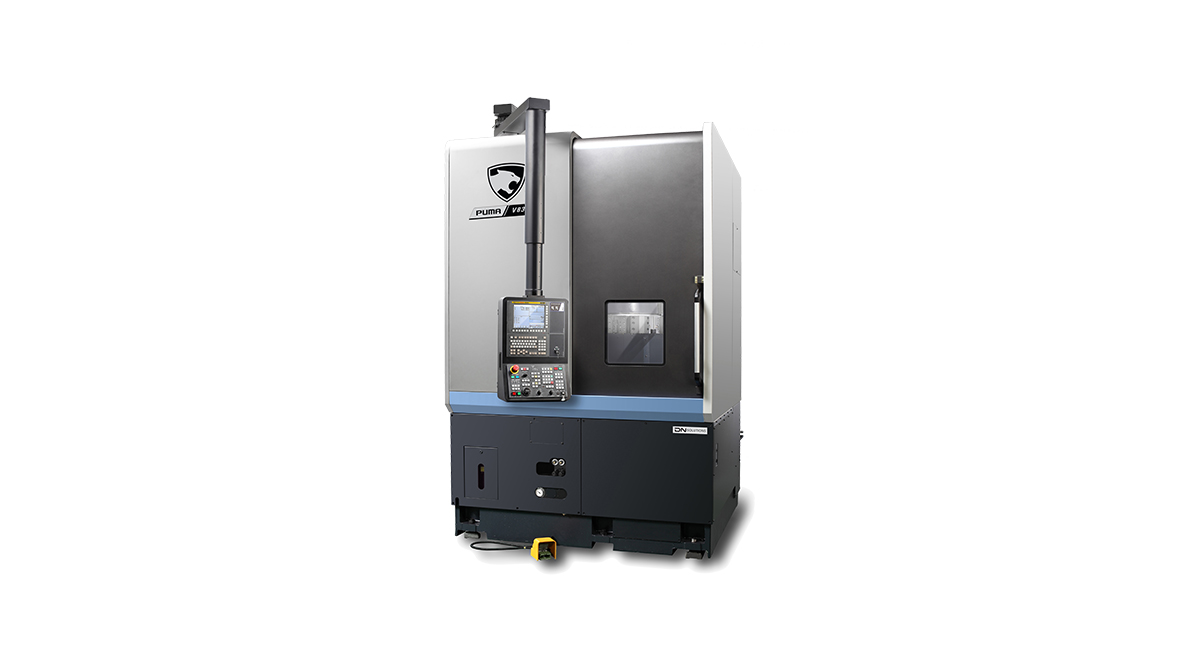

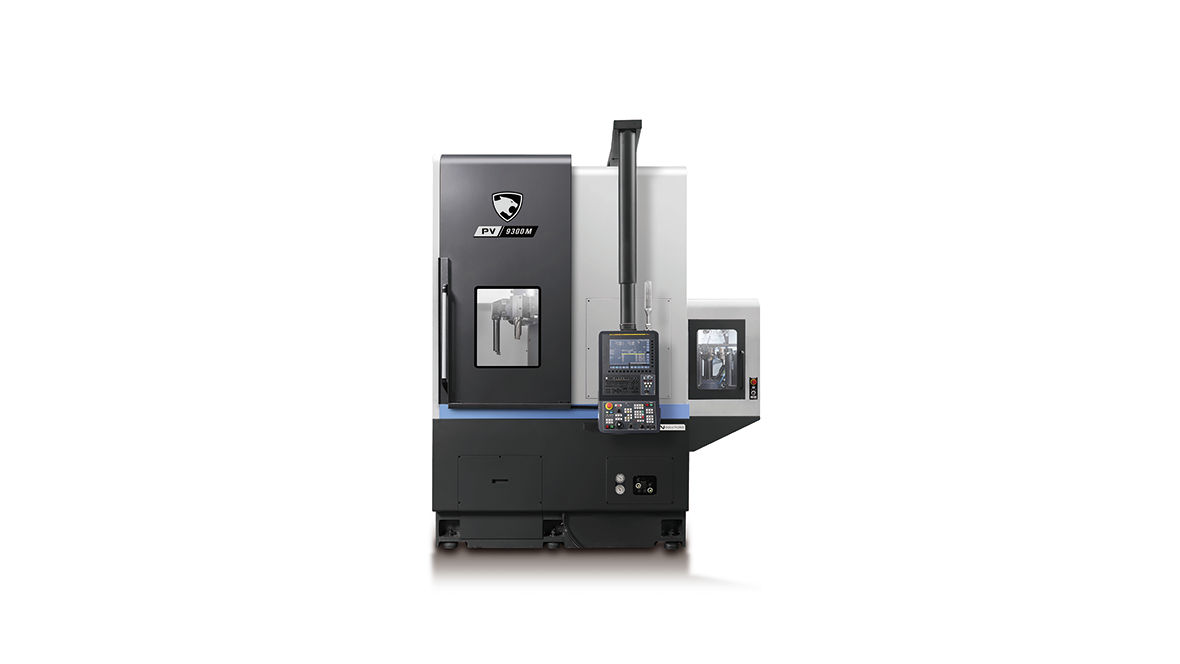

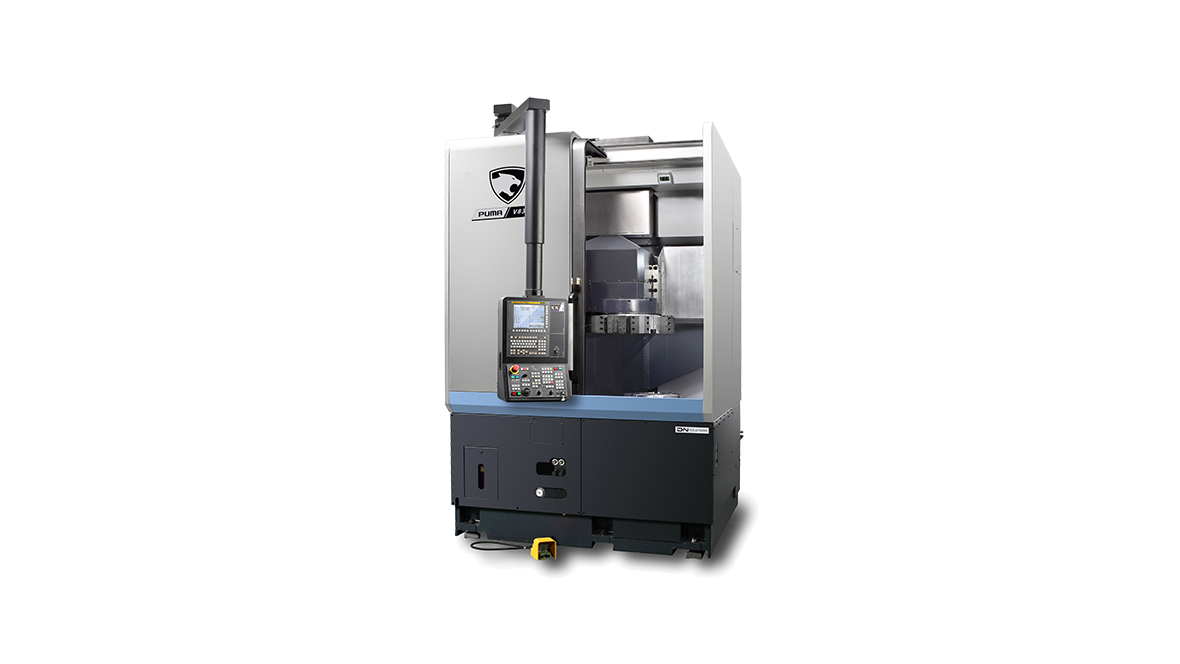

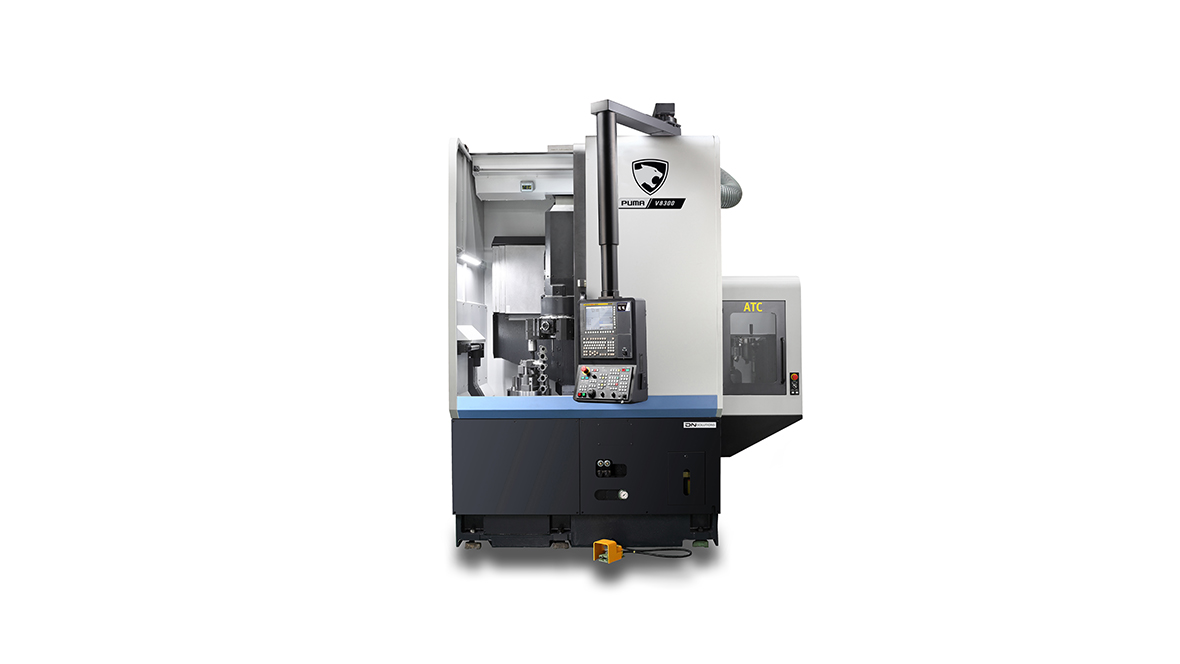

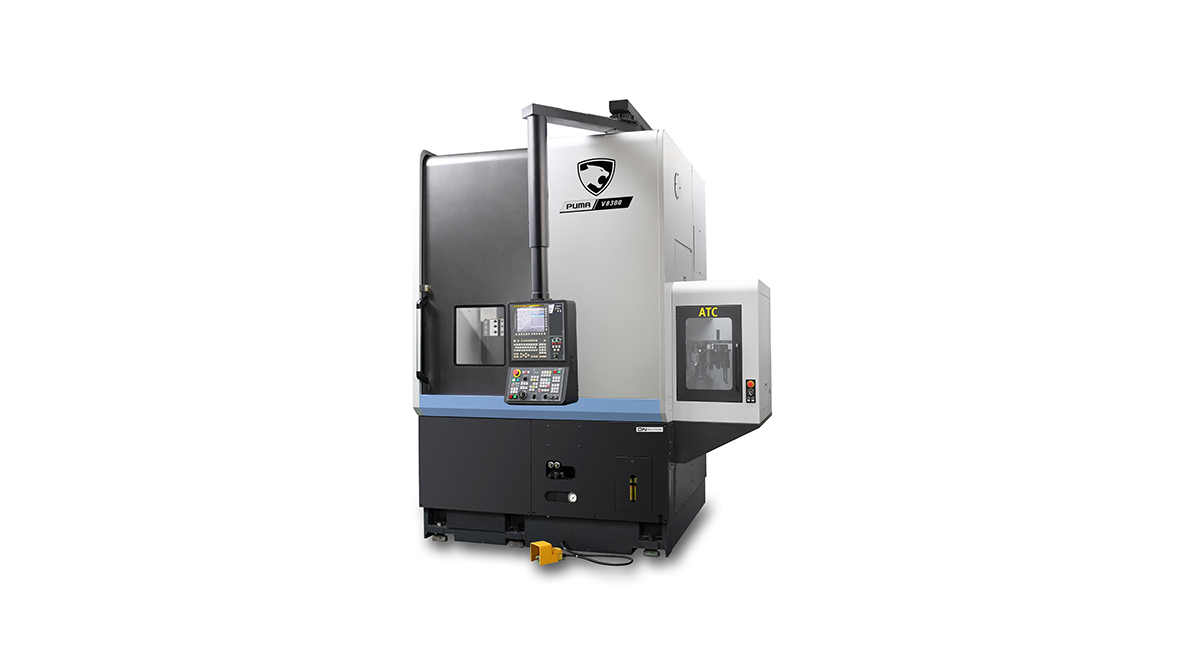

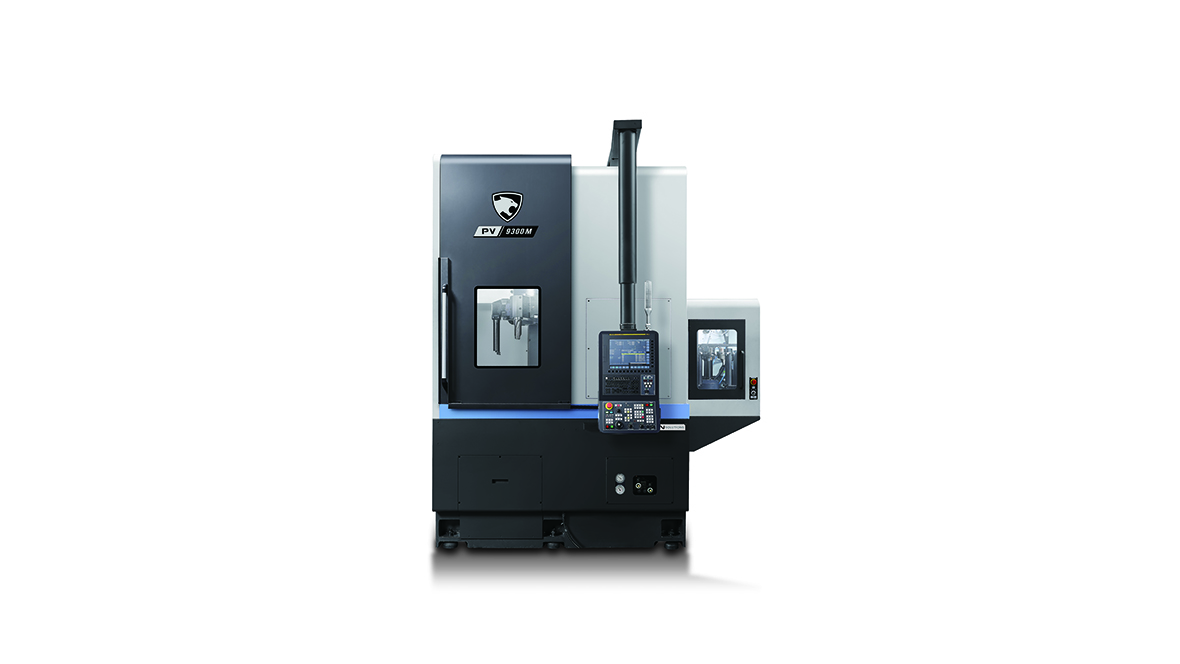

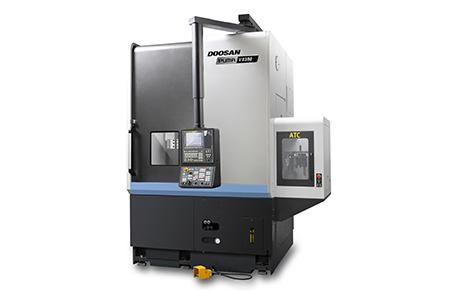

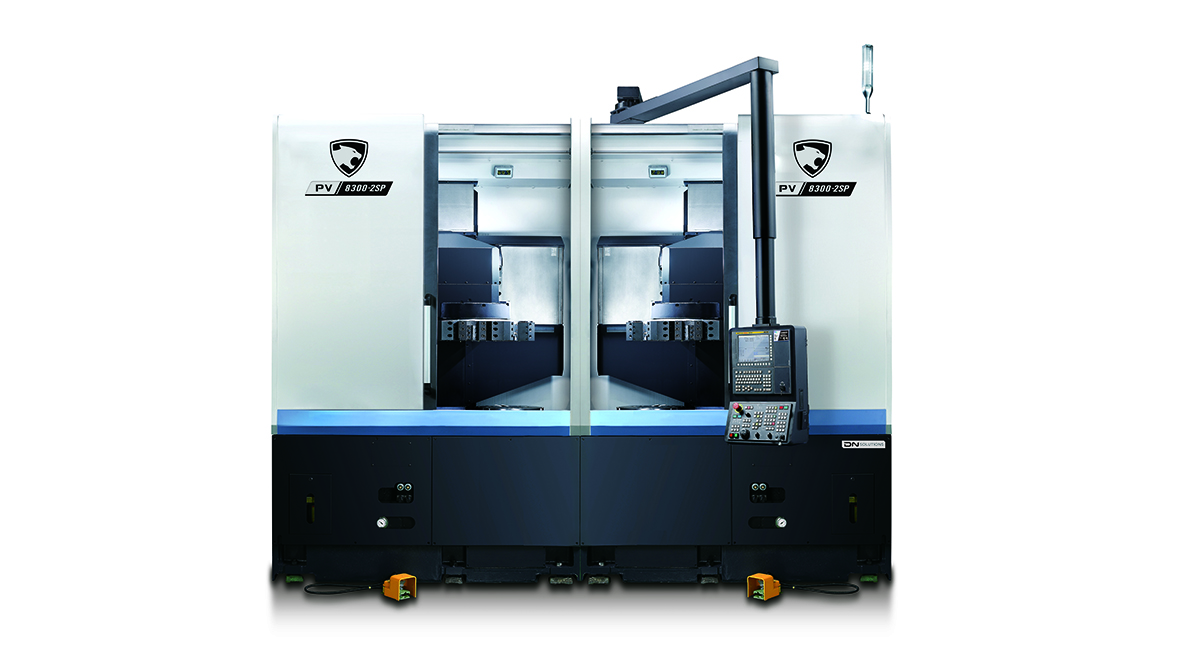

PUMA V8300/9300 series

Medium-Size High-Performance and Heavy-Duty VTC

110
The PUMA V8300/9300 Series is a step up from the V400 in terms of size.
With a huge maximum turning diameter, accepting a range of chucks from 15" up to 32", the machines cut large workpieces down to size.

Highlight

Reliability

High Productivity

Excellent Machining Capability

Faster Machining

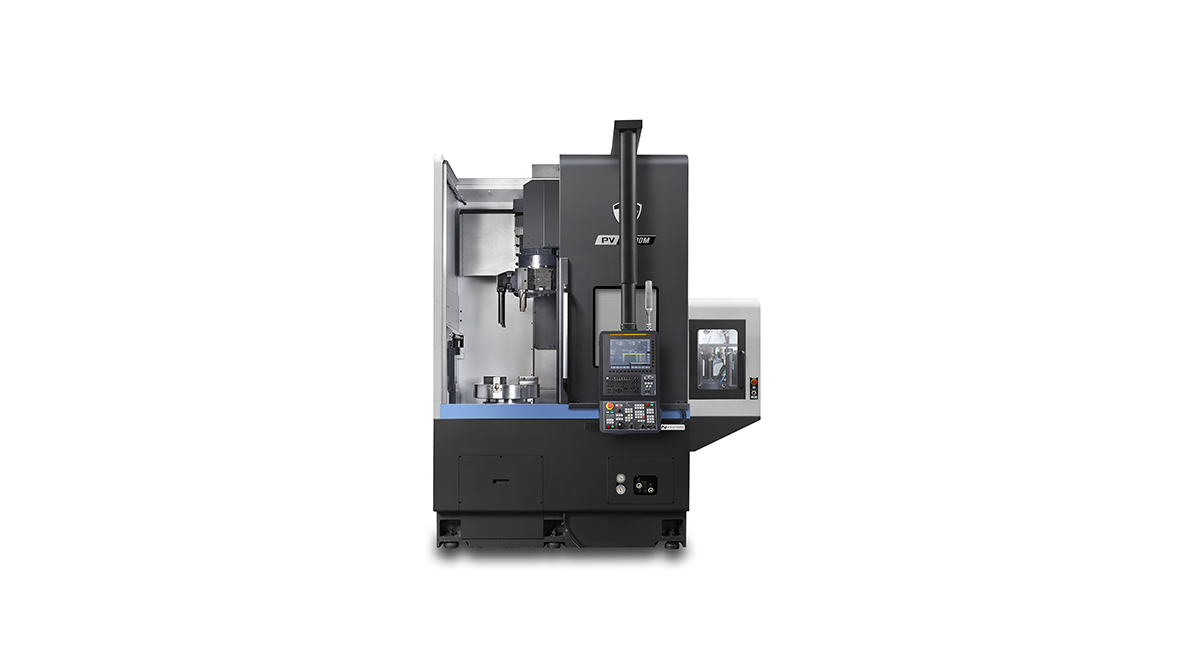

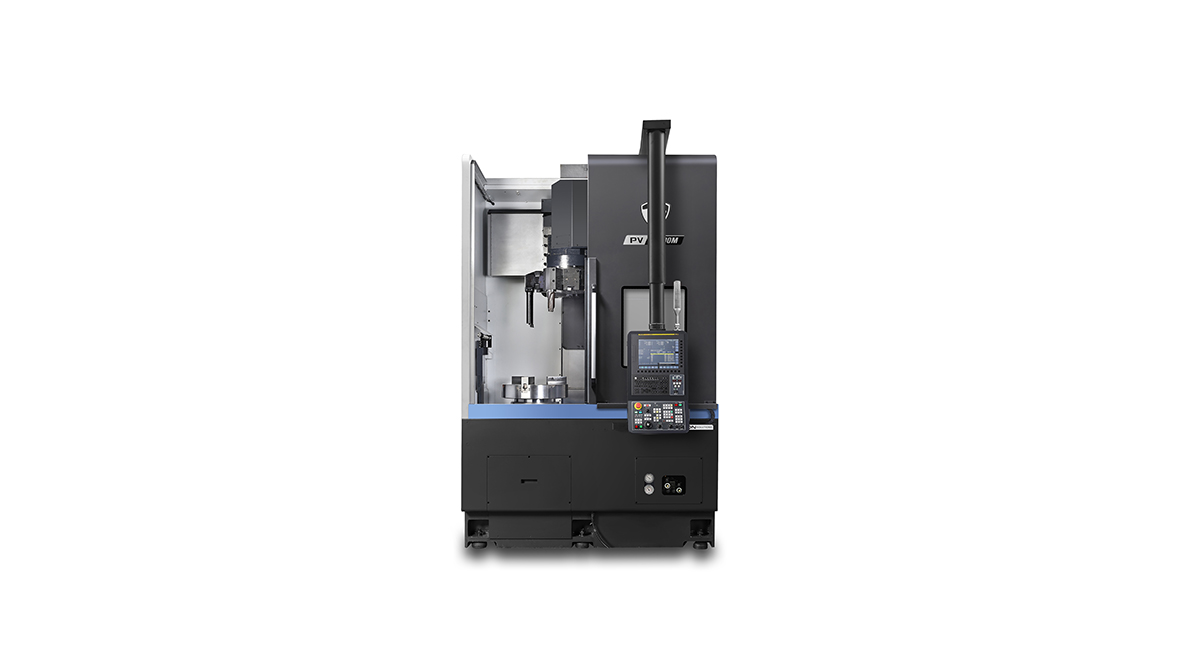

Large work zone

Max. Chuck size : 32inch (option)

Max. turning diameter of Ø 930mm

Highest Power and Machining Performance in its Class

Spindle motor provides 45 kW and 4443 N.m of power and torque

Highly reliable servo-driven turret that maintains highest level of accuracy
and reliability during long periods of operation.

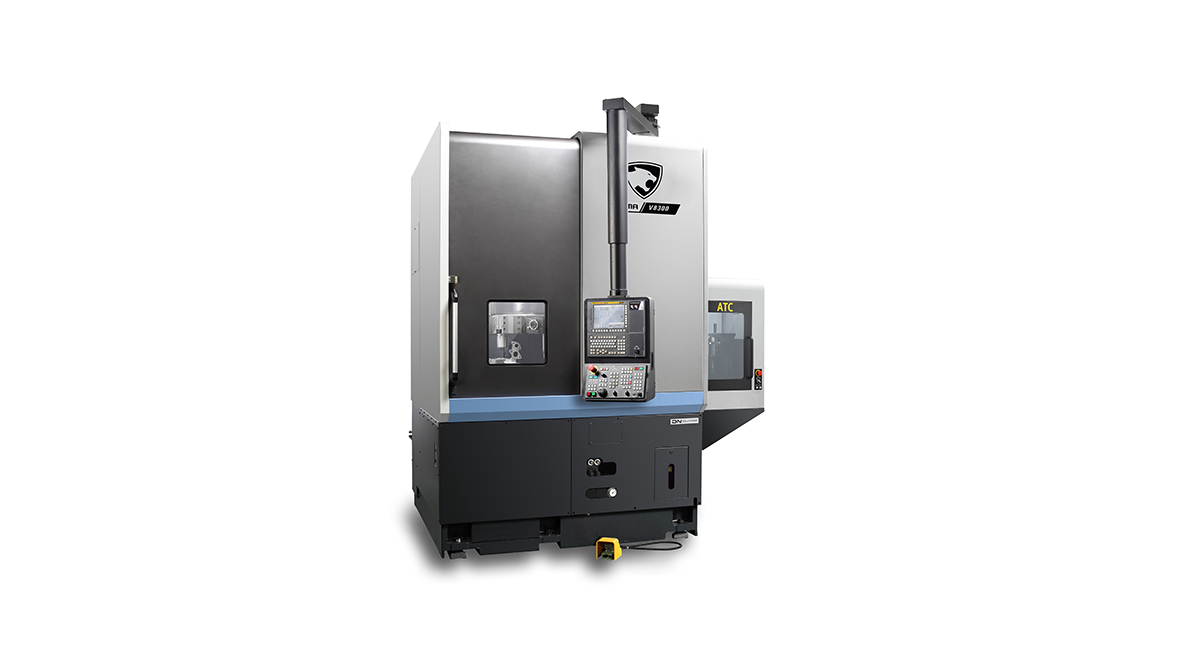

Automatic tool changer (option)

Improved Operational Efficiency, Including Chip Disposal and Operation Panel

The bed structure has been redesigned to facilitate the efficient disposal of high volumes of chips.

the height of the operation panel can be adjusted for optimum convenience. Fixed type pendants are also available to suit customers’ requirements.

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TURRET

No. of tool station

Rotary Tool r/min

DIMENSIONS

Length

Height

Width

Weight

PUMA V8300

15 inch

830 mm

780 mm

20 m/min

20 m/min

2000 r/min

37 kW

2592 N·m

12 ea

2005 mm

3636 mm

2715 mm

9400 kg

PUMA V8300M

15 inch

830 mm

780 mm

20 m/min

20 m/min

2000 r/min

37 kW

2592 N·m

12 ea

2005 mm

3636 mm

2715 mm

9500 kg

PV 9300

24 inch

930 mm

801 mm

20 m/min

20 m/min

1800 r/min

45 kW

4443  N·m

12 ea

2144 mm

3650 mm

3065 mm

11400 kg

PV 9300M

24 inch

930 mm

801 mm

20 m/min

20 m/min

1800 r/min

45 kW

4443 N.m

12 ea

4000 r/min

2144

3650

3065

11500
