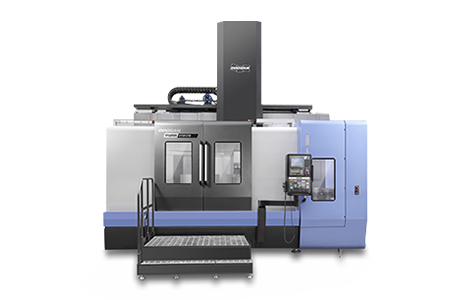

Ram Type Vertical

PUMA VTR series

DN SOLUTIONS’s Largest Rigid Box Way VTC

13
The VTR Series has a massive wide-column structure positioned on top of the
one-piece bed. This design provides the foundation for the machines’ impressive technical specifications.

Highlight

Reliability

Excellent Machining Capability

Faster Machining

Stability

Wide machining area and large capacity

Designed for High Durability and Machining Stability.

Different product line-ups , Max. Turning diameter Ø1250mm up to Ø2500mm

Max. Turning height 750 mm up to 1900 mm

High productivity, spindle with rigid a structure

Equipped with a high-capacity cooler, the thermally-symmetrical spindle delivers long life reliable and stable precision machining performance.

Max. Spindle torque : 41160 N·m(PUMA VTR2025 series)

Max. Spindle power : 70 kW (option-PUMA VTR1216/1620 series)

Automatic Chuck Changer Option

Ram spindle for high productivity

Featuring a quad-tool-holder based Ram Tool Index System that enables the use of 4 tools directly via the ram, dispensing with the need to use the ATC and thus enhancing productivity.

8000kg of tool clamping force

The servo-driven ATC tool magazine: 12ea.- 34ea.

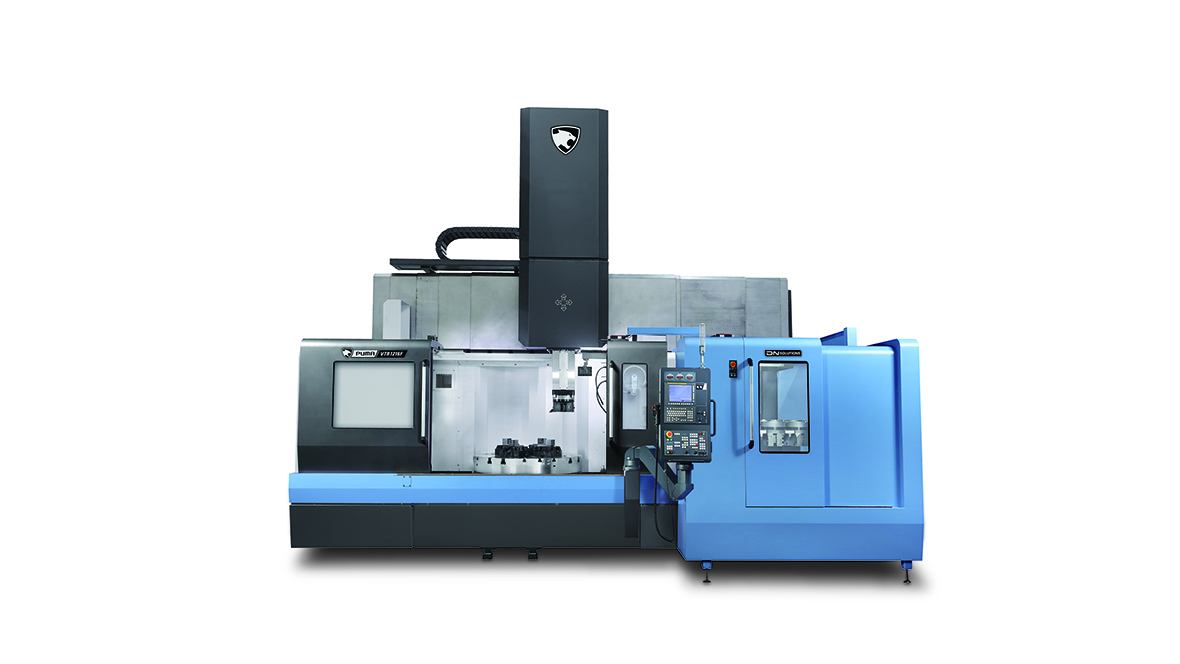

PUMA VTR1012FC / 1216FC

Automatic tool change by applying CAPTO tooling

CAPTO tool vertical / horizontal index

Fully enclosed splash guard with automatic open/close roof.

Applicable to wheel type magazine that can mount up to 60 tools
(PUMA VTR1012FC / 1216FC models only)

High pressure 150bar TTC can be applied. Easy chip removal and
High precision machining productivity

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TURRET

Rotary Tool r/min

DIMENSIONS

Length

Height

Width

Weight

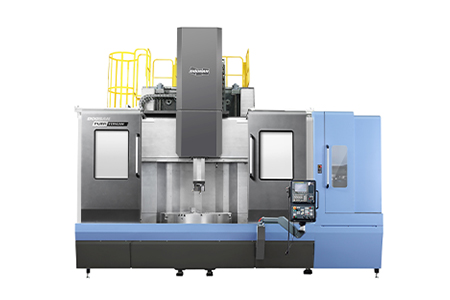

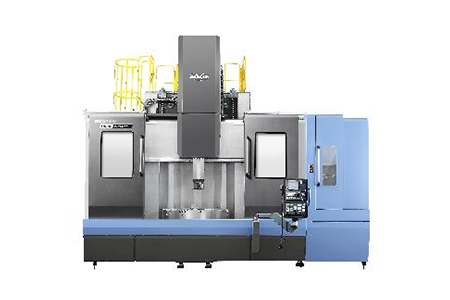

PUMA VTR1012F

-

1250 mm

750 mm

12 m/min

10 m/min

600 r/min

45/37 kW

12821 N·m

4970 mm

4950 mm

3147 mm

26000 kg

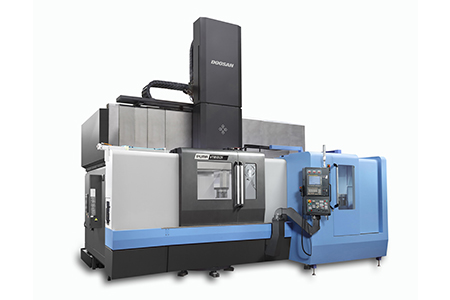

PUMA VTR1012FC

1250 mm

750 mm

12 m/min

10 m/min

600 r/min

45/37 kW

12354 N·m

5714 mm

4783 mm

4729 mm

26000 kg

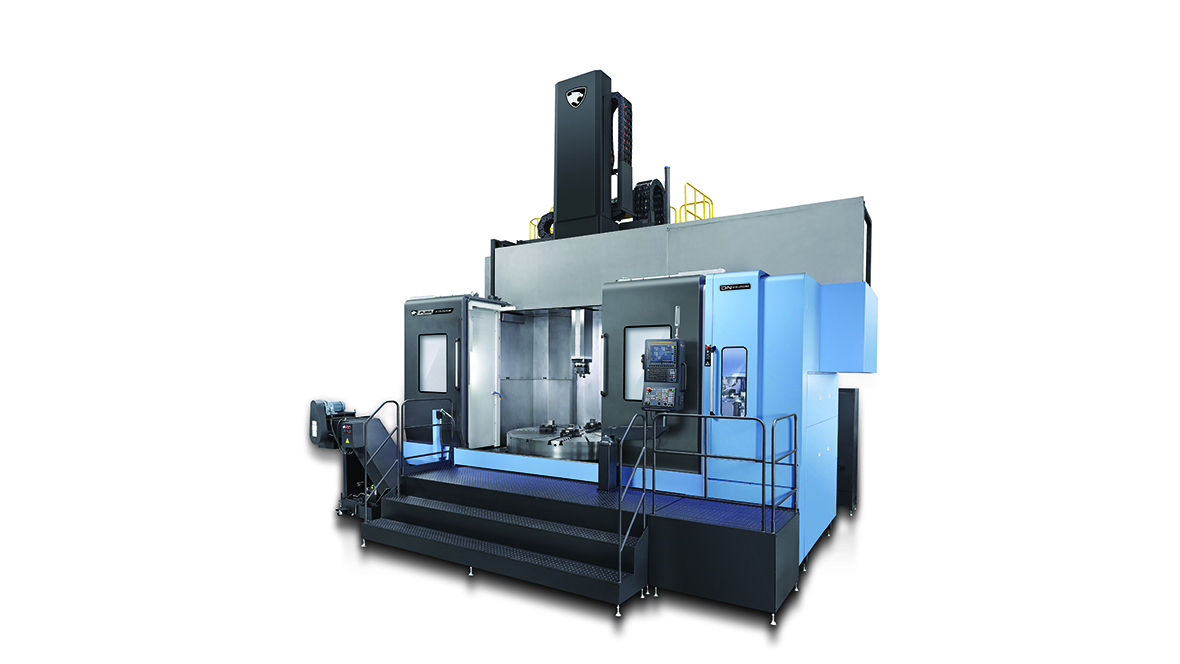

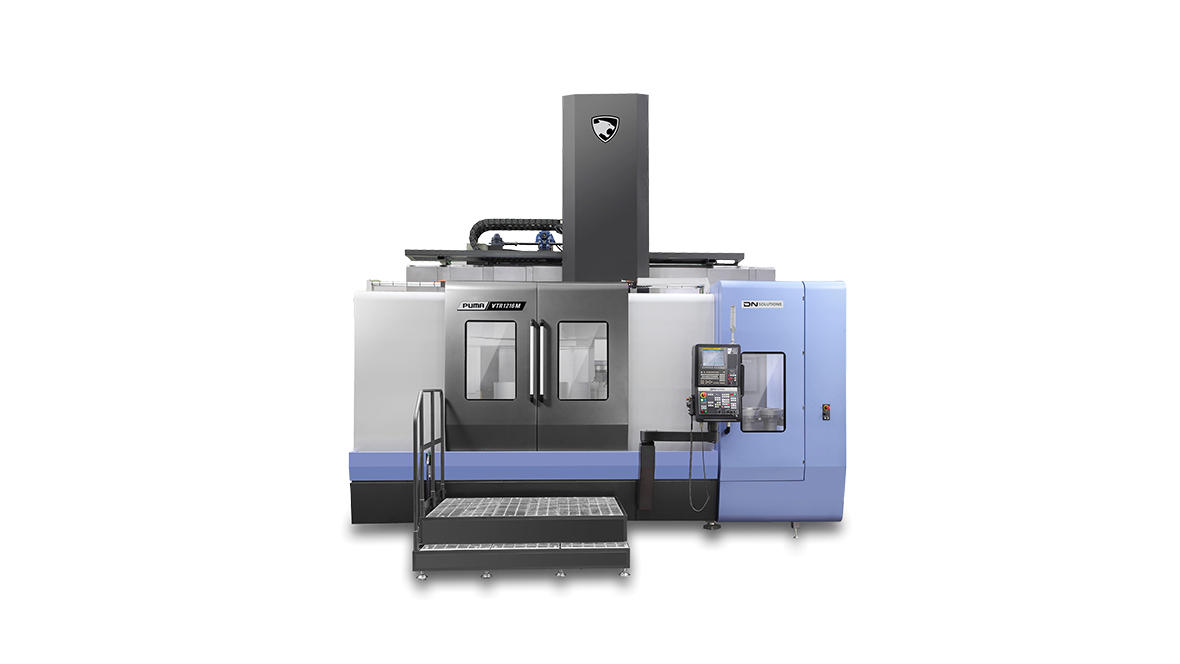

PUMA VTR1216

-

1600 mm

1250 mm

12 m/min

10 m/min

300 r/min

45/37 kW

20557 N·m

5265 mm

5650 mm

3824 mm

29500 kg

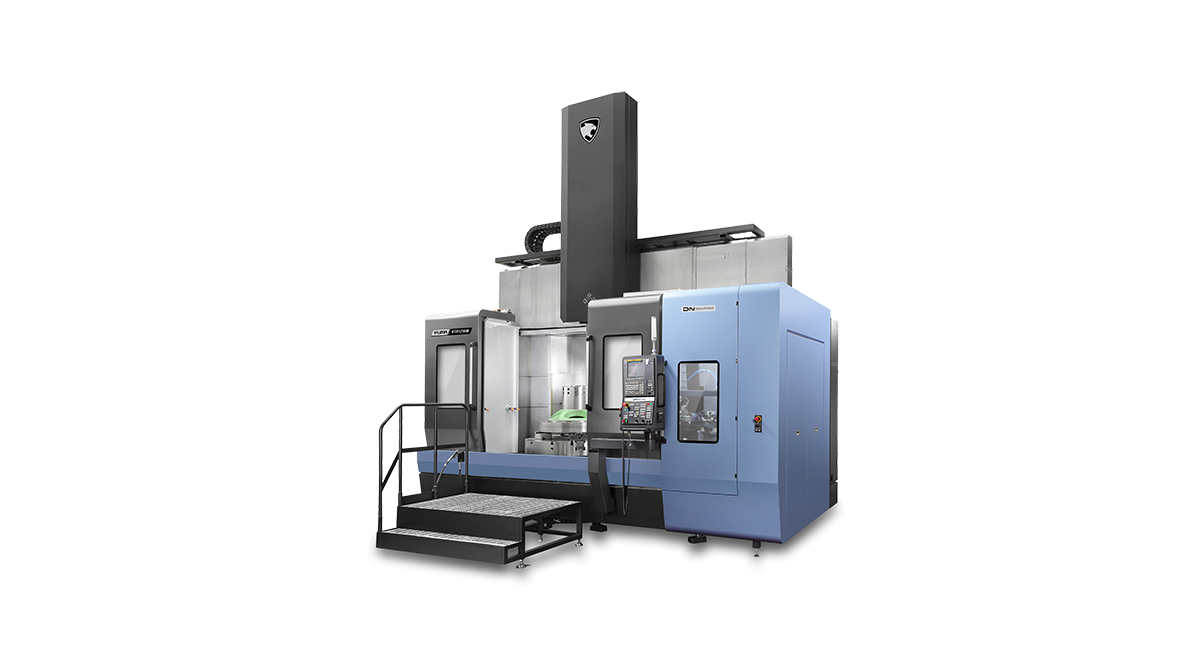

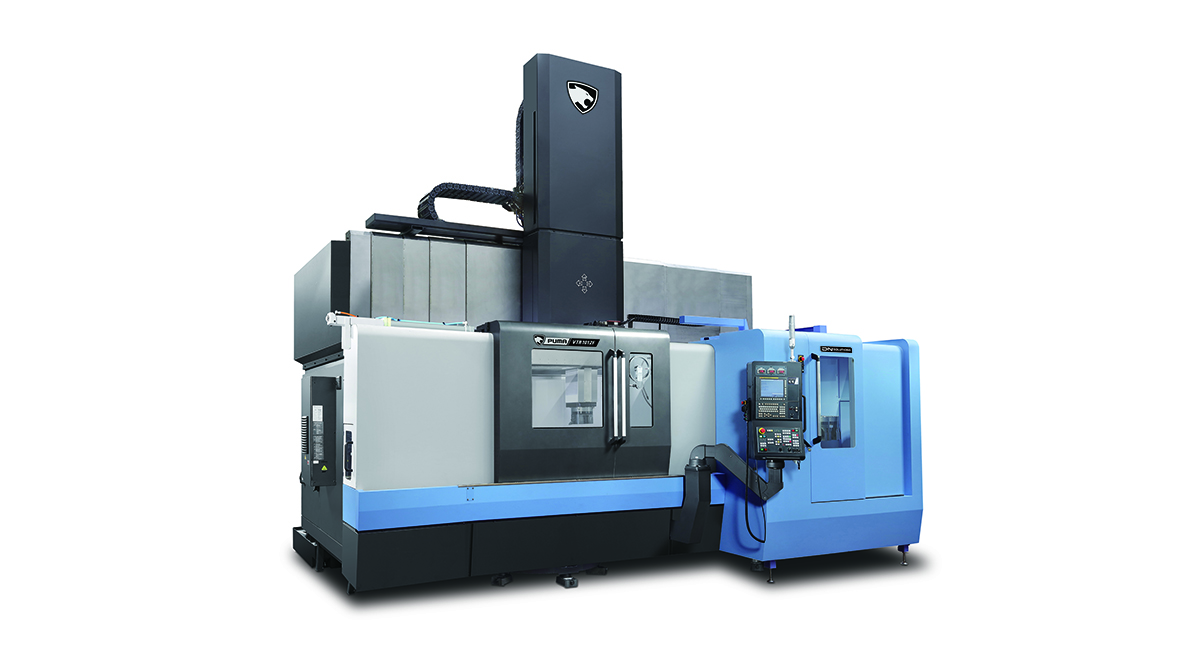

PUMA VTR1216F

-

1600 mm

950 mm

12 m/min

10 m/min

400 r/min

45/37 kW

20557 N·m

6260 mm

5583 mm

4706 mm

27500 kg

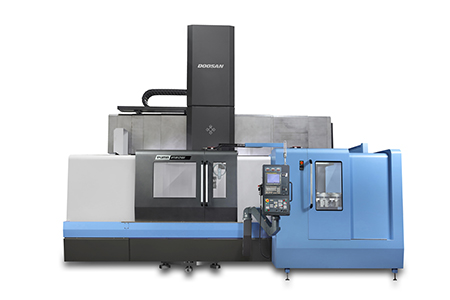

PUMA VTR1216FM

1600 mm

950 mm

12 m/min

10 m/min

400 r/min

45/37 kW

20557 N·m

5690 mm

5296 mm

4026 mm

28000 kg

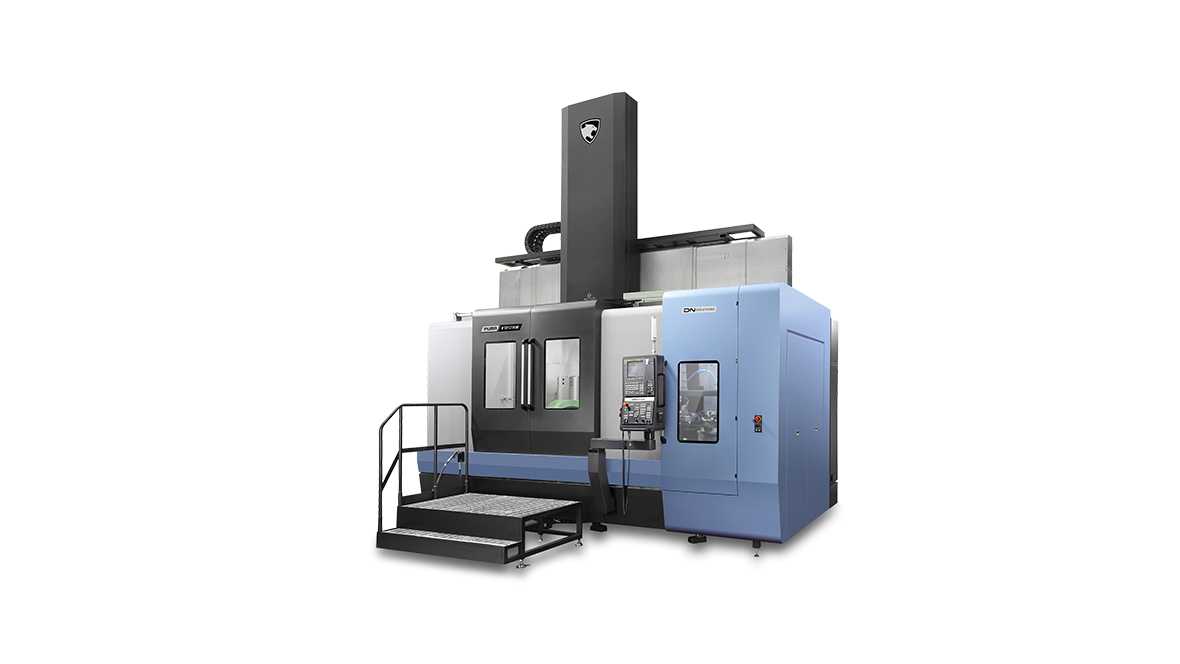

PUMA VTR1216FC

1600 mm

855 mm

12 m/min

10 m/min

400 r/min

45/37 kW

20557 N·m

6260 mm

5170 mm

5965 mm

27500 kg

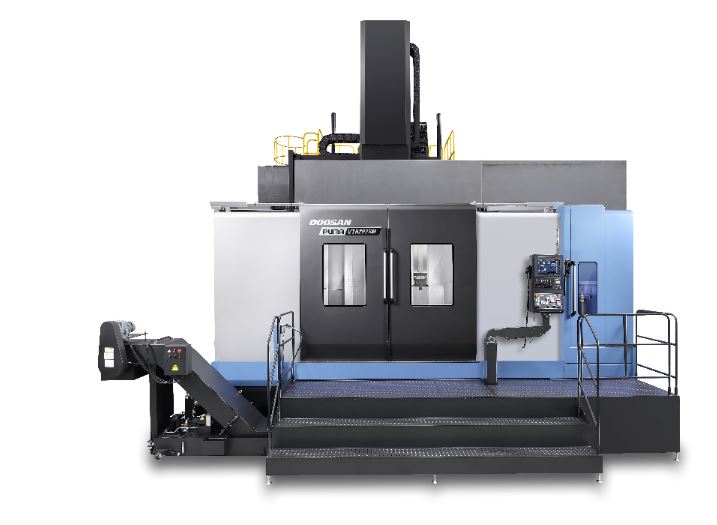

PUMA VTR1216M

-

1600 mm

1250 mm

12 m/min

10 m/min

300 r/min

45/37 kW

20557 N·m

5265 mm

5650 mm

3824 mm

30000 kg

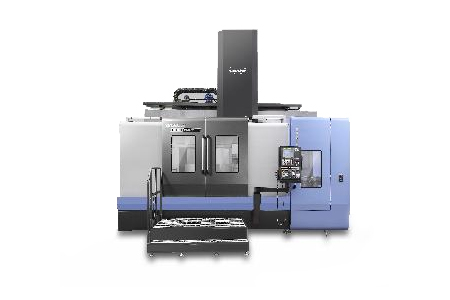

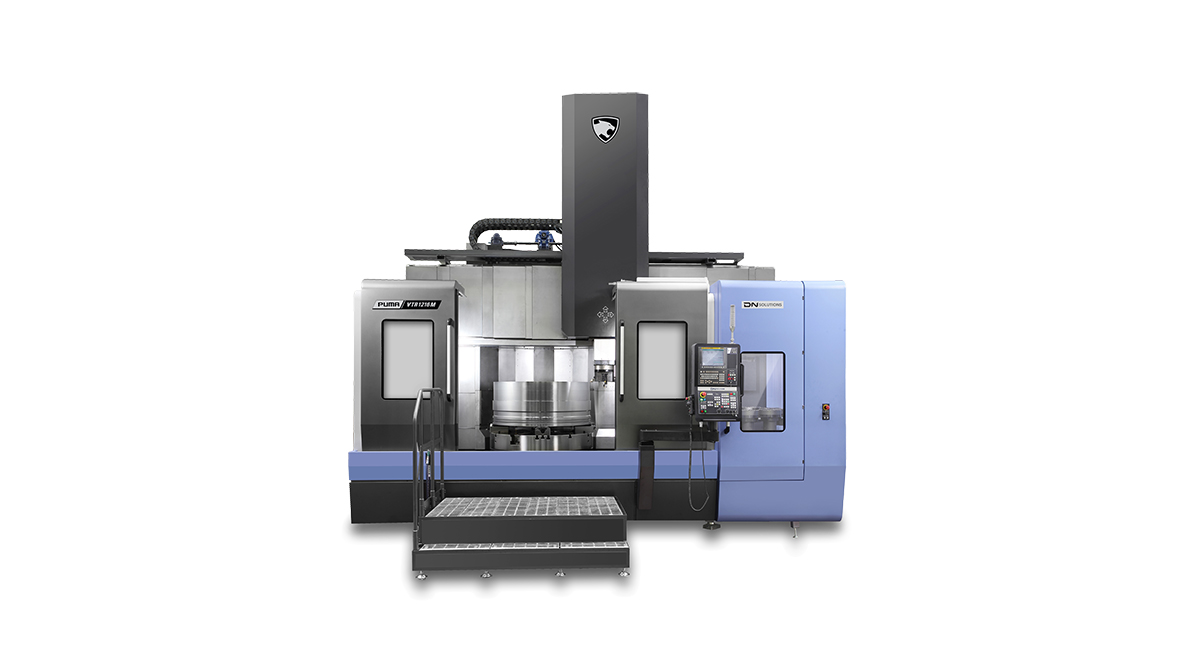

PUMA VTR1620

-

2000 mm

1800 mm

11 m/min

10 m/min

300 r/min

45/37 kW

24668 N·m

6500 mm

6345 mm

4250 mm

39000 kg

PUMA VTR1620M

-

2000 mm

1800 mm

11 m/min

10 m/min

300 r/min

45/37 kW

24668 N·m

6500 mm

6345 mm

4250 mm

40000 kg

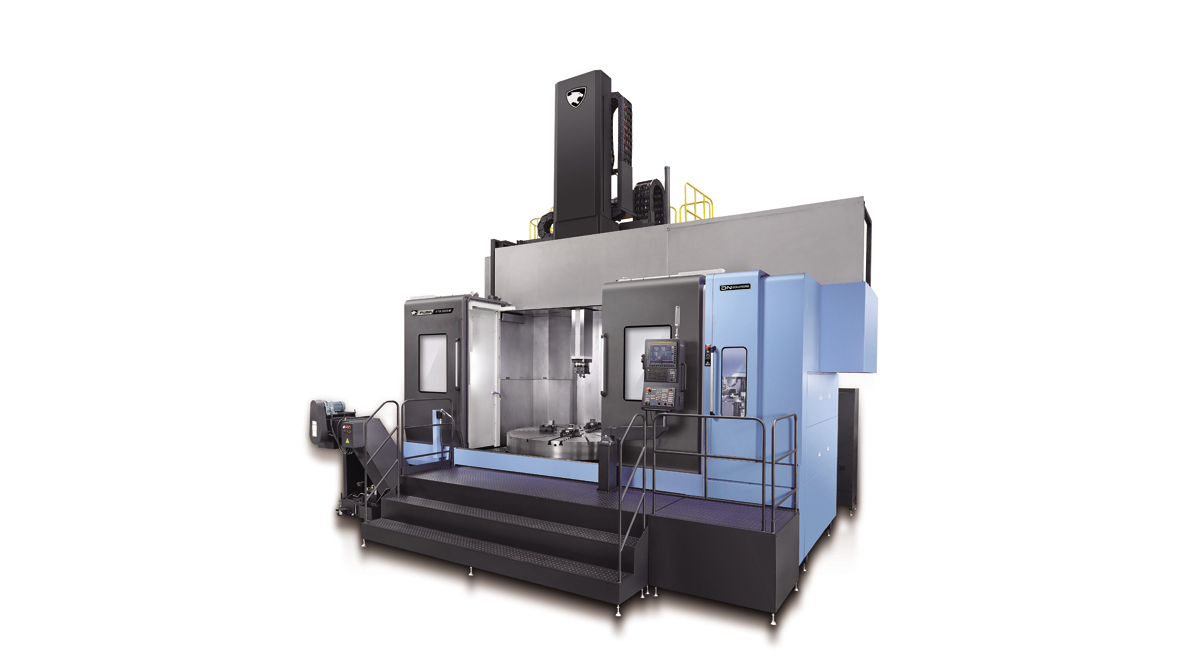

PUMA VTR2025

-

2500 mm

1900 mm

10 m/min

7.5 m/min

200 r/min

75/60 kW

41245 N·m

7900 mm

7550 mm

6000 mm

61700 kg

PUMA VTR2025M

-

2500 mm

1900 mm

10 m/min

7.5 m/min

200 r/min

75/60 kW

41245 N·m

7900 mm

7550 mm

6000 mm

61700 kg
