BM 2035U
X-Axis Travel Distance
3500 mm
Y-Axis Travel Distance
2050 mm
Z-Axis Travel Distance
800 mm

BM U series

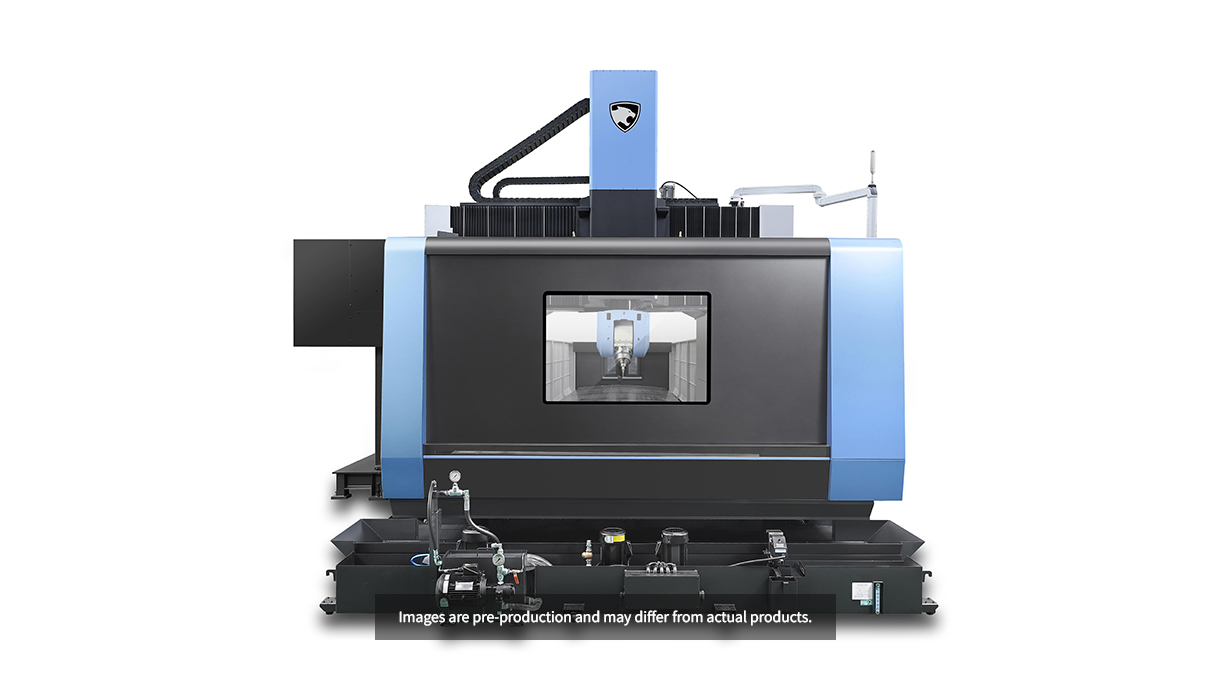

Accurate and rigid bridge type vertical machining center

Manufacturers that machine large, oversized dies and mold tools (i.e. press tools, injection told tools etc.), for the automotive sector need high performance and high-accuracy machine tools. As a result many have invested in our BM series of machines.

Easy to Operate
High Productivity
High Precision
Stability

Highlights

￿ Equipped with a high-speed, high-rigidity spindle and Universal head made by DOOSAN￿

15000 r/min(HSK A-100), 45.9/34 kW, 146.1 N.m

30000 r/min(HSK A-63), 90/78.5 kW, 49.9 N.m

Long-nose type ideal for deep pocket mold machining.

Equipped with a dual contact spindle as standard for high rigidity and minimum vibration

￿ Standard feed axis equipment for higher level of precision￿

All axes provided with a linear scale as standard

Ball screw bearings and nut cooling system.

￿ Machine’s structure and control are the ideal solution for high-quality mold cutting￿

Covers provided to minimize the impact of ambient temperature variations.

Thermal displacement compensation for spindle and structure included as standard.

￿

Product Specifications

  • These specifications are based on the global standard and may differ by region.
CAPACITY
Table to spindle nose
TRAVELS
X-Axis Travel Distance Y-Axis Travel Distance Z-Axis Travel Distance
FEED RATES
X-Axis Rapid Traverse Y-Axis Rapid Traverse Z-Axis Rapid Traverse
MAIN SPINDLE
Max. Spindle Speed Max. Spindle Power Max. Spindle Torque Tool Taper
TABLE
Table Length Table Width Maximum Workpiece weight
DIMENSIONS
Length Height Width Weight
BM 2035U
3500 mm 2050 mm 800 mm
16 m/min 16 m/min 12 m/min
15000 r/min 45.9 kW 146.1 N·m HSK-A100(STD)
3500 mm 1600 mm 10000 kg
5150 mm 5150 mm 11350 mm 40000
BM 2740U
2600 mm
4000 mm 2500 mm 800 mm
12 m/min 16 m/min 12 m/min
15000 r/min 45.9 kW 146.1 N·m
4000 mm 2500 mm 15000 kg
6011 mm 4995.5 mm 10984 mm 48700 kg
