Vertical 5-Axis Machining Centers

VCF series

Travelling Column VMC with Multiple Work Zones

16
Equipped with a 10-foot (3 metre) X-axis travel and a wide array of options,
the VCF Series provides manufacturers with a innovative and inspirational way to achieve multi-purpose productivity from a single machine.

Highlight

Easy to Operate

Spatial efficiency

Stability

Shorter Setting Time

High performance and high rigidity B-Axis structure

The high-rigidity Roller Gear Cam structure with the machine’s B-axis provides excellent cutting performance and durability.

Enhanced productivity across a wide range of applications

Inclusion of a rotary table, a center partition and a pick-up magazine – all help the user to more than double their machining efficiencies.

Multi-purpose machine tool capable of simultaneous machining using 3- to 5-axes

Simultaneous machining operation from 3- to 5-axes (based on X-axis of 2m and 3m): a real multi-purpose machine.

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

FEED RATES

X Axis Rapid Traverse

Y Axis Rapid Traverse

Z Axis Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

TOOL STORAGE CAPACITY

No. of tool station

DIMENSIONS

Length

Height

Width

Weight

VCF 850 II

2000 mm

850 mm

800 mm

40 m/min

40 m/min

40 m/min

12000 r/min

F_18.5/22, H_24/32 kW

F_204, H_126.3 N·m

ISO #40

2500 mm

870 mm

3500 kg

3795 mm

3205 mm

4440 mm

22000 kg

VCF 850L II

3000 mm

850 mm

800 mm

40 m/min

40 m/min

40 m/min

12000 r/min

F_18.5/22, H_24/32 kW

F_204, H_126.3 N·m

ISO #40

3500 (137.8") mm

870 (34.3") mm

3500 kg

3795 mm

3205 mm

5440 mm

24000 kg

VCF 850LSR II

3000 mm

850 mm

800 mm

40 m/min

40 m/min

40 m/min

12000 r/min

F_18.5/22, H_24/32 kW

F_204, H_126.3 N·m

ISO #40

3500 mm

870 mm

3500 kg

3795 mm

3205 mm

5440 mm

24000 kg

VCF 850SR II

2000 mm

850 mm

800 mm

40 m/min

40 m/min

40 m/min

12000 r/min

F_18.5/22, H_24/32 kW

F_204, H_126.3 N·m

ISO #40

2500 mm

870 mm

3500 kg

3795 mm

3205 mm

4440 mm

22000 kg

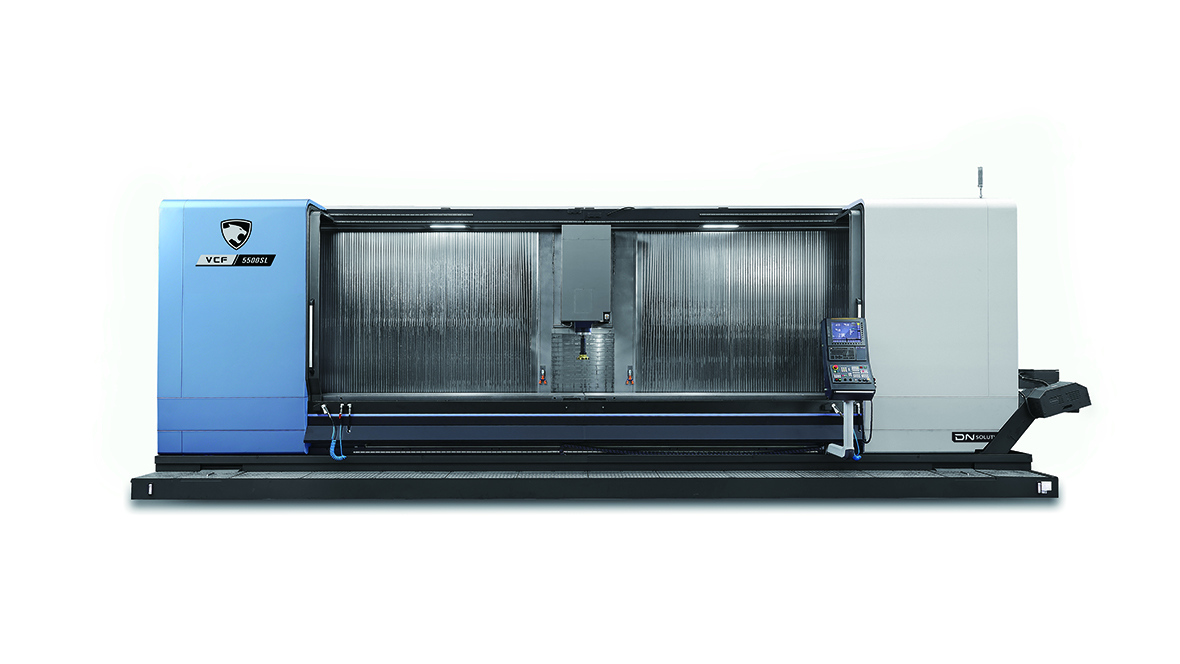

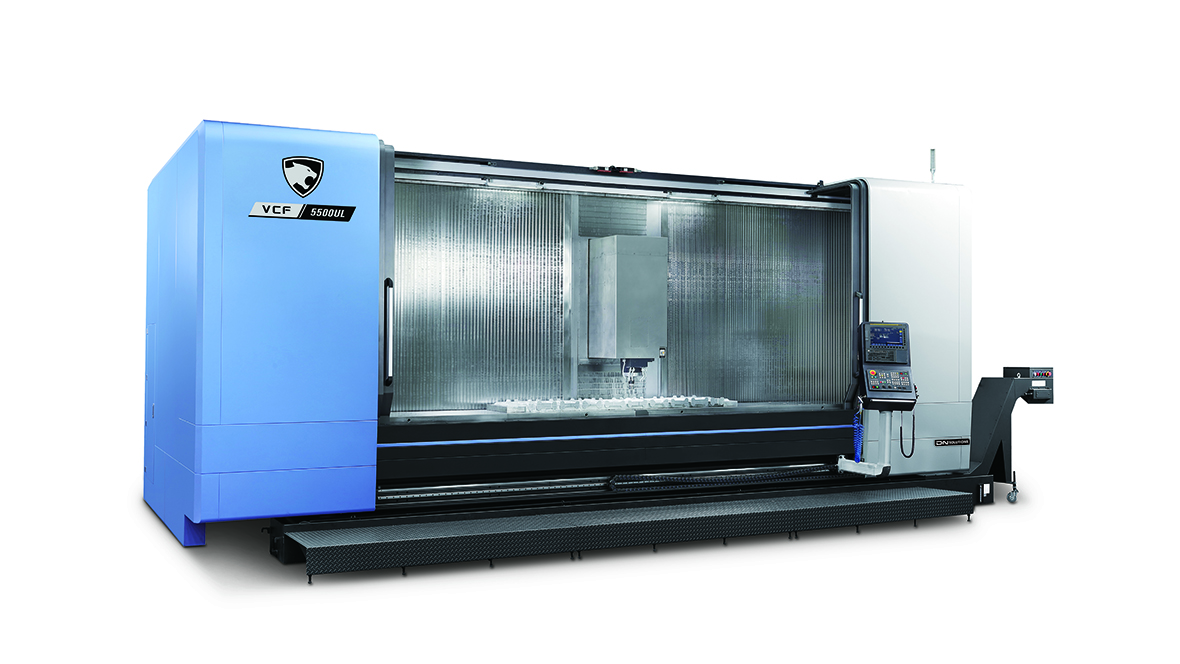

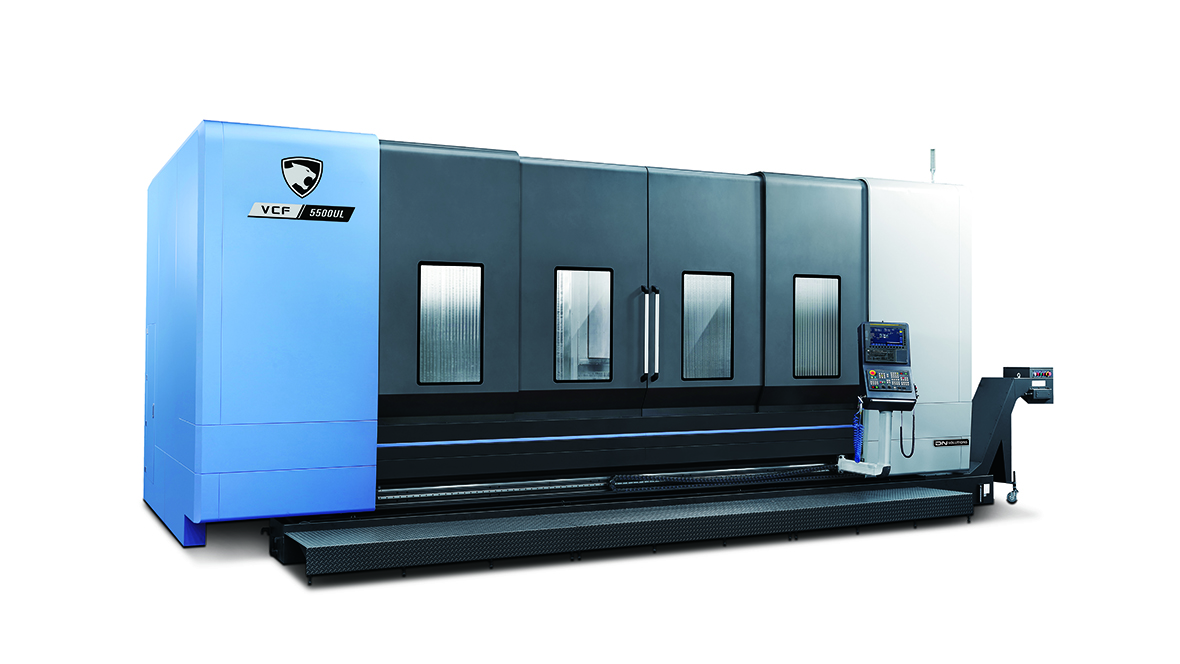

VCF 5500UL

5000 mm

550 mm

570 mm

30 m/min

36 m/min

46 m/min

12000 r/min

18.5/11 kW

117.8 N·m

-

5600 mm

550 mm

6000 kg

8410 mm

3420 mm

3571 mm

23000 kg

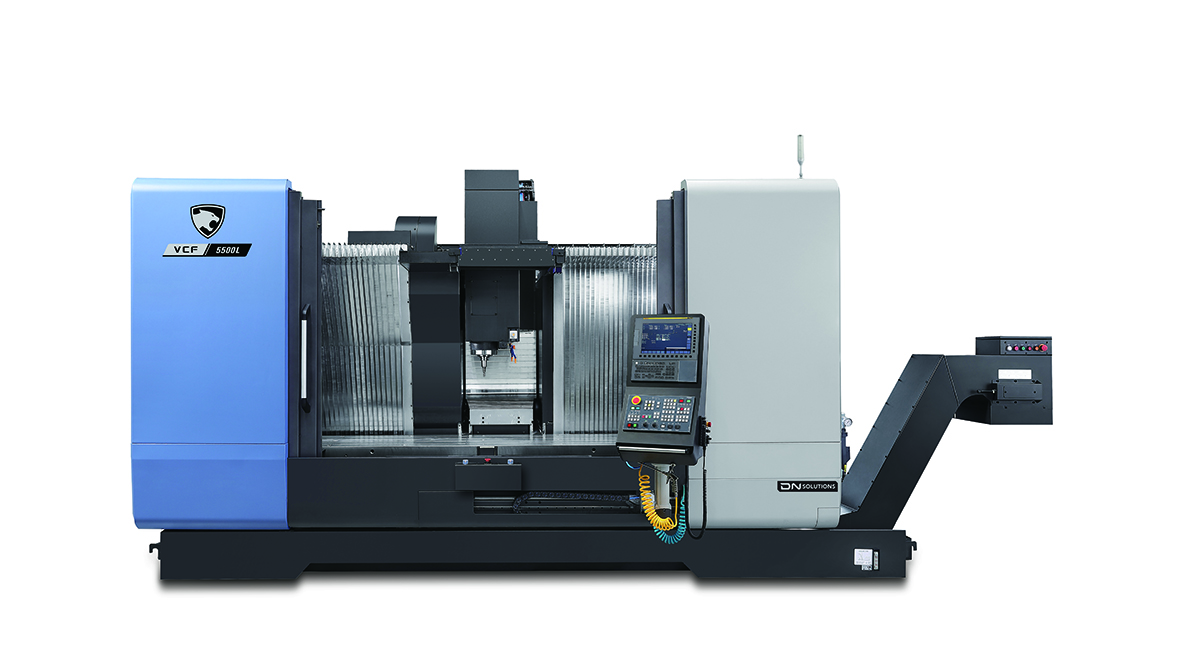

VCF 5500L

2200

550

510

42

42

42

12000

18.5

117.8

2500

3580

2000

30

4590

3030

2950

12000

VCF 5500SL

6200 mm

550 mm

570 mm

20 m/min

36 m/min

46 m/min

12000 r/min

18.5 kw

117.8 N·m

ISO #40

6600 mm

580 mm

7500 kg

35 ea

10160 mm

3420 mm

3571 mm

26000 kg
