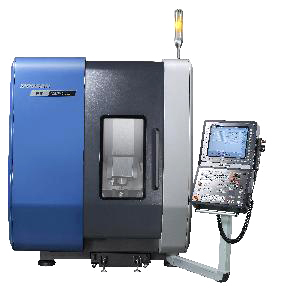

Vertical 5-Axis Machining Centers

FM 5AX series

High-speed gantry-structured Five-axis Machining Center

13
The high-speed, high-precision 5-axis machining center enables high-accuracy, full simultaneous 5-axis machining of aerospace and medical components as well as 3 + 2 and 4 + 1 machining of complex parts.

Highlight

Easy to Operate

High Precision

Multitasking Capability

Stability

Stable bed and strong structural design

Symmetrical gantry structure

Mineral cast bed

Stable cutting based on anti-vibration materials and a symmetrical gantry structure.

42000 r/min spindle speed

HSK-E40 interface

Heidenhain control for maximum reliability

Model Specifications

The suggested is a global standard specification and it may vary by country.

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

TABLE

Table Length

Table Width

Pallet Size

Rotary Table Diameter

Maximum Workpiece weight

TOOL STORAGE CAPACITY

No. of tool station

DIMENSIONS

Length

Height

Width

Weight

FM 200/5AX linear

200 mm

340 mm

300 mm

42000 r/min

12.6 kW

3 N·m

HSKE 40

200 mm

24 ea

2225 mm

2375 mm

1972 mm

7000 kg
