Quartz Grinding Horizontal Turning Center

XG 600/800

Quartz Ceramic Grinding Turning Center with 600 mm/800 mm Maximum Processing Diameter

12

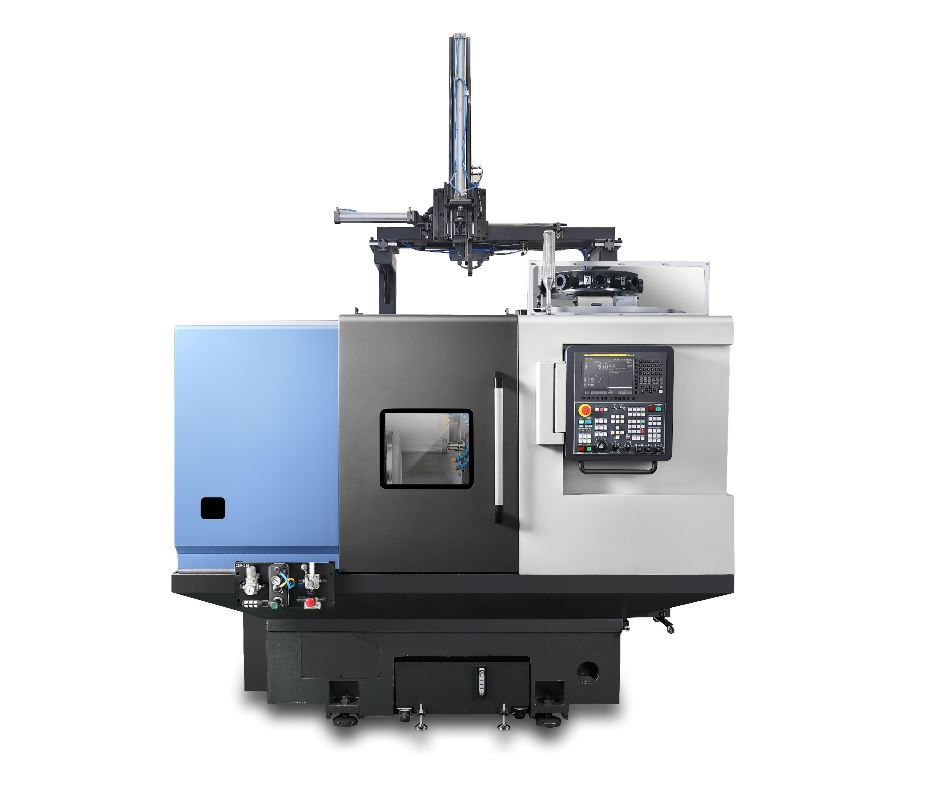

The Lynx XG 600/800 is a 12-inch horizontal turning center equipped with
a high-power motor and a spindle designed for high-precision grinding applications.

Highlight

Easy to Operate

Excellent Machining Capability

High Precision

Excellent Machining Capability

Equipped with a high-powered 14.1 Kw motor for improved roughing and finishing operations

Machining of quartz and ceramic materials optimized by the use of a grinding spindle with a maximum speed of 5000r/min.

High Precision Machining

Continuous cutting accuracy levels maintained, with a maximum displacement of between 17-20μm (*Temperature during test: 24.8~26.6℃)

Hole grinding capability increased by adopting C axis control function

Enhanced Durability and User Convenience

Structure enables easier handling/removal (quartz dust).

Spacious inner work area achieved by enlarging the space for door opening.

Improved access for easier tool change.

Grinding spindle equipped with phased command and display features

Model Specifications

The suggested is a global standard specification and it may vary by country.

CAPACITY

Chuck size

Max. Turning Diameter

Max. Turning Length

Distance between Columns

TRAVELS

X Axis Rapid Traverse

Z Axis Rapid Traverse

X Axis Travel distance

Y Axis Travel distance

Z Axis Travel distance

Rapid Traverse

MAIN SPINDLE

Max. Spindle Speed

Max. Spindle Power

Max. Spindle Torque

Tool Taper

DIMENSIONS

Length

Height

Width

Weight

Grinding Spindle

Max. Spindle speed

No. of tool stations

Tool shank type

XG 600

12 inch

600 mm

100 mm

10 m/min

20 m/min

400 mm

320 mm

500 r/min (2500 r/min OPTION)

2340 mm

1950 mm

1670 mm

2800 kg

5000 r/min

1 st

BT40

XG 800

12 inch

800 mm

10 m/min

20 m/min

500 mm

500 mm

500 {2500} r/min

2520 mm

1900 mm

1760 mm

3200 kg

6000 r/min

1 st

BT40 {BT50}
